Specifications
Place of Origin :
China
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor
Brand Name :
Mixer
Machine Type :
rubber parts trimming machine
Voltage :
380V/220V
Dimension(L*W*H) :
L1450xW700xH1000mm
Weight :
400
Warranty :
1 Year
Power (kW) :
5
Key Selling Points :
Long Service Life
Showroom Location :
Turkey
Applicable Industries :
Manufacturing Plant
Marketing Type :
Ordinary Product
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Online support
Packaging Details :
wooden case package
Supply Ability :
30sets per months
Price :
$4,500.00/sets >=1 sets
Certification :
CE
MOQ :
1set
Delivery Time :
20-30days
Payment Terms :
T/T
Description
Product Description

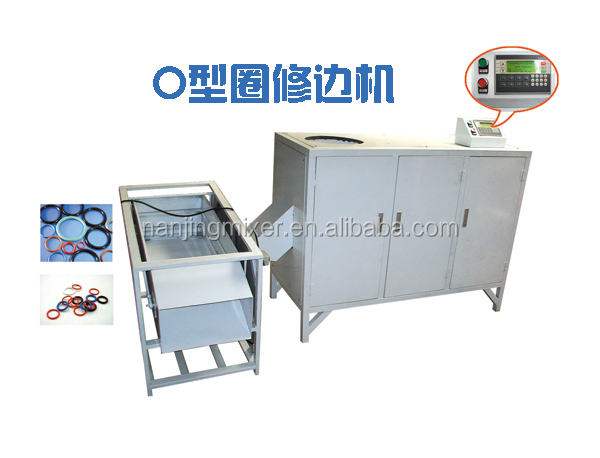

Rubber and Raw edge Deflashing Machine/Rubber Raw Edge demolishing machine/Rubber Raw Edge Demolishing Machine :

By using the theory of aerodynamic and centrifugal force, this machine is developed to make the rubber burrs and rubber products separated, applicable to all silicone, rubber, nitrile rubber, fluorine rubber seals and other kinds of molded rubber parts, such as O-Ring, rubber plug, gasket, rubber particles,Y-ring,solid miscellaneous special shaped rubber parts (rubber OD:3-80mm),a whole molded rubber product can be processed directly to remove its burr.

1. PLC programming control, touch-screen human-machine digital operation, store all kinds of production process, parameters of each product.

2. Precisely controlled demolition speed, operating performance is simple, intelligent, working sound is low, greatly reduces the operator fatigue. The machine has feeding position and working station, no need to stop machines every time when feeding, achieving continuous flow operation.

3. Power consumption is only around 3 KW per hour, more importantly, this machine can remarkably reduce labor force, saving workforce cost, greatly improve production efficiency, the production capacity of one this machine is equivalent at least 50 times of workers’ manual production.

Besides this machine won’t do deformation, damage, dirt to the processed rubber.

4. No need to change any mold or any parts for the machine.

Specification

Spin-trim type Rubber Deflashing machine:

Model

NMI-406

Dimension

L1450*W700*H1000mm

Spin-chamber capacity

22 Liter

Diameter of spin-chamber

406 mm

Max.spinning speed

10000 RPM (adjustable)

Operation time/batch

Depends on different rubber parts, Cycle time is adjustable

Motor

5KW

Variable-frequency Drive

7.5KW

Electronic control system

PLC+Touch screen control, automatic storage operating system.

Water spraying function

Automobile-grade automatic water spraying function.

Fresh air system:

Compressed air-cooling device

Transmission system

-Aviation aluminum standard V-ribbed pulley.

-Automobile standard American gates conveyor belts.

-High-speed bearings imported from Germany.

Working Noise

insulated for sound reduction

Dimension

L1450*W700*H1000mm

Weight

400 KGS

Vibration screen separator:

Application

Separation of burrs (unwanted flash) from the good rubber parts

Explosion-proof professional vibration motor

0.18 KW

Spring cushion

Special spring rubber combined buffer device

Replaceable mesh screens

10 PCS

Dimension

L1250*W600*H600mm

Weight

100 KGS

Finished Products
