Specifications
Place of Origin :
China
Brand Name :
Mixer
Type :
Bandknife Splitting Machine
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
2 years
Core Components :
Bearing, Gearbox, Motor, Gear
Voltage :
380V,220V,480V
Dimension(L*W*H) :
3900x1150x2100mm
Warranty :
1 year after shipment
Key Selling Points :
High-accuracy
Power (kW) :
11 kW
Weight (KG) :
3000 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey
After-sales Service Provided :
Engineers available to service machinery overseas
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Turkey
Certification :
CE
Marketing Type :
Ordinary Product
Packaging Details :
film wrap into container
Port :
Shanghai
Supply Ability :
60DAYS
Price :
$16,000.00 - $20,000.00/sets
MOQ :
1set
Delivery Time :
60days
Payment Terms :
T/T
Description

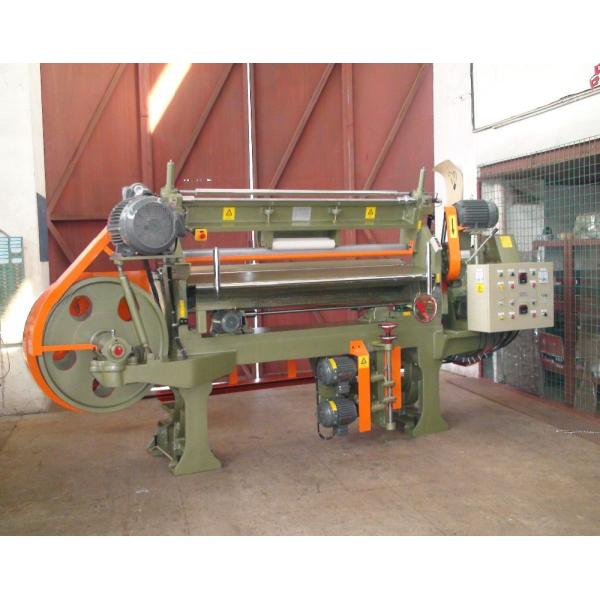

Bandknife Splitting Machine for EVA /PE/CR Foam Sheet

Product Description

EVA/PE/SBR/CR foam sheet Splitting machine:

Application:
The machine is applied to splitting the foamed rubber cork, foamed EVA, PE, etc. at a high speed and precision.
Features:
1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.
2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.
3. The splitting thickness is set by the digital switch, featuring high precision.
4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.
Specification

Item

Contents

Data

1

Slicing width

1800 mm

2

Slicing Thickness

0.3-120 mm

3

Slicing Hardness

10°-80°

4

Slicing Speed

10M-40 M/min

5

Slicing Precision

±0.05 m/m Or ±5%

6

Drive Power

11KW

7

Band knife Dimension

1.0×90×8100m/m

8

Machine Dimension

3900×1150×2100 mm

9

Equipment Weight

3200KG

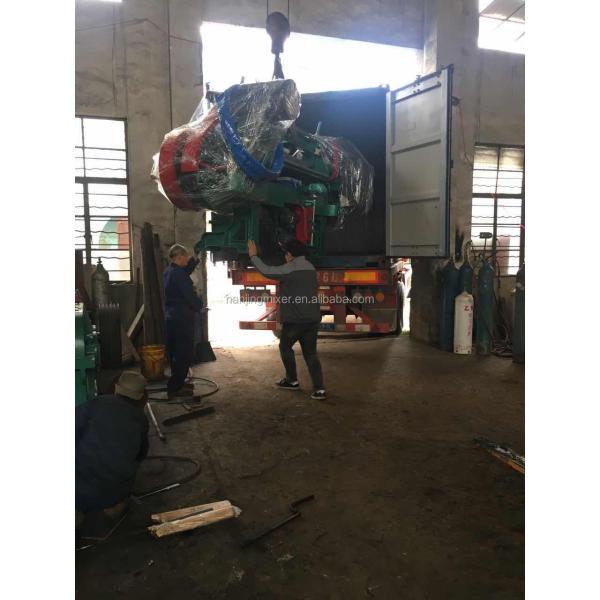

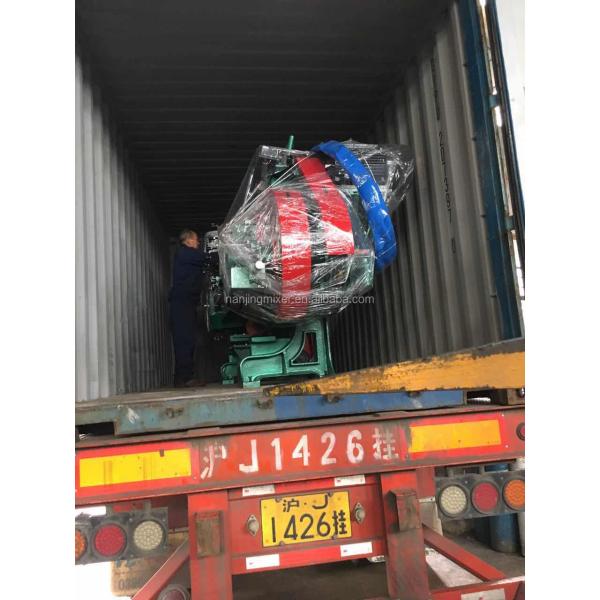

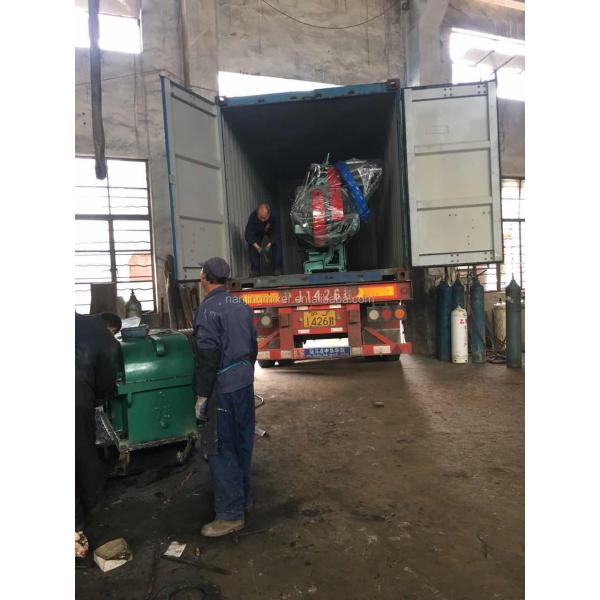

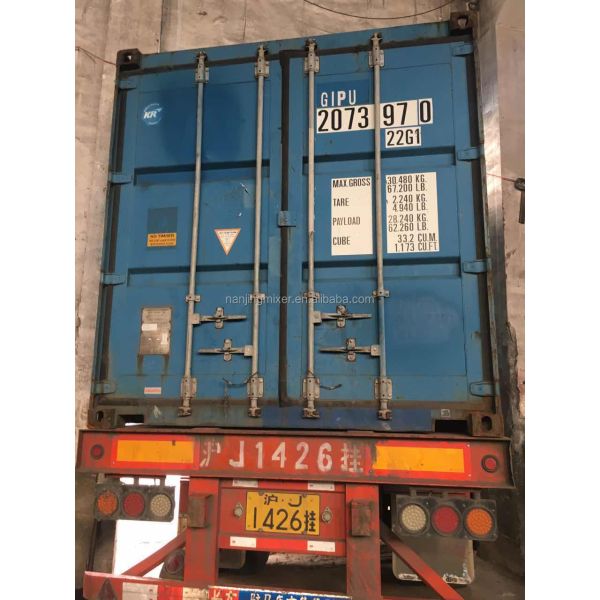

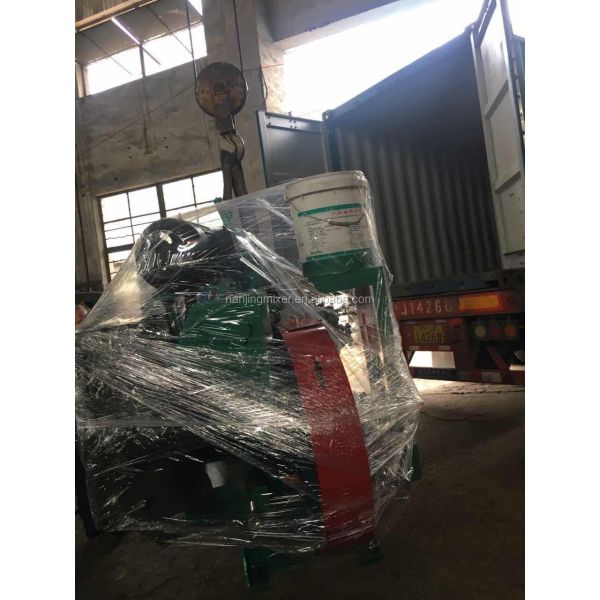

Packaging & Shipping
