Specifications
Place of Origin :
China
Warranty :
1 Year
Brand Name :
MIXER
After-sales Service Provided :
Online support, Video technical support, Engineers available to service machinery overseas
Extruder :
magnetic gasket
Packaging Details :
wooden case or plastic film packed in container
Port :
Shanghai
Supply Ability :
10 Set/Sets per Month
Price :
$10,000.00 - $100,000.00/sets
Description

Product Description

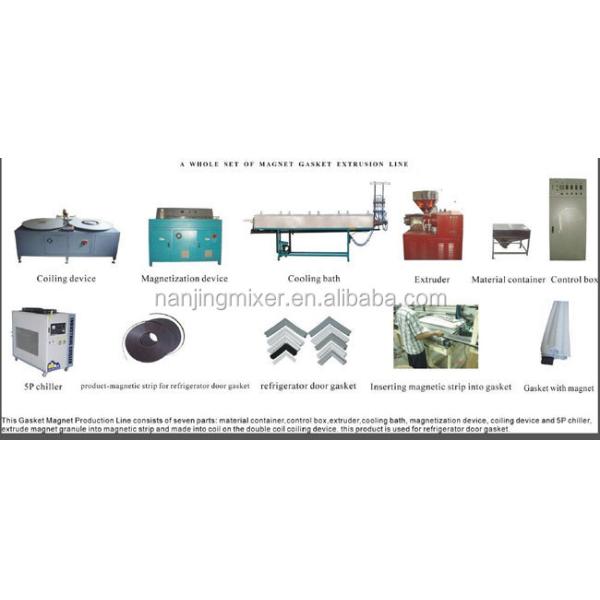

Refrigerator Magnet Door Strip Extruder Machine Line/refrigerator door strip extrusion line :

This magnet strip extruder line for producing magnetic strip used as refrigerator door gasket. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality, especially, the new machine is equipped with double roll machine and magnetizing system. By this machine, 10,000m2 magnetic strip (section 9x2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time.

Magnetic Gasket Extruder Machine Line for Refrigerator Door Strip at Affordable Cost

Specification

No.
Technical parameters:
1
Screw diameter
Ø60mm
2
Barrel material
Alloy steel
3
Length/Diameter
9
4
Compression ratio
1.7
5
Screw speed
0-24 r/min
6
Extruder motor power
15kw
7
Pulling motor power
0.55kw
8
Coiling motor power
0.37kw
9
Material hopper stirring power
0.37
10
Heating power
2.9kw
11
Water displacement
1.8m3/h
12
Cooling bath length
3 m
13
screw barrel temperature under
normal working condition
20-30℃
14
Installed gross capacity
25kw
15
Magnetize capacitance
6000UF
16
Magnetizing Voltage
500V
17
Magnetizing power
5KW
18
Normal extrusion capacity
6-10m/min
19
Magnetizing strength
600--700 GS
20
Water chiller power
5 HP
21
Weight
3000 kgs approx.
