Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
Specifications
Diameter of Roll(mm) :
160 mm
Length of Roll(mm) :
320 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Bearing, Motor, Pressure vessel, Gear
Cooling Mode :
water cooling
Condition :
New
Place of Origin :
China
Brand Name :
Mixer
Voltage :
as per customer's request
Dimension(L*W*H) :
1650xW980xH1500mm
Warranty :
1 Year
Key Selling Points :
Sustainable
Power (kW) :
7.5
Weight (KG) :
1200 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey
Max. gap between Rolls :
5mm
Fraction ratio of rolls :
1:1.27
Roll heating & cooling :
Through Universal Rotary Joints with internal spray
After Warranty Service :
Video technical support
Packaging Details :
film wrap into container
Supply Ability :
60DAYS
Price :
$6,000.00/sets >=1 sets
MOQ :
1set
Delivery Time :
60days
Payment Terms :
T/T
Description

Product Description

Used for rubber&plastic mixing,sheeting.

Features:
· Tailored structure,stable performance, easy to operate.
· There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.
· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
· Chilled alloy cast iron roll is abrasion resistant with long service life.
· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
· Perfect emergency stop device can ensure the safety of personnel and equipment.
· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
· Stock pan is easy to clean up with dislodging device.
· Human nature designed operating system reduces labor intensity.
· Modular structure offers various structures for customers’ option.
· The flexible design system can satisfy customers’ special design requirements within the shortest time.
· A load test running will be made to the assembled equipment in our company to save debugging time for customers.

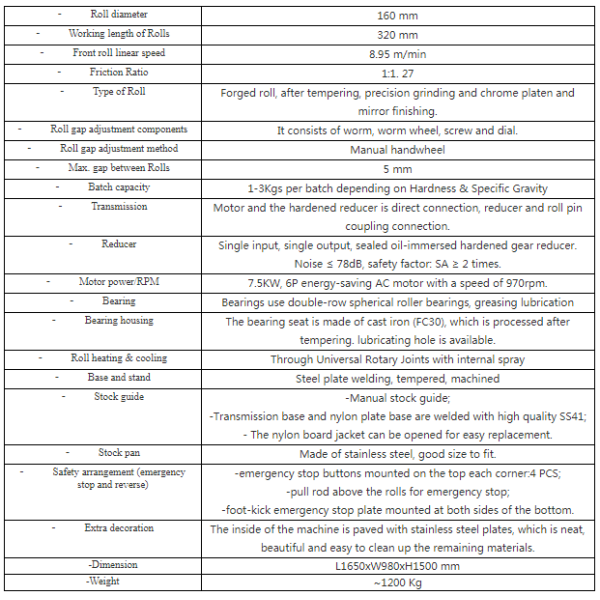

Specification

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill



Shipment moment

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing millRubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing millRubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing millRubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill

Customer visit

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing millRubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
