7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
Specifications
Diameter of Roll(mm) :
160 mm
Length of Roll(mm) :
320 mm
Roll Ratio(Front/Back) :
1.1.27
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
2 years
Core Components :
PLC, Engine, Bearing, Motor, Gear
Condition :
New
Place of Origin :
China
Brand Name :
Mixer
Voltage :
380v
Dimension(L*W*H) :
1650x980x1500 mm
Warranty :
1 Year
Key Selling Points :
Automatic
Power (kW) :
7.5
Weight (KG) :
1200 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey
Type :
Open Mixing Mill
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Certification :
CE
Price :
$5,800.00/sets >=1 sets
MOQ :
1set
Packaging Details :
film wrap into container
Delivery Time :
60days
Payment Terms :
T/T
Supply Ability :
60DAYS
Description

Product Description

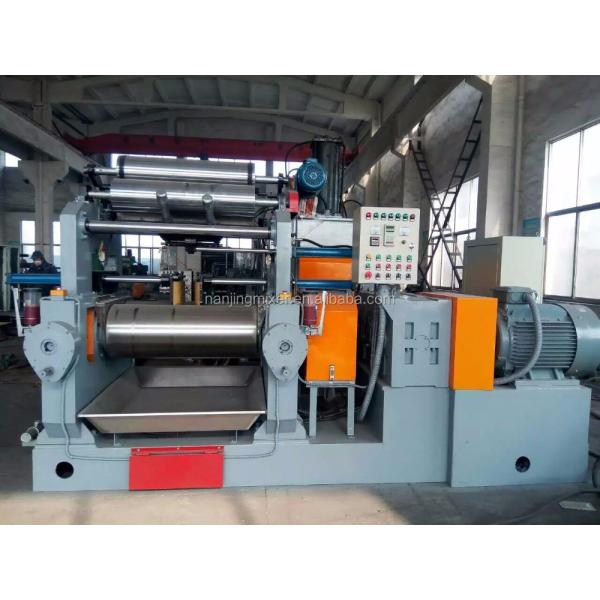

A Lab type rubber two roll open mixing mill is specially developed for rubber lab mixing purpose. Our this lab two roll open mill is designed and made at high standard level,harndened gear reducer,bearing system, motor and reducer are directly coupled connection, ensuring the operation sound is very low, and machine is durable to use. Many big tire factories such Yokohama and big rubber parts producers such as Zhongding Group (the biggest rubber parts producer in China) are using our lab type open mixing mill for their sample trial or development of new rubber products.

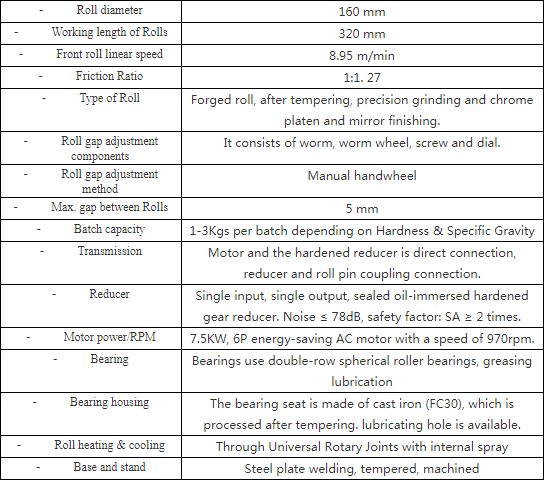

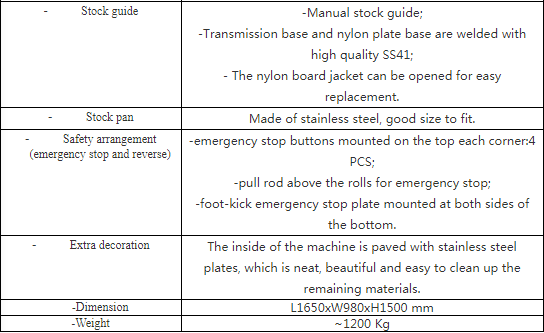

Specification

7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance

Shipment moment

7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance

Customer visit

7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance

7.5kW Lab Rubber Open Mixing Mill with Video Technical Support and Mixing Performance
