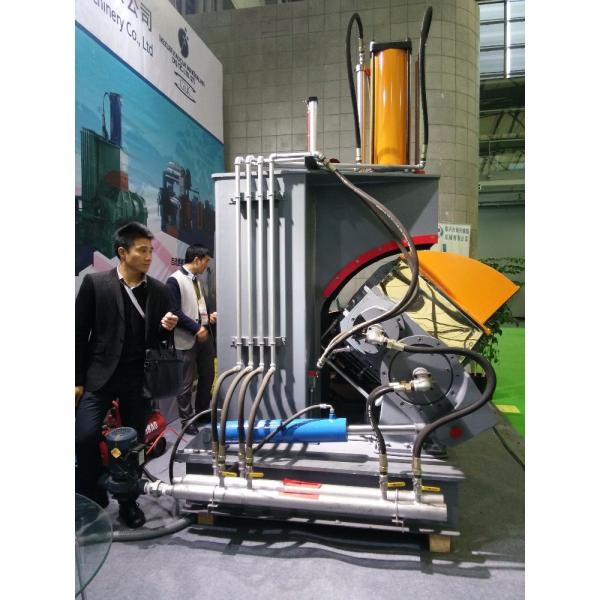

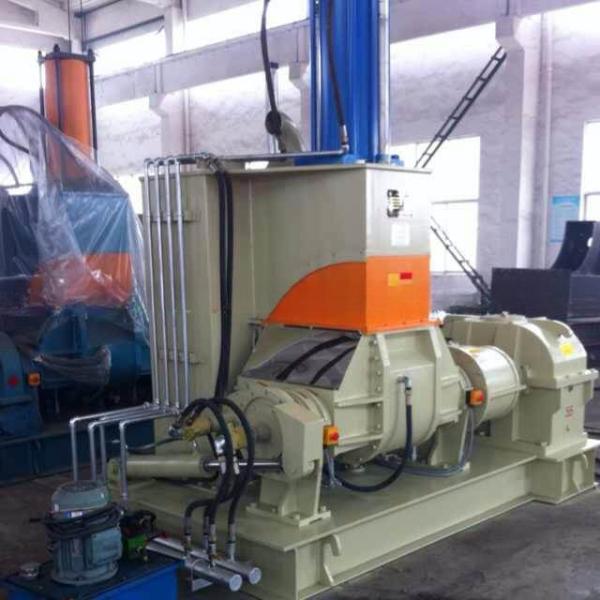

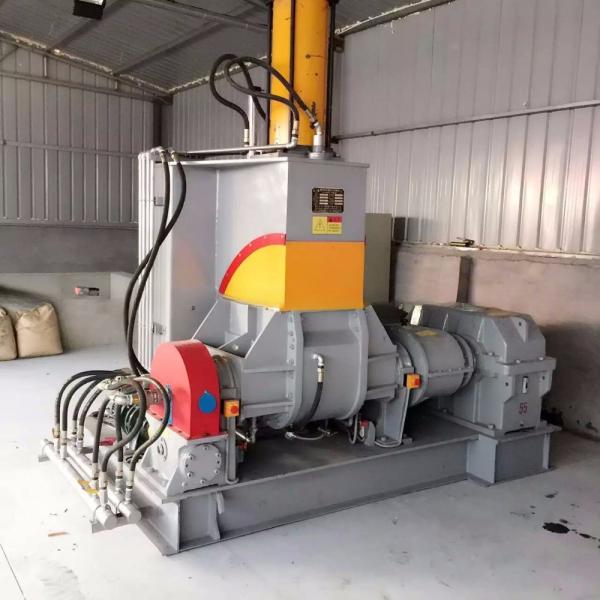

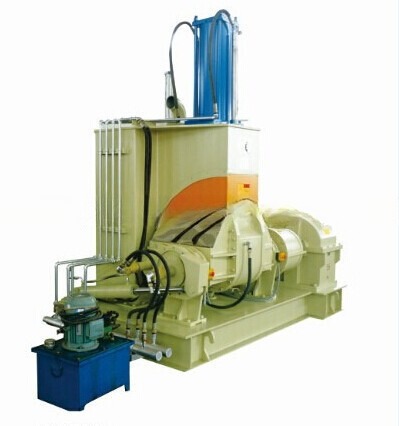

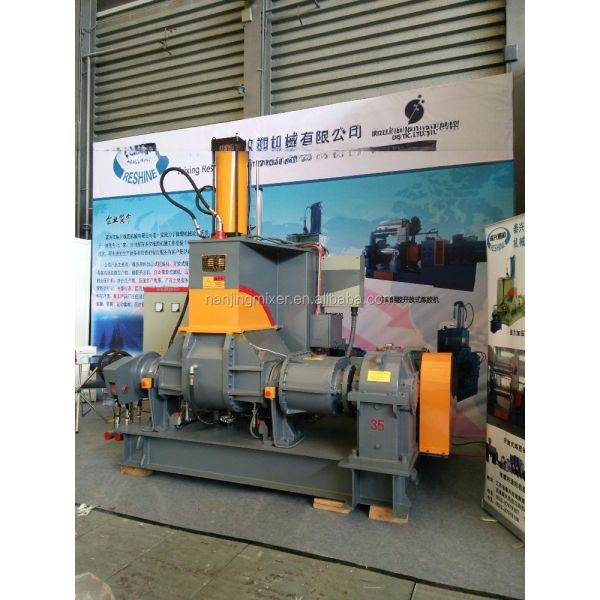

Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Rubber&plastic banbury mixing machine,kneader
Specifications
Place of Origin :
China
Condition :
New, New
Brand Name :
Mixer
Model Number :
X(S)M-110>
Voltage :
380V
Dimension(L*W*H) :
6000x2850x4450mm
Warranty :
1 year
After-sales Service Provided :
Field installation, commissioning and training, Engineers available to service machinery overseas
Type :
Rubber Mixer
Certtificate :
CE
Model type :
production and Lab type
Power :
250DC(240AC)
Weight :
29,000kg
Certification :
CE
Packaging Details :
film wrap into container
Port :
Shanghai or Ningbo
Supply Ability :
60DAYS
Price :
$10,000.00 - $99,999.00/sets
MOQ :
1set
Delivery Time :
60days
Payment Terms :
T/T
Description

Product Description

Application:

It is used for rubber plasticizing,stock mixing.
Structure features:
All of inside wall , discharge door, ram are of drill hole cooling, and rotor is of hollow spray cooling.
Contacting faces with stock such as mixing chambers inside wall, discharge door, ram are received hardening treatment.
Rotor bearing is of rolling bearing.
Axial seal of rotor is adopted with hydraulic seal, and with adjustable seal ratio.
Operating of the discharge door is driven by the double-rack tilting hydraulic cylinder and with plate-inserted or crank locking.
The transmission system may adopt a dual-output hardened-gear speed reducer, and used with gear coupling (joint) or the cross universal coupling drive, the transmission system is structured with stationary state, low noise, high efficiency and long-service life.

Specification

Model <Item>X(S)M-1.5>X(S)M-50>X(S)M-80>X(S)M-110>X(S)M-160>X(S)M-250/20>X(S)M-270>X(S)M-370>
(L) Total volume>1.5>50>80>110>160>250>250>395>
Filling factor>0.6-0.8>0.6-0.8>0.6-0.8>0.6-0.8>0.6-0.8>0.6-0.8>0.6-0.8>0.6-0.8>
(r/min) Rotor speed>0-80>4-40 (40)>4-40 (40)>4-40 (40)>4-40 (30)>20>4-40>6-60>
(MPa) Max ram pressure>Max0.3>0.27>0.37>0.58>0.5>0.24>0.52 0.6(Hydraulic)>0.54 0.6(Hydraulic) >
(KW) Main motor power>37AC>90DC(95AC) >200DC(210AC) >250DC(240AC) >355DC (355AC) >240AC >1250DC (1250/1500AC) >2x1250DC>
Over size >L>2,700>5,560>5,800>6,000>8,900>7,500>7,450>11,150>
W>1,200>2,700>2,500>2,850>3,330>3,900>4,140>4,960>
H>2,040>3,250>4,155>4,450>6,050>4,730>6,270>7,040>
(kg) Total weight>2,000>16,000>22,000>29,000>36,000>33,500>50,000>78,000>
