3800x1250X1600mm Twin Screw Extruder for Two-Stage High Foam EVA/PE Sheet
3800x1250X1600mm Twin Screw Extruder for Two-Stage High Foam EVA/PE Sheet
Specifications
Condition :
New
Plastic Processed :
PE, PP, ABS, PA, EVA, FRPP/PVC, ABS/PP, PE/PP, Other
Application :
Sheet
Screw Design :
Double-screw
Twin Screw Type :
Co-rotating Parallel Twin-screw
Screw diameter (mm) :
62.4 mm
Screw L/D Ratio :
38:1
Screw Speed (rpm) :
20 rpm
Showroom Location :
None
Place of Origin :
Jiangsu, China
Brand Name :
MIXER
Voltage :
380V
Dimension(L*W*H) :
3800x1250X1600mm
Power (kW) :
30
Weight :
6.5 KG
Warranty :
1 Year
Key Selling Points :
Energy saving
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Pressure vessel, Gearbox, Screw
Machinery Test Report :
Provided
Automatic Grade :
automatic
After-sales Service Provided :
Video technical support
After Warranty Service :
Video technical support
Certification :
CE,ISO
Packaging Details :
Plastic film packed in container.
Supply Ability :
10 Set/Sets per Month
Price :
$20,000.00/sets >=1 sets
Description

Product Description

This machine is used for rubber&plastic foam sheet or rubber foam sheet extrusion. Materials after mixing materials by dispersion kneader or two roll mixing mill, then go to the extruder for constant temperature mixing and extrusion filtration or sheeting.Applicable products: two-stage high foam EVA sheet, two-stage high foam PE sheet, high foam EPDM sheet SBR sheet for foaming, Neoprene diving material, EPDM sports track granulation.The machine features powerful feeding capability, high productivity and energy saving. It is also durable to use, low failure rate, and is easy to install and maintain.

Features:

1.Powerful and efficient feeding, good mixing effect, capacity is equivalent of 3 sets of two roll mill.

2.The single barrel is hydraulic drive to open, easy to move the barrel away from the screw for cleaning, no stickiness.

3.The screw speed is variable speed controlled by inverter.

4.The temperature control can adopt customer's existing heat source (steam or oil) to control the temperature of the die, barrel and screw through the control valve to heat exchanger. If the customer does not have a heat source, 3 sets mold temperature machines for temperature control are needed to install along with the machine.

5. The gearbox has a safety factor of up to 1.8 times. Cooling system is available with the gearbox.

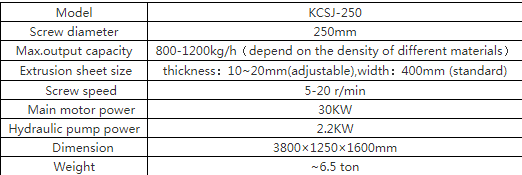

Specification

3800x1250X1600mm Twin Screw Extruder for Two-Stage High Foam EVA/PE Sheet

Detailed Images

3800x1250X1600mm Twin Screw Extruder for Two-Stage High Foam EVA/PE Sheet3800x1250X1600mm Twin Screw Extruder for Two-Stage High Foam EVA/PE Sheet
