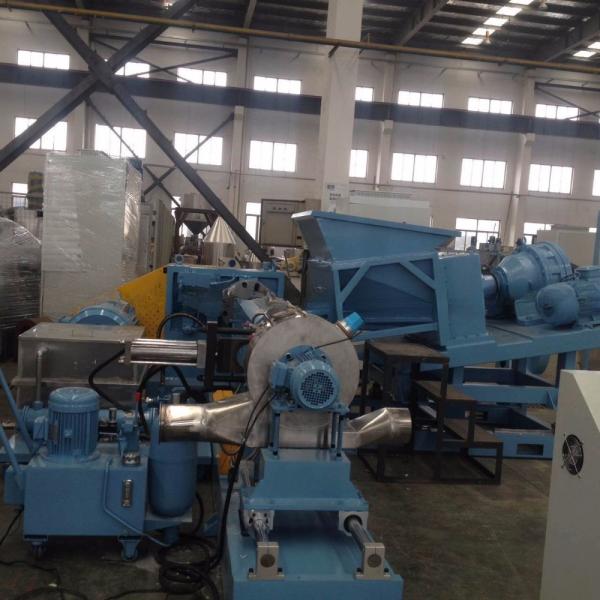

Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Single Screw Sulfur Masterbatch Compound Pelletizing Extruder for Consistent Results
Specifications
Plastic Processed :
HDPE, HDPE/PP, PA, PE/PP, ABS/PP, PP, FRPP/PVC, EVA
Condition :
New
Output (kg/h) :
200 - 300 kg/h
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Motor, Gear
Place of Origin :
China
Brand Name :
Mixer
Type :
Granulating Production Line
Screw Design :
Single
Voltage :
380V,220V,480V
Dimension(L*W*H) :
depend on machine model
Weight :
13000
Warranty :
1 Year
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Application :
cpe rubber/sulfur masterbatch pelletizing
Material :
CPE rubber/sulphur masterbatch
Capacity :
200-250 KG/H
Power :
45KW
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Marketing Type :
New Product 2020
Packaging Details :
film wrap into container
Port :
Shanghai
Supply Ability :
60DAYS
Price :
$20,000.00/sets >=1 sets
MOQ :
1set
Delivery Time :
60days
Payment Terms :
T/T
Description

Product Description

Extruder for Sulfur Masterbatch pelletizing/Extruder for CPE rubber compounding :

The high speed compound extruder production line is ideal for making EVA granules,master batches & Compounding PP,PVC TPR,CPE rubber,Sulfur masterbatch, low smoke zero halogen (LSZH) cable materials, ABS, LDPE, HLDPE, etc. You can use the master batches & Compounding for making: Shopping & Carrier bags, Woven Sack Multilayer Films, Water Tanks PE & PVC Cables, PVC Shoes, Cing Film, Anti Block P.P etc.
The production line combines materials mixing, conveying, feeding, extrusion granulation, water circulation cooling and air cooling sending as a whole line, automated continuous operation, the high effective production. Frequency converter used to control the rate of granulation to meet the speed of material requirements and savings power function.
Compact structure, occupies little space and can be installed flat.
Production sub-loop temperature control process, dispersion kneader, feeder, extrusion machine has its own heating and cooling system, control their temperature, according to process requirements. Feeding machine is of double screw propeller extrusion feeder, with the feature of strong material feeding, especially suitable for extrusion and granulation of mixed compound directly from kneader.
Barrel screw use 38CrMoAlA quality alloy steel, nit riding treatment, high hardness, wear resistance to corrosion.
Machine head adopt manually net changing organization, easy to operate.
Electronic control system uses advanced PLC control technology, and two inverters form, then mixing, feed, extrusion, palletizing and other multi-process machine according to the requirements of high accuracy, wide variable speed. And the line has the whole chain of machine technology, sound and light alarm functions; improve the reliability and safe operation. Granules palletized from this line are with the features of beautiful appearance, fine texture, well distributed.

Technical spefictionation:

Model
MD-100/35L
MD-120/55L
MD-130/75L
MD-165/110L
MD-200/110L
Extrusion capacity(KG/H)
150-200
200-300
400-600
500-800
600-1000
Screw Diameter
100mm
120mm
130mm
165mm
200mm
Screw L/D ration
12,16,20
12,16,20
12,16,20
12,16,20
12,16,20
Extruder motor (KW)
37
45
55
75/90
110/160
Temperature control stages
4
4
4
4
4
Feeding power(KW)
5.5
7.5
7.5
7.5/11
11
Die cutting power(KW)
2.2
2.2
2.2
2.2
2.2
Cooling system power(KW)
3
3
5.5
7.5
11
Vibrator sieve diameter (mm)
2.5/3
2.5/3
2.5/3
2.5/3
2.5/3
Spin drier motor (KW)
7.5
7.5
7.5
7.5
11
Hopper
1000L
1000L
1000L
1500L
2000L
Kneader model
X(S)N-35L
X(S)N-55L
X(S)N-75L
X(S)N-110L
X(S)N-110L
