Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Output (kg/h) :
1500 kg/h
Screw diameter (mm) :
150 mm
Screw Speed (rpm) :
4.5 - 45 rpm
Screw L/D Ratio :
16:1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Gearbox
Brand Name :
Mixer
Voltage :
380V
Dimension(L*W*H) :
3500x1580x1550mm
Power (kW) :
185
Weight (KG) :
8000 KG
Warranty :
1 Year
Key Selling Points :
Automatic
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Type :
Rubber Extruder
L/D :
(10-18):1
Screw Speed (RPM) :
45
Output (Kg/h) :
1200
Power(W) :
75-255kw
After-sales Service Provided :
Video technical support
After Warranty Service :
Video technical support
Certification :
CE
Price :
$50,000.00/sets >=1 sets
Description

Product Description

rubber sheet cutting Machine/silicone rubber extruder machine

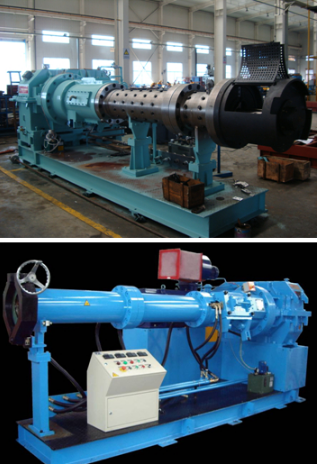

Rubber Extruder

Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type
The Rubber Extruder machine is widely used in rubber hose ,inner tube, rubber sheets,rubber seals,
tread rubber, and other rubber products' extrusion and formation.It also can be used to supply rubber
for calender.
We produce 2 types: hot feed rubber extruder and cold feed rubber extruder.

Specification

Model/Diameter (mm)
L/D
Power (KW)
Screw Speed (RPM)
Output (Kg/h)
XJD-60
(6-16):1
11-37
80
120
XJD-90
(10-20):1
30-75
60
350
XJD-120
(10-18):1
45-110
50
650
XJD-150
(10-18):1
75-255
45
1200
XJD-200
(10-18):1
185-355
28
2200
XJD-250
(4-12):1
185-500
26
3000
