EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
EVA Pellet Machine set Capacity 400-450 kg/hr
Specifications
Plastic Processed :
EVA
Condition :
New
Output (kg/h) :
400 - 450 kg/h
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
Gearbox, Motor, Srew, Barrel
Place of Origin :
China
Brand Name :
Mixer
Type :
EVA pellet production line
Screw Design :
Single
Voltage :
220V/380V/440V/460V
Weight :
19000
Warranty :
1 Year
Showroom Location :
Turkey, Viet Nam, Brazil, Thailand
Applicable Industries :
EVA products factory
Screw diameter (mm) :
150
Screw L/D Ratio :
12:1
Marketing Type :
Ordinary Product
Packaging Details :
film wrap into container
Port :
Shanghai
Supply Ability :
60DAYS
Price :
$20,000.00 - $120,000.00/sets
MOQ :
1set
Delivery Time :
60days
Payment Terms :
T/T
Description
Product Description

EVA Pellet Machine (EVA Pellet Production Line)

The EVA Pellets machine line includes materials mixing,conveying,feeding, extrusion, air cooling, silo as an entire production line.It is semi-automatic continuous operation with high effective production. Various output capacity of the EVA pellet production lines are available for options, feel free to contact us for more information.

The EVA pellets machine line includes the following equipment units:

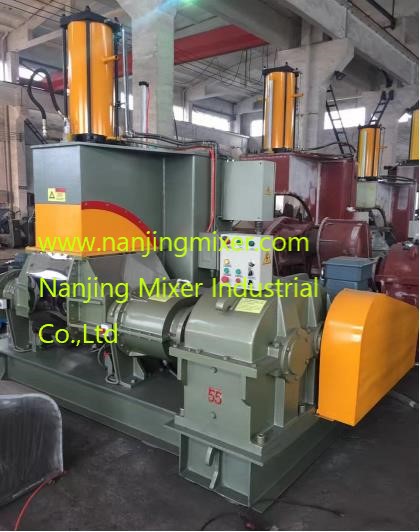

1.Dispersion Mixer : the dispersion mixer is used to mix EVA raw material, Rubber & plastic materials,and other additives,make the materials perfect dispersion and well distributed before feeding to the Extruder,ensuring good quality of final EVA pellet to be produced.

EVA Pellet Machine set Capacity 400-450 kg/hr

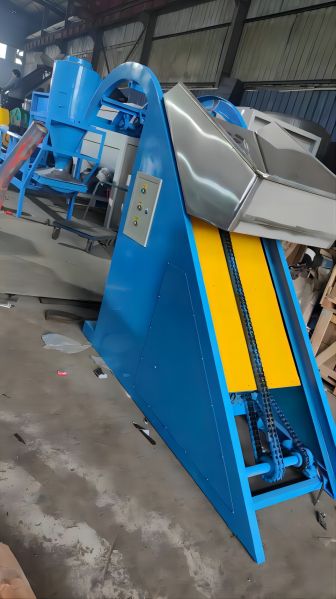

2. Bucket conveyor : This bucket conveyor transfer the ready mixed material to the feeding hopper of the EVA extruder (EVA pellet formation machine).

EVA Pellet Machine set Capacity 400-450 kg/hr

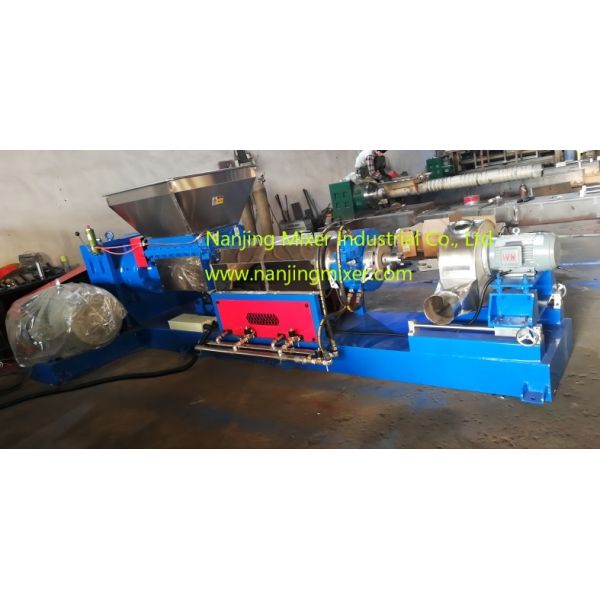

3. EVA Extruder : After conveyor transfer EVA mixture to the extruder,the EVA extruder will make the EVA pellets.

EVA Pellet Machine set Capacity 400-450 kg/hr

4.Centrifugal cyclones with air blower: To cool down the EVA pellets.

EVA Pellet Machine set Capacity 400-450 kg/hr

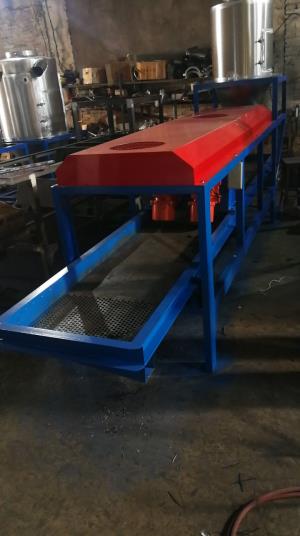

5. Vibrating screen : The vibrating screen will further cool down the EVA pellets after cyclones,and screen out the powder or unqualified sizes.

EVA Pellet Machine set Capacity 400-450 kg/hr

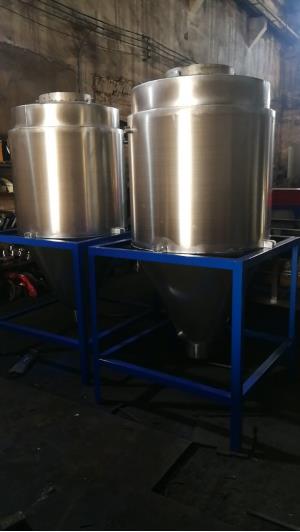

6. Stirring Machine:It can make the EVA pellets with colors mixed evenly, used as storage bin, and ready for final package.

EVA Pellet Machine set Capacity 400-450 kg/hr
