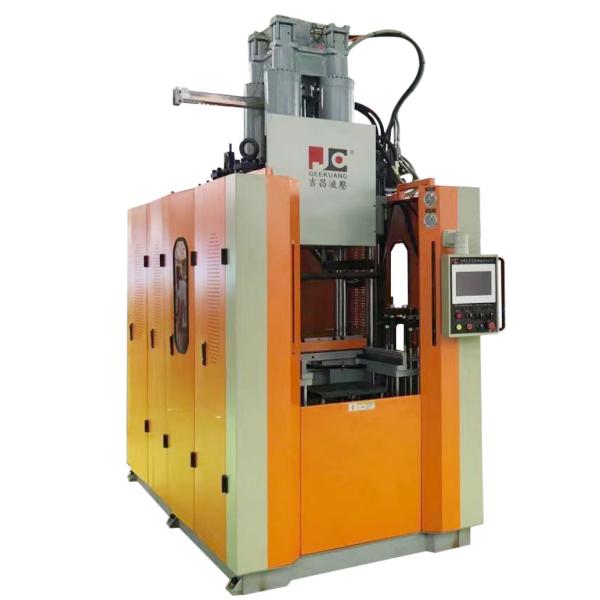

Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Specifications
Model NO. :
JC-RV300
Structure :
Vertical
Color :
Customized
Mold Open Type :
Automatic
Injection Type :
Fifo
Transport Package :
Bubble Film Packaged&Loaded in a Whole Container
Specification :
300T
Trademark :
Geekung
Origin :
China
HS Code :
847780
Production Capacity :
1000 Sets/Year
Brand Name :
Geekung
Payment Terms :
T/T
Description

Main application field for the Silicone Injection Compression Press:

Silicone Injection Compression Press is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
Vertical Structure Silicone Injection Compression Press with Automatic Mold Open Type----CE safety standard

Vertical Structure Silicone Injection Compression Press with Automatic Mold Open TypeVertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
Features for our Silicone Injection Compression Press:
  • Ergonomic low bed structure for easy opeartion
  • Advanced proportional pressure&speed control from PLC
  • Automated de-moulding and handling devices are optional
  • Option to make silicone material
  • Customized specifications are available
  • Vertical/Horizontal structure with FIFO type injection systems


Technical Specification:
Model XLB-V200T XLB-V300T XLB-V400T XLB-V500T
Clamping force(ton) 200 300 400 500
Stroke(mm) 500 500 600 600
Platen size(mm) 600x600 700x700 700x800 800x850
Main piston diameter(mm) 355 450 500 560
Max.platen gap(mm) 550 550 700 700
Min. Mold thickness(mm) 60 60 100 100
Core Lifter stroke (mm) 200 200 250 250
Injection unit
Injection volume (CC) 2000 3000 4000 5000
Injection pressure (Mpa) 220 220 205 205
Screw diameter(mm) 45 45 55 55
Nozzle aperture(mm) 6 6 7 8
Others
System pressure (Mpa) 21 21 21 21
Horse Power(HP) 15 20 25 30
Heater power (KW) 19 22 27 31
Total power(KW) 36 40 52 58
Weight(Kg) 7200 9300 11700 14700
Dimension(LxWxH:mm) 2700x1200x3600 3100x1300x4000 3300x1400x4500 4000x1600x4500

Notes: the table only lists out the normal popular standard models, more special larger Silicone Injection Compression Press can be customized to order.
Exhibition

Vertical Structure Silicone Injection Compression Press with Automatic Mold Open TypeVertical Structure Silicone Injection Compression Press with Automatic Mold Open TypeVertical Structure Silicone Injection Compression Press with Automatic Mold Open Type
