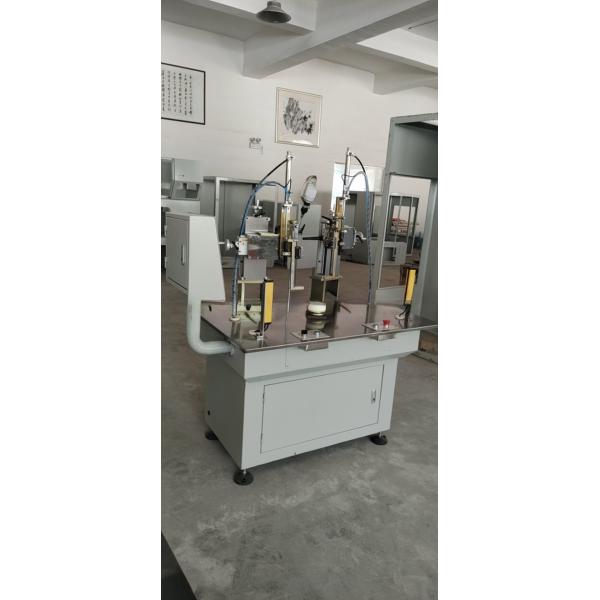

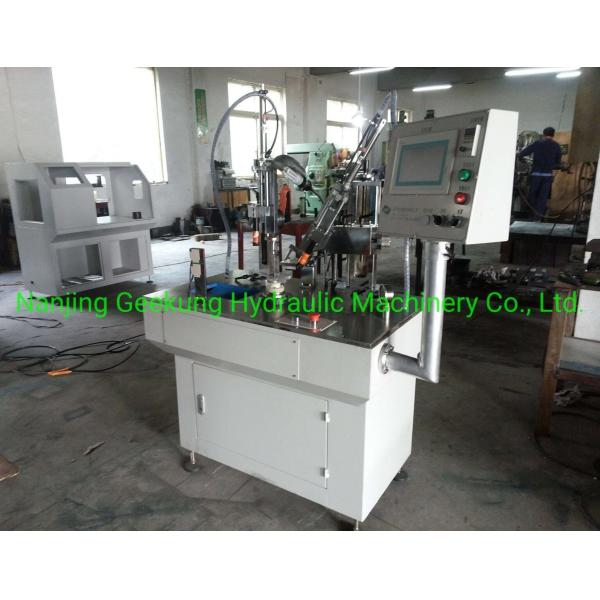

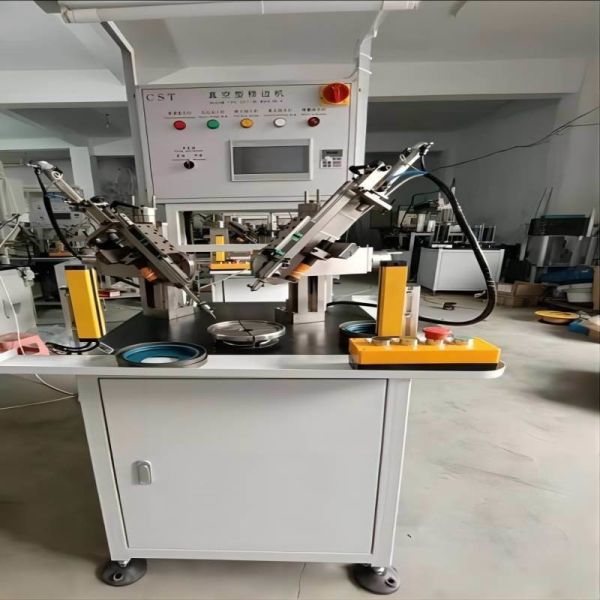

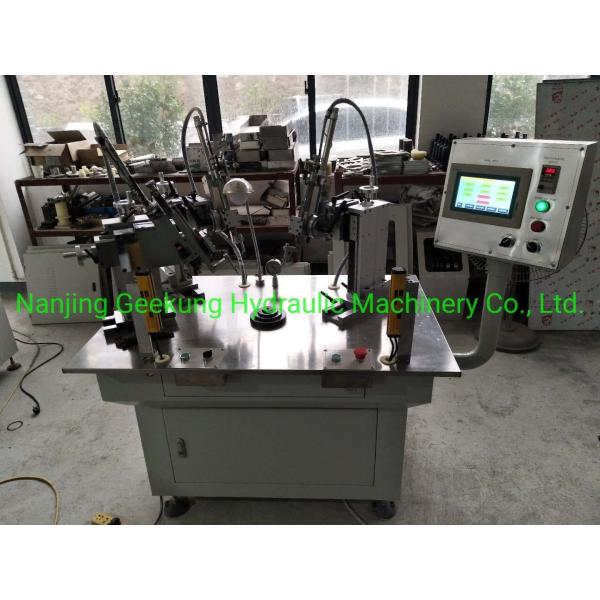

1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
Specifications
Model NO. :
VRT-2
Structure :
Horizontal
Color :
Customized
Vacuum System :
Yes
Transport Package :
Standard Export Wooden Case Package
Specification :
VRT-2
Trademark :
Geekung
Origin :
China
HS Code :
847780
Production Capacity :
1000 Sets/Year
Place of Origin :
China
Brand Name :
Mixer
Certification :
CE
MOQ :
1set
Packaging Details :
wooden case package
Delivery Time :
20-30days
Payment Terms :
T/T
Supply Ability :
30sets per months
Description
Application:
Rubber Cup Seal Trimming Machine is used for kinds of rubber skeletons, rubber oil seal,rubber o ring, rubber packing cup, kinds of rubber washer and round rubber parts.
This Vacuum Rubber Seals Trimming Machine is used to trim rubber oil seal,rubber seal cup or various round rubber parts,etc,it is adaptable for kinds of rubber or silicone parts. It's application is very wide,seal diameter ranging from 10-300mm can be trimmed by this, even more bigger size can be customized.
Our vacuum rubber trimming machine features reliable&precise performance, easy adjustment and durable life.



Main technical parameter for the Rubber Cup Seal Trimming Machine:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle: 0-3000r/min
cutting degree:-10°~100°
cutting range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength):2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm
Packaging & Shipping

1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure
Components making brand&origin:

No. Items Maker Origin
1 Inverter DELTA Taiwan, China
2 PLC DELTA Taiwan, China
3 Industrial Power Supplies DELTA Taiwan, China
4 Touch screen DELTA Taiwan, China
5 Solenoid Valve JANDE Taiwan, China
6 Solenoid Valve JANDE Mainland, China
7 AFC JANDE mainland, China
8 Pressure release valve JANDE mainland, China
9 Motor Jinlong mainland, China
10 Standard Cylinders JANDE mainland, China
11 Bearing NSK Japan
12 Switch France
13 Relay OMRON Japan
14 Relay IDEC Japan
