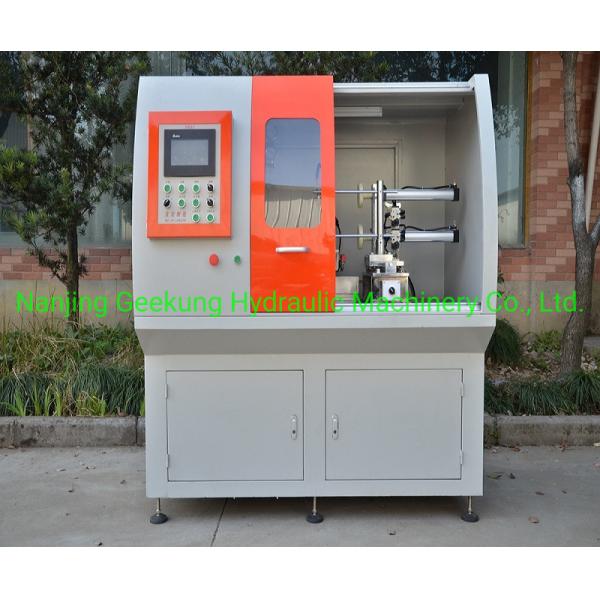

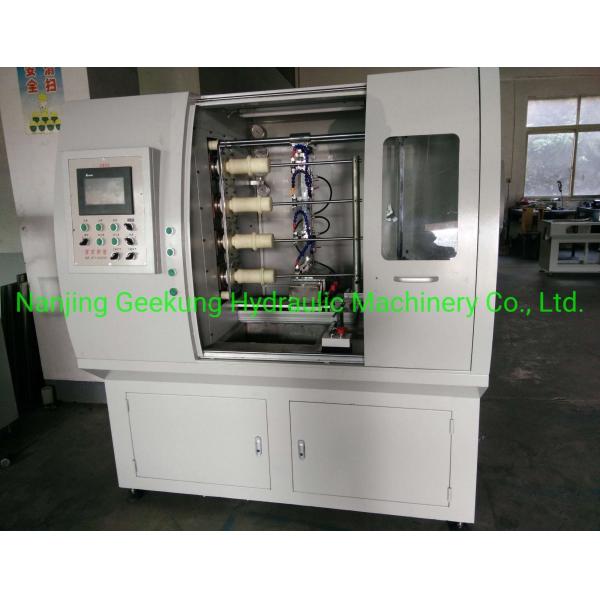

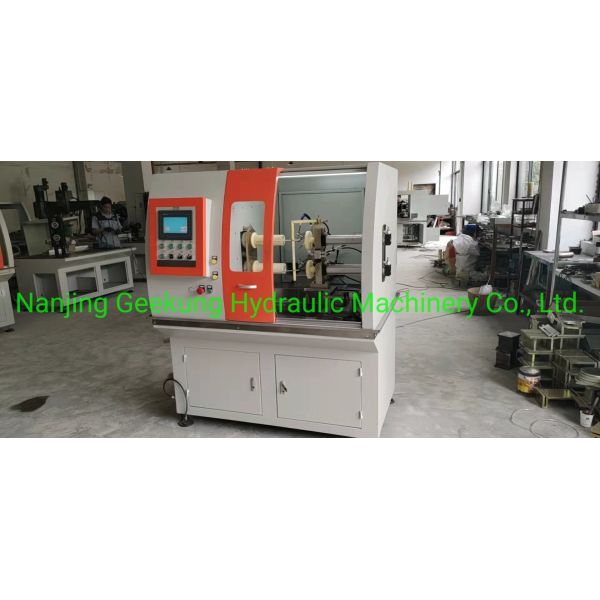

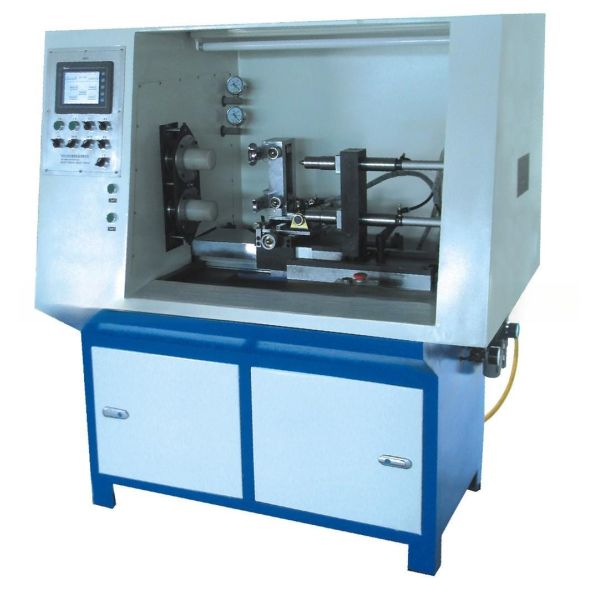

Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Rubber Washer Cutting Machine
Specifications
Model NO. :
JCM200-2
Structure :
Horizontal
Transport Package :
Standard Export Wooden Case Package
Specification :
JCM200-2
Trademark :
Geekung
Origin :
China
HS Code :
847780
Production Capacity :
1000 Sets/Year
Place of Origin :
China
Brand Name :
Mixer
Certification :
CE
MOQ :
1set
Packaging Details :
wooden case package
Delivery Time :
20-30days
Payment Terms :
T/T
Supply Ability :
30sets per months
Description
Product Description

-Application:

Rubber Washer Cutting Machineis used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular product.
-Features:
1. When the cutting finishes, materials take off automatically, and through the collection boxes to gather the cut products.

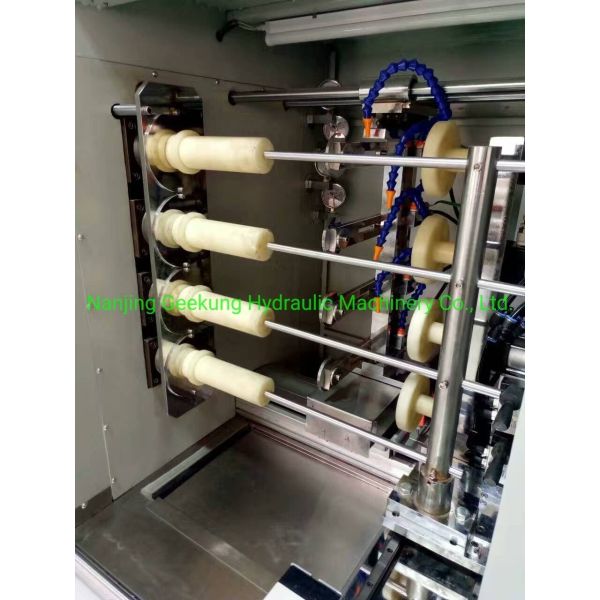

2.Our Rubber Washer Cutting Machine adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
4. The Rubber Washer Cutting Machine adopts color LCD touch screen control, operation is simple.
5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. Use servo drive system to control both the blades, compared with pneumatic control, servo control is more stable working and higher cutting precision.
Rubber Washer Cutting Machine
Main technical data:
Model JCM200-1 JCM200-2 JCM200-4
cutting efficiency ≥60 times /min ≥ 120 times /min ≥200 times /min
Working rotation speed 0─3000rpm 0─3000rpm 0─3000rpm
Cut precision ≤±0.05 mm ≤±0.05 mm ≤±0.05 mm
Cut size Rubber diameter:ф10-150mm
(2)Cut length (standard):<=140mm;
Lengthened type<=350
(3)Rubber wall thickness:<=25mm		 (1)Rubber diameter:
ф10─120mm
Cut length
(standard):<=140mm;
Lengthened type<=280
Rubber wall thickness:
<=25mm		 (1)Rubber diameter:
ф10─120mm
Cut length
(standard):<=140mm;
Lengthened type<=280
Rubber wall thickness:
<=25mm
Specification of blade
blade:ф60*ф25.4x0.3
 blade:ф60*ф25.4x0.3
blade:ф60*ф25.4x0.3
Compressed air 20L/min 30L/min 30L/min
Air pressure 0.5Mpa─0.8Mpa 0.5Mpa─0.8Mpa 0.5Mpa─0.8Mpa
Vacuum degree ≤-0.035Mpa ≤-0.035Mpa
Power source AC220V±5% AC220V±5% AC220V±5%
Total power 1.4 KW 2 KW 3KW
Dimension 1200x800x1210mm 1600x900x1650mm 1650x1100x1700mm
Total weight 450kg 650 880 kg
Packaging & Shipping

The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.
Rubber Washer Cutting MachineRubber Washer Cutting Machine

After Sales Service

We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
