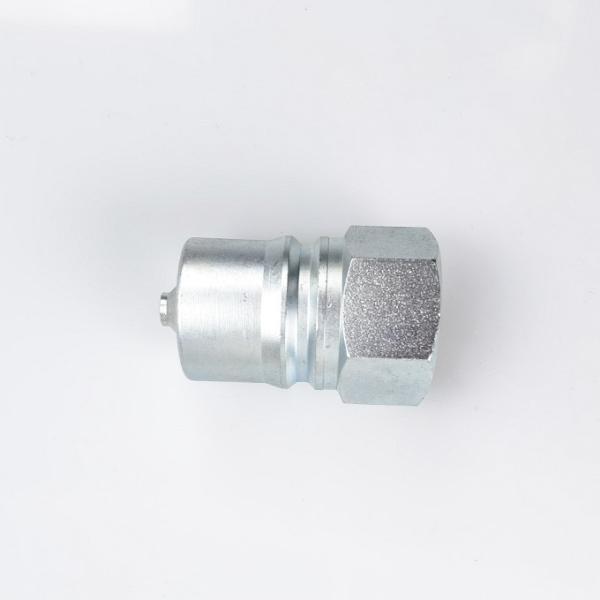

Cb spm 10f iso 7241 a Hydraulic Quick Coupling With Ball Poppet Valves
Cb spm 10f iso 7241 a Hydraulic Quick Coupling With Ball Poppet Valves
Cb spm 10f iso 7241 a Hydraulic Quick Coupling With Ball Poppet Valves
Cb spm 10f iso 7241 a Hydraulic Quick Coupling With Ball Poppet Valves
Specifications
Brand Name :
carterberg
Model Number :
CB-SPM-10F
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
ISO 7241A
Material :
zinc-plated steel, stainless steel
Connection :
Plug & Socket
Size :
1/4''-1''
Valves :
Ball / Poppet
Rated Pressure :
20.7 Mpa
Rated Flow :
190 L/min
Interchange :
Parker, Hansen, Faster,
Description

CB-SPM-10F Configuration Options – Thread, Material & Seal Selection

When specifying a hydraulic coupler, the part number alone doesn’t always ensure correct fit or performance. This page highlights the CB-SPM-10F model’s configurable options — from thread types to material grades and seal compatibility — so you can select the right combination for your system.


Thread Options: BSP, NPT, G

CB-SPM-10F is available with several connection standards to suit regional and application-specific hydraulic setups:

Thread Type Region / Use Case Notes
G (BSPP) Europe, Asia, OEM systems Parallel threads, o-ring seat
NPT North America, high-pressure Tapered threads, sealant needed
BSPT General industrial Tapered threads, less common

Make sure to match thread type to your mating coupler or port. Mismatches can lead to leakage or thread damage.

Want full performance specs and application examples?→ View the CB-SPM-10F Main Product Page

Cb spm 10f iso 7241 a Hydraulic Quick Coupling With Ball Poppet Valves


Stainless Steel Material Grades: SUS304 vs SUS316

Material Corrosion Resistance Recommended Use
SUS304 Standard General hydraulic applications
SUS316 Enhanced Marine, chemical, salt exposure zones

If your system operates near saltwater, in fertilizer sprayers, or in corrosive industrial atmospheres, opt for SUS316 for long-term performance.

Cb spm 10f iso 7241 a Hydraulic Quick Coupling With Ball Poppet Valves

Seal Material Choices

The CB-SPM-10F comes standard with NBR (nitrile) seals. Other seal options are available upon request:

Seal Type Fluid Compatibility Temperature Range
NBR Mineral oils -20°C to +80°C
FKM (Viton) Synthetic oils, high temp Up to +200°C
EPDM Water-glycol, phosphate esters Up to +150°C

Let us know your fluid type and system pressure, and we can advise the best seal configuration.

For a full list of ISO 7241-A couplings in all sizes and configurations,→ Visit the ISO 7241-A Coupling Series Overview


Common Questions (FAQ)

Q: Can I request a specific thread type on CB-SPM-10F?
Yes. Just specify G/NPT/BSP when placing your order or request a drawing for confirmation.
Q: How do I know if I need SUS316?
If your coupler is exposed to corrosive environments (salt, acid, chemical spray), SUS316 is strongly recommended.
Q: Can I use FKM seals with mineral oils?
Yes, but it may be unnecessary unless high temperature resistance is needed. NBR typically suffices for standard hydraulic oils.
