Specifications
Brand Name :
carterberg
Model Number :
CB-SP-10F
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
ISO 7241A
Material :
carbon steel, stainless steel
Connection :
Plug/Socket
SIZE :
1/4''-1''
Rated Pressure :
See the page parameter table for details.
Rated Flow :
190 L/min
Valves :
Ball / Poppet
Interchange :
Hansen 15000 Series,Parker 6600 Series,Faster ANV Series,Aeroquip 5600 Series
Description

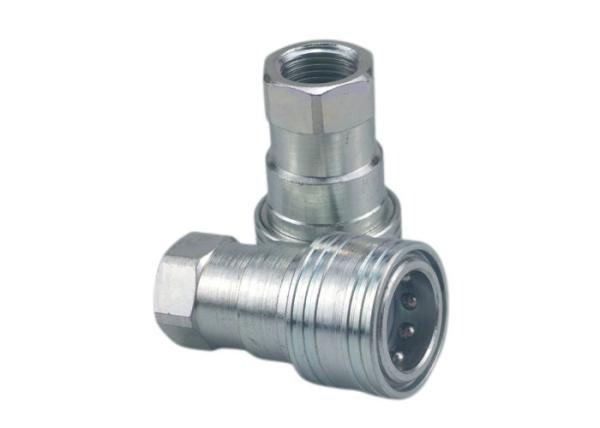

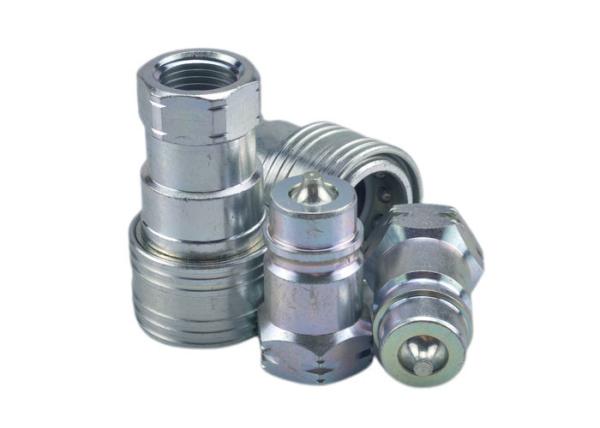

Carterberg CB-SP-10F ISO 7241-A Hydraulic Quick Coupling Set (Plug + Socket)

Carterberg CB-SP-10F is a robust hydraulic quick coupling set designed to meet ISO 7241-A standards. This model includes a complete set of both plug and socket couplers, ensuring fast, secure, and leak-free connection for fluid transfer systems. Manufactured with precision and durability in mind, it’s ideal for demanding industrial and mobile hydraulic applications.
The CB-SP-10F is engineered to offer full compatibility with other ISO 7241-A standard couplings on the market, allowing for seamless interchange with brands such as Parker, Faster, and Hansen. Its sleeve-locking mechanism ensures safe operation, while the hardened components provide long-term reliability under pressure.

Key Features

• Interchangeable with ISO 7241-A standard brands
• Includes both plug and socket quick coupling halves
• Durable design with high resistance to wear and corrosion
• Optional materials: carbon steel, stainless steel
• Compatible with a wide range of hydraulic fluids
• Compact structure for easy installation and handling

Applications

• Agricultural equipment
• Construction machinery
• Industrial hydraulic systems
• Mobile equipment
• Forestry and mining applications

Technical Specifications

BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/4" 4568 315 NBR
3/8" 4568 315
1/2" 3625 250
3/4" 3625 250
1" 2900 200

cb-sp-10f-iso-7241-a-hydraulic-quick-coupling
Body Size PARTNO. Thread A B Across Flats
1/4" CB-S2S-10FN 1/4-18 1.89 0.98 0.75
1/4" CB-S2S-10FG 1/4-19 1.89 0.98 0.75
3/8" CB-S3S-10FN 3/8-18 2.21 1.18 0.91
3/8" CB-S3S-10FG 3/8-19 2.21 1.18 0.91
1/2" CB-S4S-10FN 1/2-14 2.64 1.49 1.06
1/2" CB-S4S-10FG 1/2-14 2.64 1.49 1.06
3/4" CB-S6S-10FN 3/4-14 3.25 1.88 1.38
3/4" CB-S6S-10FG 3/4-14 3.25 1.88 1.38
1" CB-S8S-10FN 1-11 3.86 2.08 1.62
1" CB-S8S-10FG 1-11 3.86 2.08 1.62

cb-sp-10f-iso-7241-a-hydraulic-quick-coupling

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2S-10FN 1/4-18 1.41 0.86 0.80 0.75
1/4" CB-P2S-10FG 1/4-19 1.41 0.86 0.80 0.75
3/8" CB-P3S-10FN 3/8-18 1.63 1.04 0.79 0.91
3/8" CB-P3S-10FG 3/8-19 1.63 1.04 0.79 0.91
1/2" CB-P4S-10FN 1/2-14 1.92 1.22 0.92 1.06
1/2" CB-P4S-10FG 1/2-14 1.92 1.22 0.92 1.06
3/4" CB-P6S-10FN 3/4-14 2.42 1.58 1.09 1.38
3/4" CB-P6S-10FG 3/4-14 2.42 1.58 1.09 1.38
1" CB-P8S-10FN 1-11 2.83 1.85 1.19 1.62
1" CB-P8S-10FG 1-11 2.83 1.85 1.19 1.62
