Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8-3 | Zinc, Stainless Steel, Brass
Specifications
Place of Origin :
Shanghai, China
Brand Name :
carterberg
Certification :
IATF16949
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
carton
Delivery Time :
7-20 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Model Number :
CB-7
Material :
Steel
Technics :
Machinning
Thread :
BSPP/NPT
Locking Mechanism :
Threaded
Seal :
NBR
Interchange :
NITTO HSPcupla Series
Description

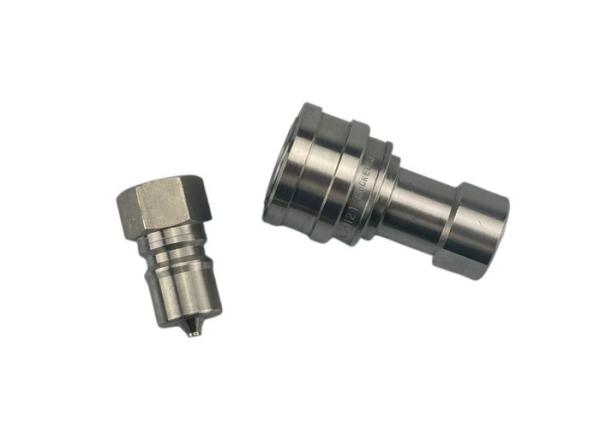

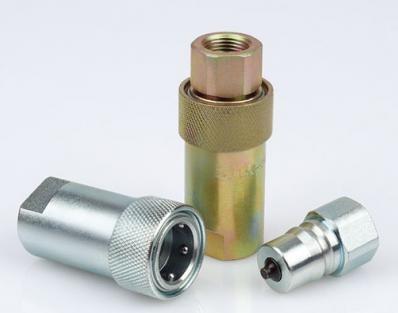

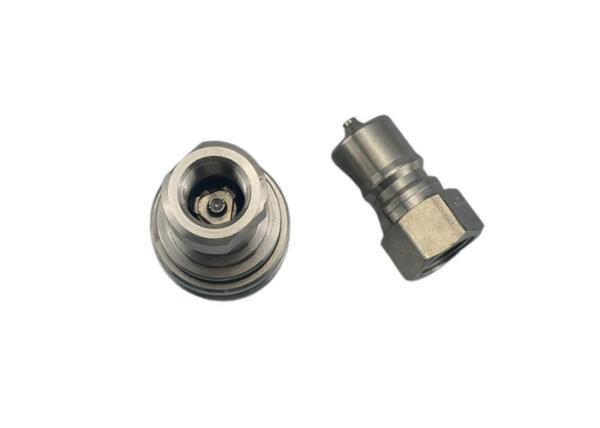

Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings - NPT/BSP Thread (1/8" to 3") | Zinc-Plated Steel, Stainless Steel, Brass

Our Two-Way Shut Off Quick Disconnect Couplings are engineered for industrial fluid and gas transfer systems, available in zinc-plated steel, brass, and corrosion-resistant stainless steel. Designed for durability, these couplings feature precision-machined solid bar stock sockets/plugs and hardened critical components to ensure long service life.

Sizes range from 1/8" to 3" NPT/BSP threads, supporting diverse applications in hydraulic, pneumatic, and process systems. Integrated poppet valves prevent leakage when uncoupled and auto-open under rated pressure (up to [insert PSI/bar if available]) for seamless flow. The reliable ball-locking mechanism guarantees secure connections, while optional NBR, Viton, or EPDM seals accommodate temperatures from -20°C to 120°C (-4°F to 248°F).

Fully compatible with NITTO HSPcupla series, these couplings include dust caps/plugs for contamination protection. Ideal for oil, water, compressed air, and chemical media. Streamline operations with minimal downtime using our ISO-compliant, maintenance-friendly solutions. Request specifications for custom sealing or material requirements.
Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8

PARTNO. LS ￠D HEX1 A T
CB-HSP-02SF 53 27.5 19 12 G1/4 NPT1/4
CB-HSP-03SF 60 33 23 13 G3/8 NPT3/8
CB-HSP-04SF 72 43 35 16 G1/2 NPT1/2
CB-HSP-06SF 72 43 35 18 G3/4 NPT3/4
CB-HSP-08SF 93 58 46 23 G1 NPT1


Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings | NPT/BSP Thread 1/8

PARTNO. LP C HEX2 A T
CB-HSP-02PF 36 17.5 19 12 G1/4 NPT1/4
CB-HSP-03PF 38 22.5 23 13 G3/8 NPT3/8
CB-HSP-04PF 50 27.5 32 16 G1/2 NPT1/2
CB-HSP-06PF 50 27.5 32 18 G3/4 NPT3/4
CB-HSP-08PF 61 36 41 23 G1 NPT1
