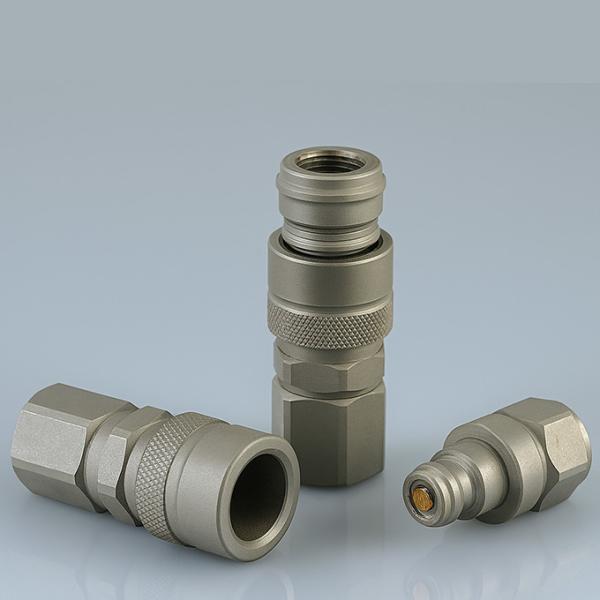

CB-SP2S-TF Super High Pressure Hydraulic Quick Couplings

Compact. Extreme Pressure. CEJN-Compatible.

Introduction:

CB-SP2S-TF is a compact super high-pressure quick coupling designed for specialized hydraulic tools such as jacks, rescue equipment, and torque tools. With a rated pressure of 21739 PSI and 3/32" body size, it offers high-performance operation where space is limited but pressure demands are extreme. This model is fully compatible with CEJN 115 and 116 series, making it ideal for European-standard systems.

Key Features:

• Super Compact, Super Strong: Engineered for high-pressure tools where space is tight and reliability is non-negotiable.

• 21739 PSI Rated Pressure: Designed for critical hydraulic systems that operate in extreme pressure ranges.

• Precise Machining: All parts are machined from solid bar stock and hardened for durability and impact resistance.

• CEJN-Compatible Interface: Matches dimensional and performance standards of CEJN 115/116 Series for hassle-free integration.

• Leak Prevention Design: The poppet valve and valve sleeve system minimizes fluid loss during connection and disconnection.

• Ball-Lock Engagement: Secure locking ensures safety under pressure with fast and easy coupling.

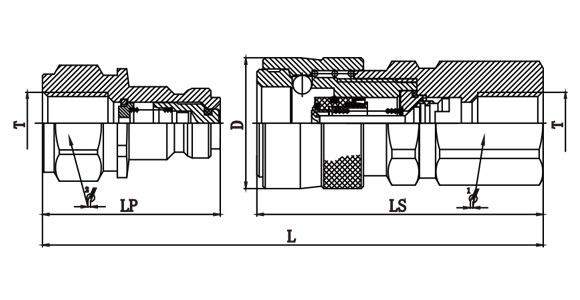

Technical Specifications:

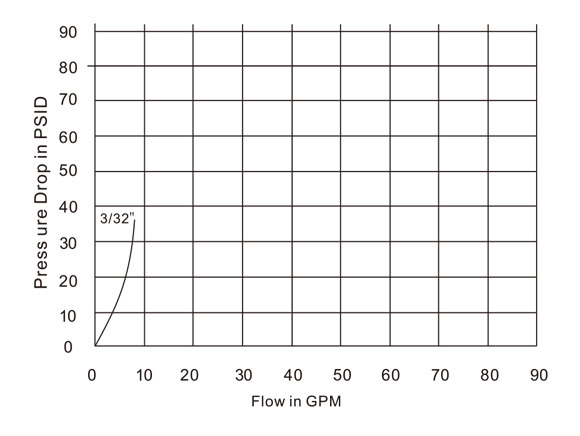

Performance Curve:

Pressure drop vs. flow rate (GPM) chart for 3/32” body size.

What Makes CB-SP2S-TF Different from Other High-Pressure Couplings?

FAQ

Q: Is CB-SP2S-TF interchangeable with CEJN couplers?
A: Yes, this model is designed for full compatibility with CEJN 115 and 116 Series in both dimensions and performance.

Q: Can CB-SP2S-TF be used in place of standard 3/8” high-pressure couplers like CB-SP3S-TC?
A: Only if the size and flow requirements match. CB-SP2S-TF is optimized for smaller-scale equipment and systems.

Q: Does CB-SP2S-TF support swivel or rotating under pressure?
A: No. Like all threaded high-pressure couplers, rotation under pressure may damage seals or threads.
