CB-10135 Ultra High Pressure Hydraulic Coupling | CEJN 135 Compatible – 300 MPa Rated

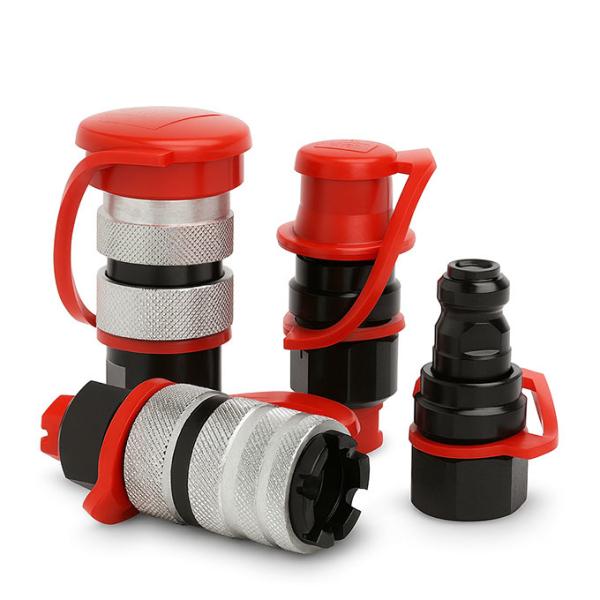

The CB-10135 is a compact, ultra high pressure quick coupling designed for demanding hydraulic systems operating up to 300 MPa (43,500 PSI). Fully compatible with CEJN 135 Series, this coupling is optimized for leak-free performance, mechanical safety, and rapid integration into confined-space hydraulic systems.

With a hardened steel body and a secure locking ring on the female half, the CB-10135 is ideal for rescue tools, bearing pullers, and high-pressure test benches.

Key Features & Advantages

• 300 MPa Working Pressure: Built for extreme pressure systems without risk of leakage or deformation.

• Non-Spill Design: Connect and disconnect safely under pressure with minimal fluid loss.

• CEJN 135 Interchange: Fully compatible with standard CEJN 135 series couplings and hydraulic tools.

• Safety Lock Ring: Female half includes a mechanical locking ring to prevent accidental disconnection.

• Compact Dimensions: 64 mm total length, 2.5 mm flow diameter – perfect for tight installations.

• Thread Type: M16x1.5 threaded interface with 60° cone seal.

• Durable Material: Hardened carbon steel with black surface finish for maximum strength.

• Flow Efficiency: Delivers 4.6 L/min at a pressure drop of 1 bar.

• Wrench Size: Standard 22 mm for convenient installation.

Technical Specifications

Typical pressure-flow curve of CB-10135.

Minimal pressure loss is maintained even under 300 MPa pressure range, ensuring system efficiency and safety.

Dimensional Overview

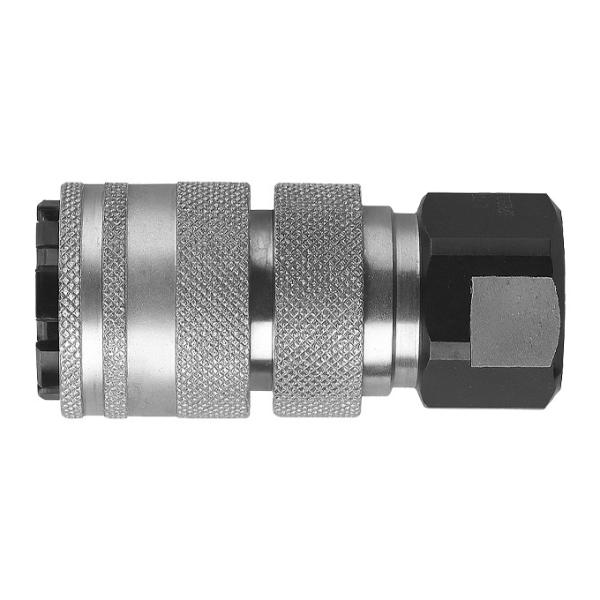

Female (Socket)

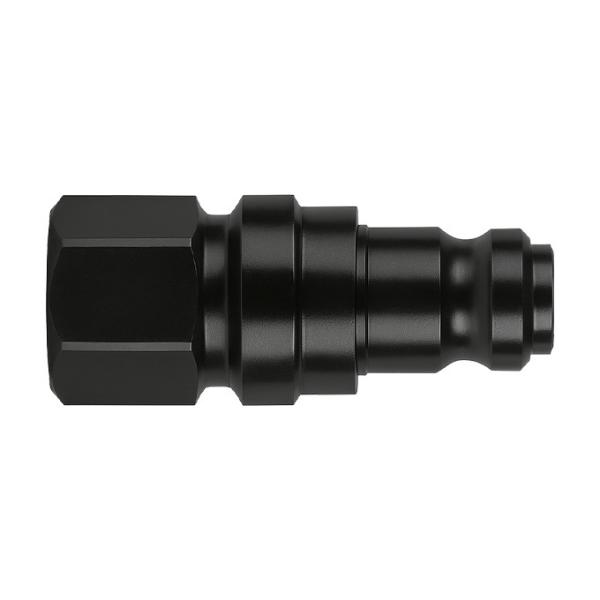

Male (Plug)

Application Fields

• Hydraulic Puller Systems

• Rescue and Spreaders

• Ultra High-Pressure Test Benches

• Precision Maintenance Tools

• Off-site Service Units

CEJN 135 Compatibility

CB-10135 is fully dimensionally and functionally compatible with CEJN 135 Series couplings:

• Thread interface: M16x1.5

• Same nominal diameter and working pressure

• Matching metal seal cone

• Similar mechanical locking safety
