Specifications
Brand Name :
carterberg
Model Number :
CB-10115 / CB-10117
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
High Pressure Hydraulic Quick Coupling
Material :
Hardened Steel
Rated Pressure :
100 MPa
Rated Flow :
6 L/min
Temperature Range :
-30°C to +100°C
Interchange :
CEJN 115/117
Description

CB-10115 / CB-10117 Ultra High Pressure Hydraulic Quick Couplings – 100 MPa DN 2.5

Carterberg’s CB-10115 and CB-10117 series hydraulic quick couplings are purpose-built for ultra high pressure hydraulic circuits where compact size, leak-free performance, and precision matter.
With a nominal diameter of just 2.5 mm and a pressure rating of up to 100 MPa (14,500 PSI), both models deliver reliable performance in bolt tensioning tools, hydraulic stud tensioners, test benches, and micro-cylinder systems.

Though similar in performance and application, CB-10115 and CB-10117 are not cross-compatible due to internal construction differences. Users should select the correct model based on system design and connection standards.


Key Features:

• 100 MPa Pressure Rating
Designed for ultra high pressure hydraulic systems, compliant with demanding industrial safety standards.

• Small Bore for Precision Control
DN 2.5 mm flow diameter ensures accurate and efficient pressure application.

• Secure Locking Mechanism
Internal locking sleeve prevents accidental disconnection under pressure.

• Leak-Free Disconnection
Flat-face valve technology minimizes fluid loss during disconnect.

• Two Structural Versions
Choose CB-10115 or CB-10117 based on equipment requirement.
Not interchangeable – use model-specific plugs and sockets only.


CB-10115 vs CB-10117 – Model Comparison Table:

Model Working Pressure Flow Diameter (DN) Thread Type Material Interchangeable
CB-10115 100 MPa 2.5 mm M10x1 or M14x1.5 Hardened Steel No
CB-10117 100 MPa 2.5 mm M10x1 or M14x1.5 Hardened Steel No


Flow vs Pressure Drop Curve

CB-10115 / 10117 pressure-flow curve illustrates optimized performance in ultra high-pressure low-volume systems.

high pressure hydraulic quick couplings cb 10115 cb 10117


Dimensional Overview

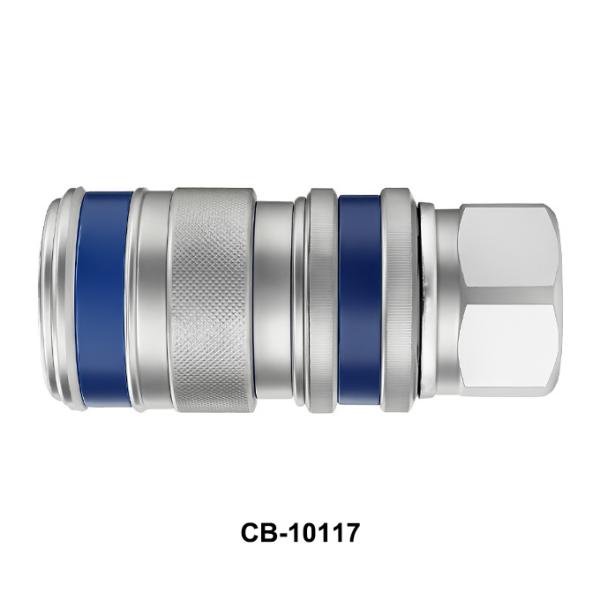

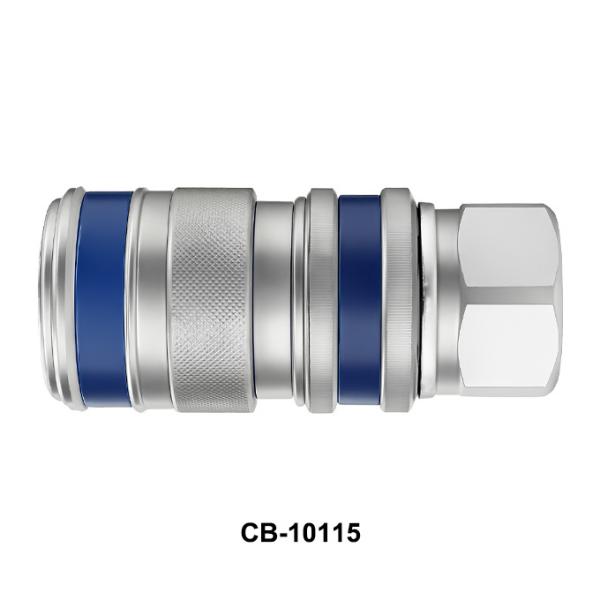

Female (Socket)

high pressure hydraulic quick couplings cb 10115 cb 10117

high pressure hydraulic quick couplings cb 10115 cb 10117

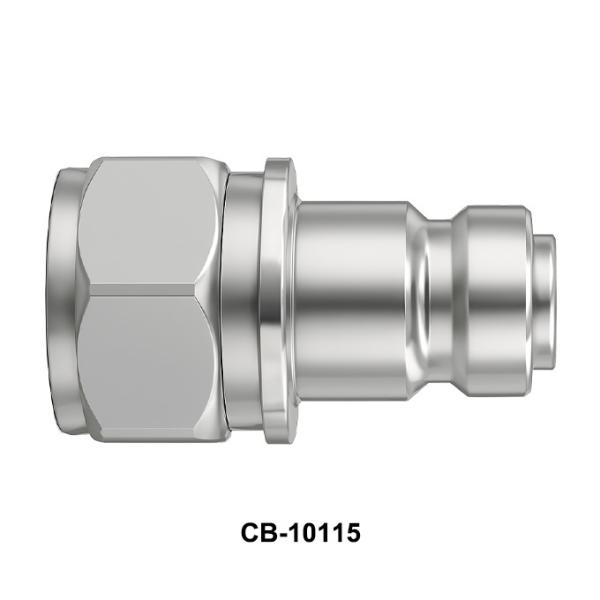

Male (Plug)

high pressure hydraulic quick couplings cb 10115 cb 10117

high pressure hydraulic quick couplings cb 10115 cb 10117

Applications:

• Bolt tensioning hydraulic systems
• Hydraulic stud tensioners
• High-pressure test benches
• Compact hydraulic tools with limited space
• Offshore and onshore industrial maintenance tools

Call to Action:

Need help selecting between CB-10115 and CB-10117?
Contact our technical team for application-specific advice and sample requests.
