Specifications
Brand Name :
Carterberg
Model Number :
CB-SPB-1F
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
hydraulic quick coupling
series :
ISO 7241-B
Size :
1/8"-2"
Material :
carbon steel, brass, 303/316 stainless steel
Rated Pressure :
up to 3000 psi
Flow Rate :
up to 200 gpm
Seal materials :
Buna-N,Neoprene,EPDM,FKM
Temperature Range :
Based on seal material
Description

CB-SPB-1F ISO 7241-B Hydraulic Quick Coupling | Carterberg

The CB-SPB-1F is Carterberg’s cost-efficient and space-saving solution in our ISO 7241-B hydraulic coupling lineup. It’s engineered for equipment designers and system operators who require reliable connection in compact or lower-pressure systems, without compromising interchangeability or sealing performance.
This model integrates the same trusted ball-latch mechanism and poppet valve design as our higher-tier models, but with economical packaging and simplified configuration, making it ideal for widespread industrial use.

Key Features

• Compliant with ISO 7241-1 Series B dimensions
• Compact and lightweight body – ideal for tight installation spaces
• Ball-lock design ensures quick, tool-free coupling
• Self-sealing poppet valves minimize fluid loss
• Suitable for low-to-medium pressure systems
• Available in carbon steel, brass, or stainless options
• Cost-effective without sacrificing compatibility

Material & Sealing Options

Designed with affordability and compatibility in mind, CB-SPB-1F supports multiple materials (steel, brass, stainless) and seal options depending on system needs:

Seal Material Max Temperature
Buna-N -40°C to +121°C
Neoprene -54°C to +100°C
EPDM -54°C to +149°C
FKM -29°C to +204°C

Ideal for water lines, compressed air, light hydraulic oil systems, and more.


Technical Specifications

Size (Inches) Rated Pressure (psi) Flow Rate (gpm)

1/8"

 3000 0.8
1/4" 2700 3
3/8" 2200 6
1/2" 2250 12
3/4" 2000 26
1" 1500 50
1-1/4" 1200 76
1-1/2" 1500 99
2" 700 200

• Mounting Types: Threaded (BSPP / NPT / SAE)
•Working Temperature: Based on selected seal


Product Visual & Dimensions

This coupling set features plug + socket, designed for simple installation and cost-aware system layouts.

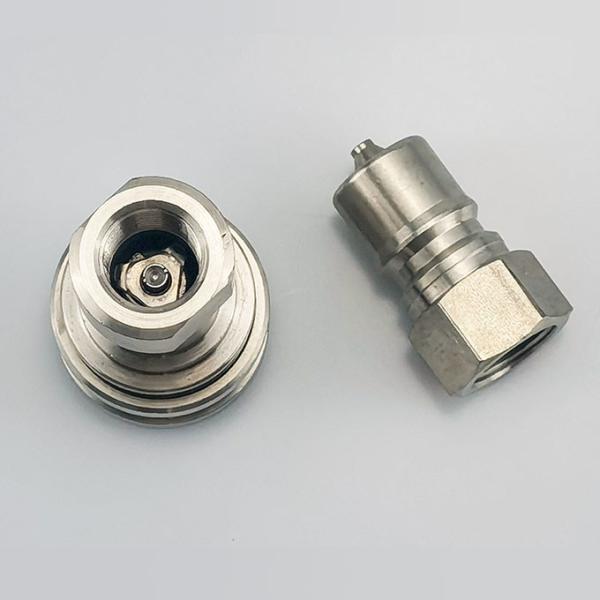

• Pairing plug and socket sets with varied threads

cb spb 1f iso 7241 b hydraulic quick coupling

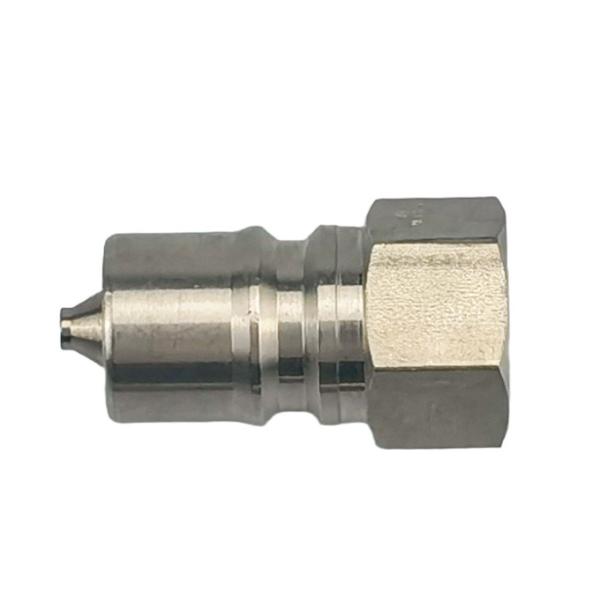

• Threaded plug showing ball-lock structure

cb spb 1f iso 7241 b hydraulic quick coupling

Body Size PARTNO. Thread C D E HEX
1/8" CB-P1B-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1B-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2B-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2B-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3B-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3B-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4B-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4B-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6B-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6B-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8B-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8B-1FN 1-11 2.85 1.88 0.97 1.63


• Disconnected socket showing poppet valve

cb spb 1f iso 7241 b hydraulic quick coupling

Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1S-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1S-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2S-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2S-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3S-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3S-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4S-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4S-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6S-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6S-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8S-1FG 1-11 4.13 2.61 1.75
1" CB-S8S-1FN 1-11 4.13 2.61 1.75


Application Scenarios

The CB-SPB-1F is ideal for medium-duty and value-conscious hydraulic systems:
• Hydraulic systems on municipal or rental equipment
• Water or air lines in utility carts, HVAC circuits
• Compressed air or non-critical fluid delivery lines
• Light agricultural implements or sprayers
• OEM systems prioritizing budget and compactness

Brand Interchange Compatibility

The CB-SPB-1F fits all ISO 7241-B standard dimensions and replaces:
• Parker 60 Series
• Faster HNV Series
• Aeroquip FD45
• Hansen HK Series
View our full Interchange Guide

Why Choose CB-SPB-1F?

Feature Value
Compact size Easy fit into restricted installations
Reliable ball-lock design Smooth connect/disconnect cycles
Broad compatibility Interchangeable with leading brands
Budget-conscious choice Ideal for scalable, high-volume systems


When to Choose the “B” Version?

If your hydraulic line does not operate under extreme pressure or environmental stress, and you need a compact, affordable, and interchangeable quick coupling, the CB-SPB-1F is the optimal fit.
It's widely used in air-powered tools, mobile fluid carts, and utility vehicles where cost and footprint matter most.

Ready to Discuss System Fit?

Our team can advise on seal selection, mounting thread, and pressure compatibility.
