Specifications
Brand Name :
Carterberg
Model Number :
CB-SP-6FN-VEP
Certification :
IATF16949
Place of Origin :
Shanghai, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Serise :
threaded-hydraulic-quick-coupling
Size :
1/2", 5/8", 3/4", 1", 1-1/2"
Material :
steel
Working Pressure :
7000 psi
Rated Flow :
Up to 152 GPM
Operating Temperature :
-20°C to +120°C
Application :
Portable construction equipment.Hydraulic tools,Mobile hydraulic systems in vehicles
Interchangeable :
STUCCHl VEP Series
Description

CB-SP-6FN-VEP Flat-Face Threaded Hydraulic Coupling (New Release)

Compact, Secure, Residual-Pressure-Friendly — Now Available as a New Listing

CB-SP-6FN-VEP is Carterberg's newly launched threaded quick coupling designed for demanding hydraulic systems requiring flat-face integrity and safe operation under residual pressure. As part of our latest product lineup, this model is currently categorized under our New Products section and will be migrated to a specific threaded coupler category after launch evaluation.


Key Features at a Glance

• Flat-face design minimizes fluid loss and contamination during connection/disconnection.
• Threaded sleeve locking system ensures secure mating and vibration resistance.
• Residual pressure connection allows safe coupling even under trapped pressure.
• Anti-blowout bonded seal enhances reliability under high impulse and harsh cycles.
• Wide flow and pressure range, suitable for multiple tool and vehicle applications.

Construction & Design Highlights

CB-SP-6FN-VEP features a steel body with high-precision machined threads and chrome-plated components for durability. The female and male halves use a threaded sleeve lock for manual engagement, ensuring tight sealing even under residual pressure.
Internally, the flat-face valve structure offers flush sealing with metal-to-metal contact. This limits fluid spillage and prevents air intrusion when reconnecting, especially critical in construction hydraulics and mobile tool setups.
The built-in anti-blowout bonded seal protects against internal damage from pressure spikes, making it highly reliable in heavy-duty or repetitive connect/disconnect environments.

Technical Specifications

Parameter Value
Body Sizes Available 1/2", 5/8", 3/4", 1", 1-1/2"
Rated Pressure 7000 PSI (1/2" to 3/4")6000 PSI (1")5000 PSI (1-1/2")
Rated Flow 12 – 152 GPM
Temperature Range -20°C to +120°C
Standard Seal Material NBR (Nitrile Rubber)
Valve Type Flat-face, flush-valving
Locking System Threaded sleeve, manual connect
Residual Pressure Capability Yes


Dimensional Overview

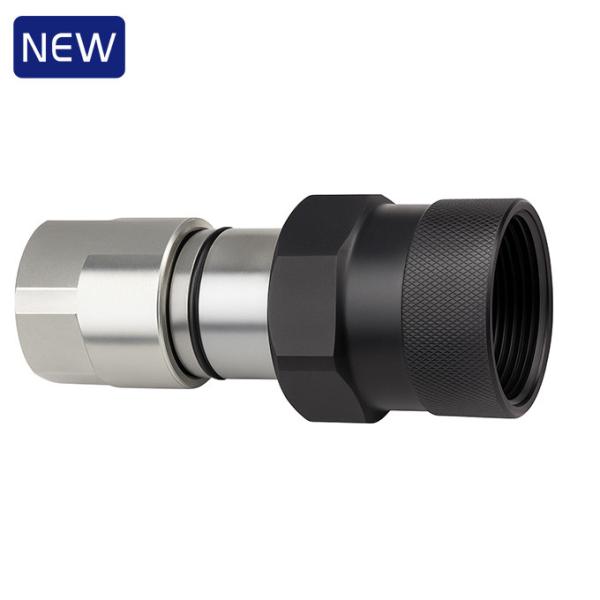

Female (Socket)

threaded-hydraulic-quick-couplings-cb-sps-6fn-vep

PART NO

LS

D

HEX1

HEX2

A

T

CB-S4S-6FN-VEP

103.5

Φ49

S36 六角

S46 六角

16.5

G1/2 NPT1/2

CB-S6S-6FN-VEP

114

Φ53.7

S41 六角

S50 六角

20

G3/4 NPT3/4

CB-S8S-6FN-VEP

133.5

Φ58.8

S46 六角

S55 六角

21

G1 NPT1

CB-S10S-6FN-VEP

145.2

Φ68.7

S55 六角

S65 六角

21

G1-1/4 NPT1-1/4

CB-S12S-6FN-VEP

187.5

Φ92

S65 六角

S85 六角

21

G1-1/2 NPT1-1/2

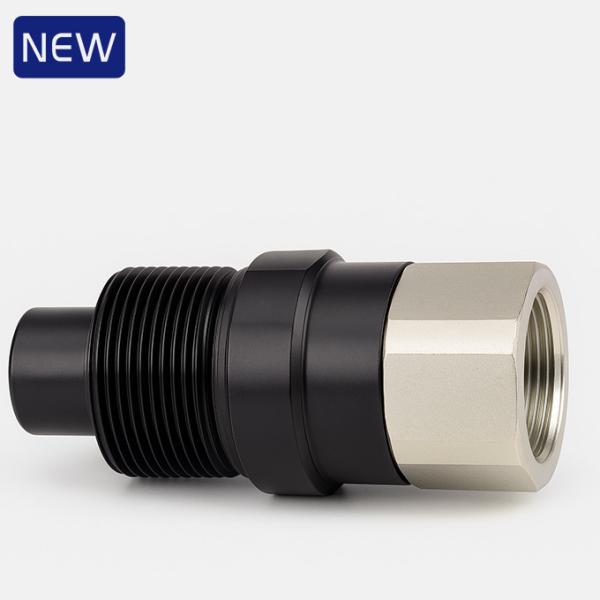

Male (Plug)

threaded-hydraulic-quick-couplings-cb-sps-6fn-vep

PART NO

LS

C

d

E

HEX2

A

T

CB-P4S-6FN-VEP

95

18.8

24.54

M40*3

S36 六角

16.5

G1/2 NPT1/2

CB-P6S-6FN-VEP

98.8

19.5

27.04

M45*3

S36 六角

20

G3/4 NPT3/4

CB-P8S-6FN-VEP

113.9

24

29.95

M50*3

S46 六角

21

G1 NPT1

CB-P10S-6FN-VEP

123.5

24.8

36.05

M58*3

S55 六角

21

G1-1/4 NPT1-1/4

CB-P16S-6FN-VEP

150

31.5

57

Tr80*4

S65 六角

21

G1-1/2 NPT1-1/2


Where It Works Best

CB-SP-6FN-VEP is ideal for:
• Portable construction equipment: Excavators, trenchers, and skid steers operating under high pulsation loads.
• Hydraulic tools: Where connection/disconnection must occur under load or residual pressure.
• Mobile hydraulic systems in vehicles: Maintenance trucks, cranes, and off-road platforms requiring clean, reliable couplings.

Why It Deserves Your Attention

Unlike standard ball-type threaded couplers, CB-SP-6FN-VEP combines the robustness of a screw-type locking system with the cleanliness and low-loss characteristics of flat-face valves. It's engineered to operate under residual pressure — a capability often critical in field maintenance or interrupted workflows.
Its anti-blowout sealing and flush valve design make it especially reliable in systems subjected to pressure cycling, contamination risk, or severe hydraulic shocks.

Classification Note

Currently published as a New Product, CB-SP-6FN-VEP will be reassigned under the Carterberg Thread-to-Connect Flat-Face Coupler category following product launch assessment and market feedback.
