flat-face-quick-couplings-iso-16028-cb-6fn-ffy
flat-face-quick-couplings-iso-16028-cb-6fn-ffy
Specifications
Brand Name :
Carterberg
Model Number :
CB-6FN-FFY
Certification :
IATF16949
Place of Origin :
Shanghai, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
hydraulic quick coupling
Serise :
Flat Face Quick Coupler
ISO Standard :
iso 16028
Size :
1/4",3/8",1/2",3/4",1"
Material :
solid carbon steel
Rated Pressure :
Up to 5000 psi
Temperature Range :
-20°C ~ +120°C
Application :
Hydraulic attachments with residual pressure,Excavator breaker tool interfaces,Underground drilling and boring tools
Interchangeable :
ISO 16028 serise
Description

CB-6FN-FFY Flat Face Hydraulic Male Coupling – Three-Valve Design

The CB-6FN-FFY from Carterberg is a male-only flat face hydraulic quick coupling built to handle demanding pressure and flow conditions in mobile and industrial fluid systems. It features an advanced three-valve internal design, enabling connection under residual pressure without fluid spillage or air inclusion.

Each coupling is precision-machined from solid carbon steel and finished with an eco-friendly zinc-nickel coating for excellent corrosion resistance. The FFY series is compliant with ISO 16028 standards and designed for long-term reliability in environments such as construction equipment, hydraulic breakers, and underground tools.


Key Features

Feature Description
Three-Valve Internal System Contains three independent internal valves that allow safe and secure connection under residual pressure.
Flat Face Non-Spill Design Eliminates fluid loss and air ingress during disconnection.
Residual Pressure Compatible Specifically designed for high-pressure tool change scenarios.
Barstock Carbon Steel Construction Offers high strength and vibration resistance.
Zinc-Nickel Plated Surface Enhances durability in outdoor and corrosive environments.
Complies with ISO 16028 Suitable for integration with ISO-standard hydraulic systems.


Technical Specifications

Body Size (inches) 1/4 3/8 1/2 3/4 1
Rated Pressure (PSI) 5000 4350 4350 3625 3000
Rated Flow (GPM) 3 6 12 50 80
Temperature Range -20°C ~ +120°C
Standard Seal NBR (Nitrile Rubber)

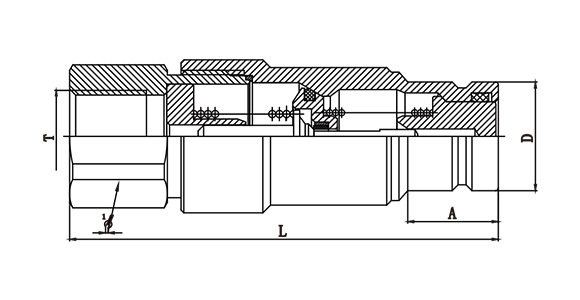

Dimensional Overview

Male (Plug)

flat-face-quick-couplings-iso-16028-cb-6fn-ffy

PART NO.

L

D

HEX1

A

T

CB-P2S-6FN-FFY

76.7

16.17

S20

11.8

G1/4

CB-P3S-6FN-FFY

78.1

19.75

S24

16.5

G3/8

CB-P4S-6FN-FFY

95.8

24.54

S32

17.8

G1/2

CB-P8S-6FN-FFY

113.9

29.95

S46

23.5

G1

CB-P10S-6FN-FFY

123.7

36.05

S55

23.4

G1-1/4


Typical Applications

• Hydraulic attachments with residual pressure

• Excavator breaker tool interfaces

• Underground drilling and boring tools

• Mobile utility equipment hydraulic ports

• Harsh-environment fluid control systems
