Threaded Flat-Face Couplings – Screw-Lock, Carbon Steel, Connect Under Pressure (300-450 bar)
Threaded Flat-Face Couplings – Screw-Lock, Carbon Steel, Connect Under Pressure (300-450 bar)
Specifications
Brand Name :
carterberg
Model Number :
CB-FT
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Interchange :
Stucchi VEP
Occlusion :
flat face
Locking :
screw
Material :
steel
Finishing :
Zn-Fe(Cr lll)-Zn-Ni
Threads :
BSP-NPT-SAE
Standard seals :
NBR-Polyurethane
Working temperature :
-25℃+100℃
Optional seals :
Viton,EPDM or more
Working pressure :
300-450bar
Max residual pressure :
300 bar
Description

Threaded Flat-Face Couplings – Screw-Lock, Carbon Steel, Connect Under Pressure (300-450 bar)

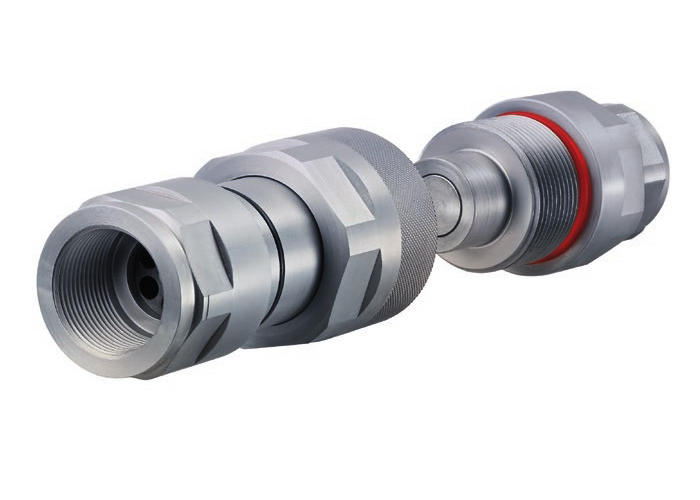

Our threaded flat-face coupling series offers perfect interchangeability with the Stucchi VEP portfolio, facilitating seamless upgrades and replacements. Built with a screw-locking mechanism for secure connection, the body is crafted from carbon steel and treated with either Zn-Fe (Cr III) or Zn-Ni for superior corrosion resistance. Thread options include BSP, NPT and SAE to support global applications. Standard sealing is NBR/PU, with FKM and EPDM available for elevated chemical or temperature requirements. Operating temperature spans –25 °C to +100 °C, while the rated working pressure is 300-450 bar. Critically, this series allows connect/disconnect under pressure, up to a maximum of 300 bar. Engineered for high-performance hydraulic systems, this coupling range is ideal for OEMs and distributors seeking reliable, globally compatible industrial fittings.


Threaded Flat-Face Couplings – Screw-Lock, Carbon Steel, Connect Under Pressure (300-450 bar)

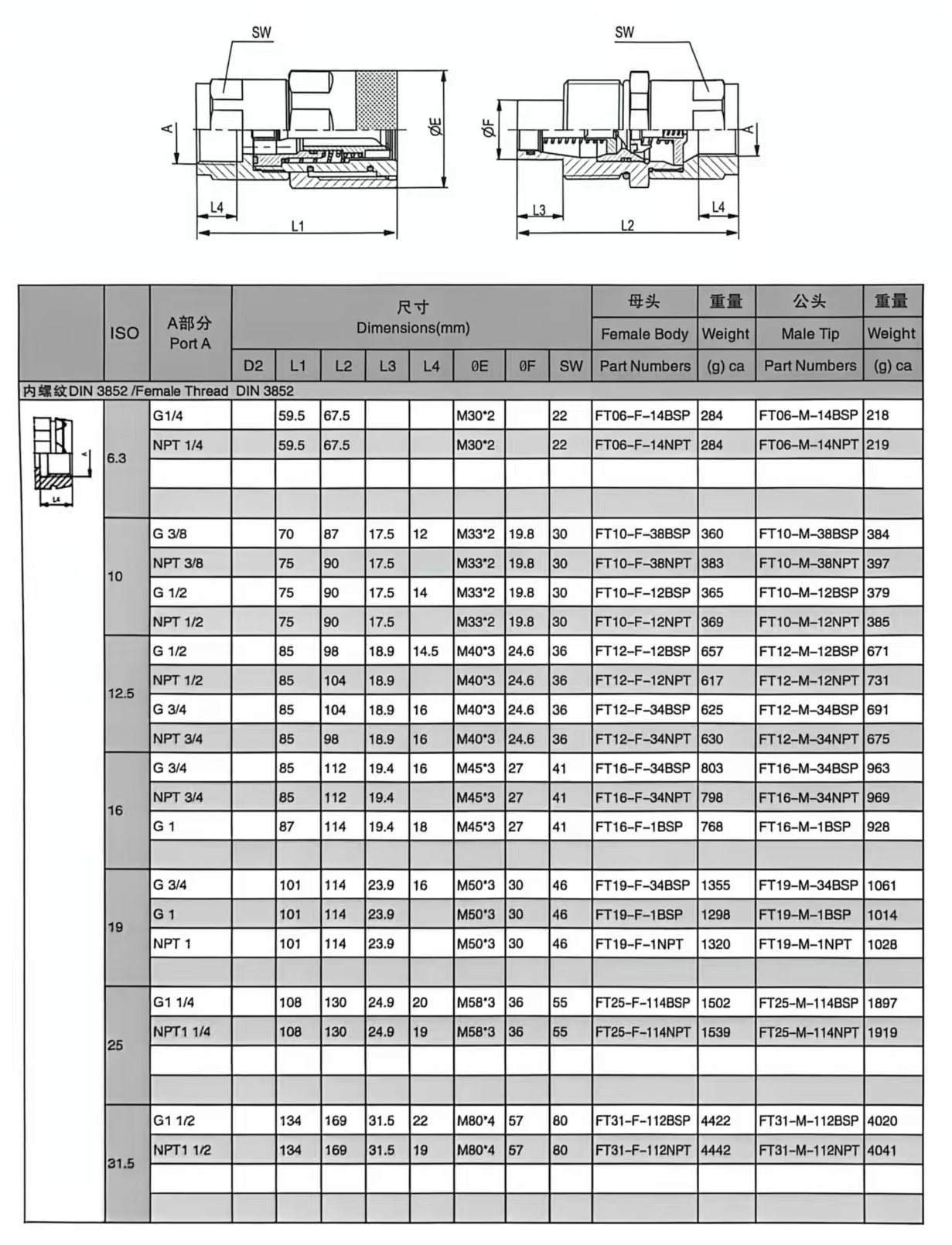

Nominal size Working pressure Rated flow(ISO) Max flow rate Burst pressure Fluid spillage
FT ISO Mpa l/min l/min Male(Mpa) Female(Mpa) Coupled(Mpa) cc
10 10 35 23 46 130 170 140 0.010
12 12.5 35 45 90 140 140 140 0.012
16 16 35 74 150 140 140 140 0.015
19 19 35 100 200 140 140 140 0.020
25 25 35 189 280 140 140 140 0.030
31 31.5 30 379 700 120 120 120 0.050

Threaded Flat-Face Couplings – Screw-Lock, Carbon Steel, Connect Under Pressure (300-450 bar)


Our Services:


1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
