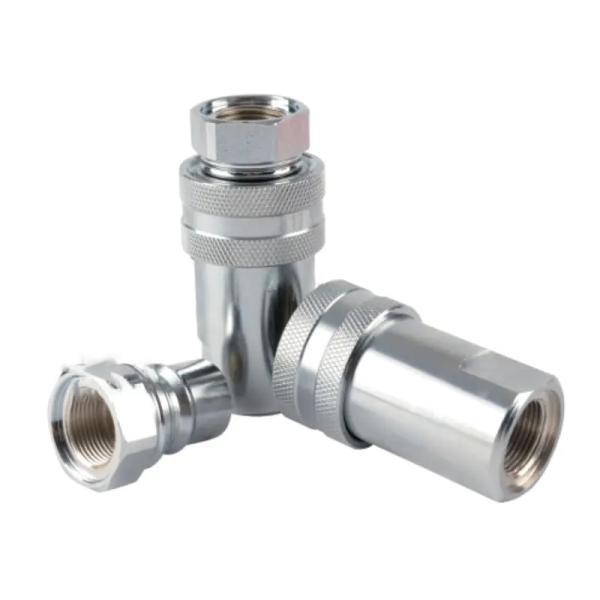

CB-YM Coal Mine Quick Couplings - Chrome Plated Carbon Steel - Dn10-Dn52 Threads
CB-YM Coal Mine Quick Couplings - Chrome Plated Carbon Steel - Dn10-Dn52 Threads
Specifications
Brand Name :
carterberg
Model Number :
CB-YM
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
ISO 7241A
Material :
zinc-plated steel, stainless steel
Size :
1/4''-1''
Rated Pressure :
up 2900 PSI（20 MPa）
Sealant materials :
NBR (standard), Viton, EPDM (optional)
Connection :
plug and socket
Valves :
Ball / Poppet
Interchange :
Compatible with Parker 6600, Faster ANV, Stucchi A series, etc.
Description

CB-YM Coal Mine Quick Couplings are high-strength, chrome-plated carbon steel connectors designed for harsh mining environments. With a temperature range of -20°C to +100°C, they ensure reliable performance in extreme conditions. Available in thread sizes Dn10 to Dn31.5 (M18×1.5 to M52×2), these couplings support pressures from 15 to 28 bar, catering to diverse pipeline connections in quarrying and large-scale mining equipment. Their durable chrome plating enhances corrosion resistance, while precise threading guarantees leak-proof sealing. Ideal for hydraulic systems, pneumatic lines, and fluid transfer applications, CB-YM couplings are engineered for efficiency and longevity in industrial settings. Trusted for mining machinery, these connectors streamline maintenance and reduce downtime.

CB-YM Coal mine quick coupling

Material: Carbon Steel

Plating: Chrome Plated

Temperature Range (Nbr): -20°C + 100°C

Thread Size: Dn10 Dn12.5 Dn20 Dn25 Dn31.5

Thread: M18*1.5 M22*1.5 M27*2 M33*2 M52*2

Pressure: 28 26 21 20 15

Application Range: Various Pipeline Connections Such As Mining Equipment.CB-YM quarry large mine and other equipment.

Technical Specifications

BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
3/8" 4000 6 -20℃~+100℃ NBR
1/2" 3000 12 -20℃~+100℃ NBR


Dimensional Overview

Female (Socket)


Body Size PARTNO. L L1 L2 L3 D1 D2 CH1 CH2 T
3/8" CB-SP3S-TNV 82 50.5 49 18.5 30.5 12.8 25.4 25.4 G3/8 NPT3/8
1/2" CB-SP4S-TNV 94 57 54.5 18.5 35 16 30.2 30.2 G1/2 NPT1/2
