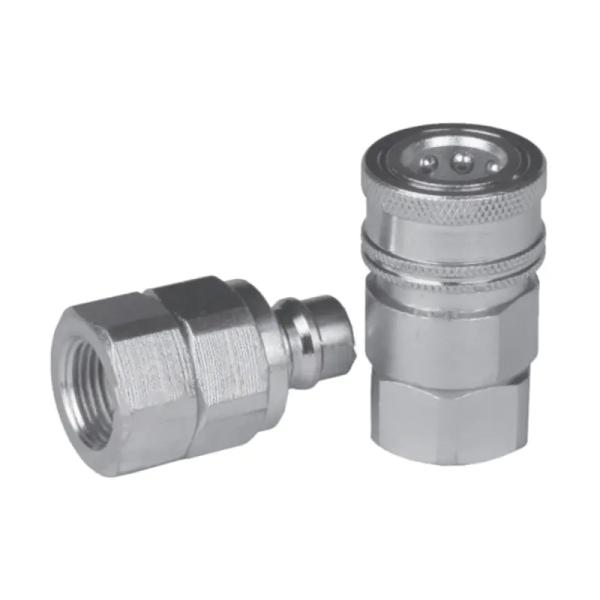

CB-TNV Hydraulic Quick Coupling – Leak-Proof, Durable & High-Flow for Industrial Applications
CB-TNV Hydraulic Quick Coupling – Leak-Proof, Durable & High-Flow for Industrial Applications
Specifications
Brand Name :
carterberg
Model Number :
CB-SPS-TNV
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
ISO 7241A
Material :
zinc-plated steel, stainless steel
Size :
1/4''-1''
Rated Pressure :
up 2900 PSI（20 MPa）
Sealant materials :
NBR (standard), Viton, EPDM (optional)
Connection :
plug and socket
Valves :
Ball / Poppet
Interchange :
Compatible with Parker 6600, Faster ANV, Stucchi A series, etc.
Description

CB-TNV Close type hydraulic quick coupling

● Poppet valves available to prevent uncoupled leakage.

● Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.

● Critical parts are hardened for durability.

● Dependable ball-locking mechanism holds the mating halves together.

● Socket and plug are precision machined from solid bar stock.

● Compatible with F ASTER TNV Series.

The CB-TNV Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.


Technical Specifications

BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
3/8" 4000 6 -20℃~+100℃ NBR
1/2" 3000 12 -20℃~+100℃ NBR


Dimensional Overview

Female (Socket)

CB-TNV Hydraulic Quick Coupling – Leak-Proof, Durable & High-Flow for Industrial Applications

Body Size PARTNO. L L1 L2 L3 D1 D2 CH1 CH2 T
3/8" CB-SP3S-TNV 82 50.5 49 18.5 30.5 12.8 25.4 25.4 G3/8 NPT3/8
1/2" CB-SP4S-TNV 94 57 54.5 18.5 35 16 30.2 30.2 G1/2 NPT1/2
