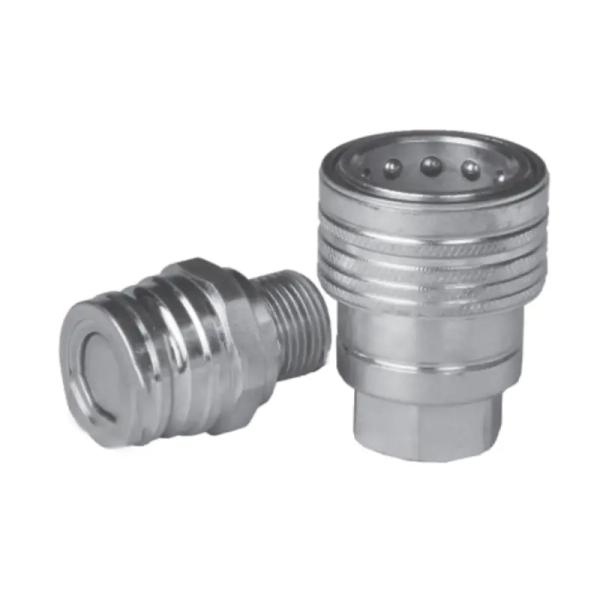

CB-VF Steel Hydraulic Quick Coupling Poppet Valves Oil & Construction Equipment
CB-VF Steel Hydraulic Quick Coupling Poppet Valves Oil & Construction Equipment
Specifications
Brand Name :
carterberg
Model Number :
CB-VF-SP
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Type :
ISO 7241A
Material :
zinc-plated steel, stainless steel
Size :
1/4''-1''
Rated Pressure :
up 2900 PSI（20 MPa）
Sealant materials :
NBR (standard), Viton, EPDM (optional)
Connection :
plug and socket
Valves :
Ball / Poppet
Interchange :
Compatible with Parker 6600, Faster ANV, Stucchi A series, etc.
Description

CB-VF Close type hydraulic quick coupling ( steel )

● Poppet valves avallable to prevent uncoupled leakage.

● Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.

● Critical parts are hardened for durability.

● Dependable ball-locking mechanism holds the mating halves to gether.

● Socket and plug are precision machined from solid bar stock.

● Compatible with FASTER VF Series, GROMELLE Q-9000 Series.

The CB-VF Series brings to the industry a proven design for use on construction equipment, forestry equipment, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.


Technical Specifications

BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/2" 3000 12 -20℃~+100℃ NBR


Dimensional Overview

Female (Socket)

CB-VF Steel Hydraulic Quick Coupling Poppet Valves Oil & Construction Equipment

Body Size PARTNO. L L1 L2 L3 D1 D2 CH1 CH2 T
1/2" CB-VF-SP 88 55.5 48 15.3 44 29 27 32 G1/4 NPT1/4
