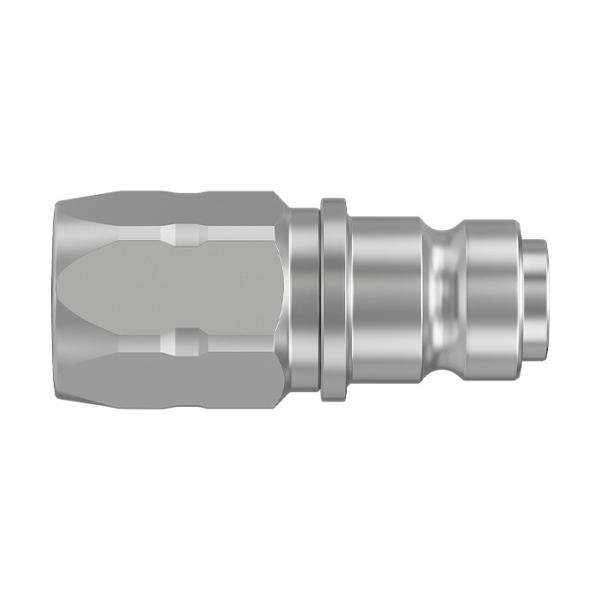

AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min
AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min
AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min
AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min
Specifications
Brand Name :
CARTERBERG
Model Number :
CB-10116
Certification :
IATF16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Name :
Hose coupling
Material seal :
Nitrile (NBR)
Flow capacity :
6.0 l/min
Max. working pressure :
150 MPa
Min. burst pressure :
300 MPa
Flow diameter :
2.5mm
Temperature :
-30°C — +100°C
Material :
AISI 316, Hardened stainless steel
Description

Product Overview

This high-pressure hydraulic coupling is constructed from AISI 316 stainless steel and is suitable for demanding environments. Designed to deliver consistent performance under 150 MPa, it supports a maximum flow rate of 6.0 L/min. Typical applications include offshore hydraulics, rescue systems, and industrial testing.

Note: For advanced structural details, material comparisons, and performance analysis of compatible models, please visit our full technical page for CB-10116 Ultra High Pressure Coupler.


Key Properties

• Material: AISI 316 stainless steel

• Pressure rating: up to 150 MPa

• Flow capacity: 6.0 L/min

• Connection: Non-spill design, CEJN-compatible interface

• Operating temp: -30°C to +100°C

• Thread type: Metric (M14x1.5), others available on request


Application Hints

Ideal for ultra high-pressure systems that require compact connectors and reliable metal-to-metal sealing. Can be used in testing rigs, torque tools, or wherever quick coupling is critical under pressure.
