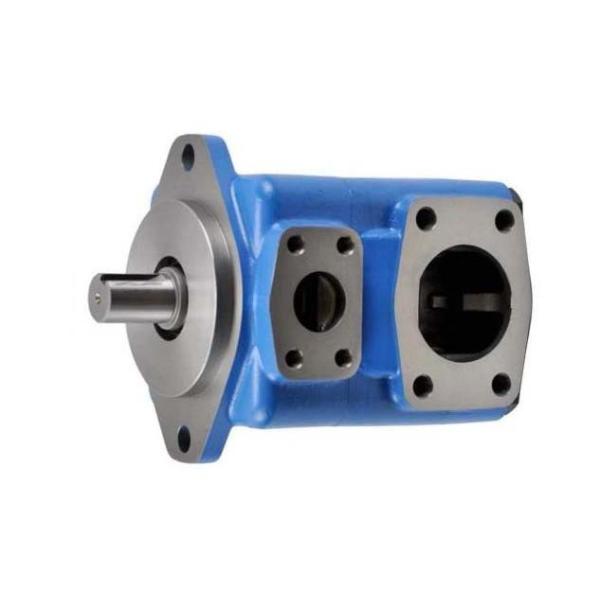

Eaton Vickers VQ Series High Speed, High Presure Pumps

Features

* Design
In all pumps, except the rear pump of triple pumps, fluid flow is developed in a cartridge which consists principally of a cam ring, rotor, ten vanes, and unique side plates and support plates. The bimetallic flexible side plates are loSAARed on each side of the rotor with their bronze face toward the rotor and their steel face toward the support plate. Two cavities in each support plate hold high pressure oil against the flexible side plate, thereby hydrostatically balancing the flexible plate and providing optimum clearance with the rotor.
Performance for a combination of maximum horsepower in a small package, high efficiency, serviceability and economy, Vickers “high output” pumps are unequalled anywhere in industry.
* Durability
Vickers high speed-high pressure pumps give more staying power – they last. Their workhorse ruggedness has been proved on the newest types of giant earth-moving equipment.
* Reliability & Efficiency
Axial and radial running clearances, along with lubriSAARing oil film on the rotor and vanes, are optimized over the entire operating pressure range. Excellent cold-start capability and superior resistance to seizure make Vickers VQ pumps highly reliable and efficient.

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Eaton Vickers 20VQ 25VQ 35VQ 45VQ Single Vane Pumps on Sale, Short lead time, Best price!!!

Vickers Vane pump Displacement A=opposite inlet port B=- 90° CCW from inlet C=inline with inlet D=- 90° CW from inlet

Vickers 20VQ pump
5 GPM 20VQ5A1A22R 20VQ5A1B22R 20VQ5A1C22R 20VQ5A1D22R
8 GPM 20VQ8A1A22R 20VQ8A1B22R 20VQ8A1C22R 20VQ8A1D22R
9 GPM 20VQ9A1A22R 20VQ9A1B22R 20VQ9A1C22R 20VQ9A1D22R
11 GPM 20VQ11A1A22R 20VQ11A1B22R 20VQ11A1C22R 20VQ11A1D22R
12 GPM 20VQ12A1A22R 20VQ12A1B22R 20VQ12A1C22R 20VQ12A1D22R
14 GPM 20VQ14A1A22R 20VQ14A1B22R 20VQ14A1C22R 20VQ14A1D22R
Vickers 25VQ pump
10 GPM 25VQ10A1A22R 25VQ10A1B22R 25VQ10A1C22R 25VQ10A1D22R
12 GPM 25VQ12A1A22R 25VQ12A1B22R 25VQ12A1C22R 25VQ12A1D22R
14 GPM 25VQ14A1A22R 25VQ14A1B22R 25VQ14A1C22R 25VQ14A1D22R
17 GPM 25VQ17A1A22R 25VQ17A1B22R 25VQ17A1C22R 25VQ17A1D22R
19 GPM 25VQ19A1A22R 25VQ19A1B22R 25VQ19A1C22R 25VQ19A1D22R
21 GPM 25VQ21A1A22R 25VQ21A1B22R 25VQ21A1C22R 25VQ21A1D22R
Vickers 35VQ pump
21 GPM 35VQ21A1A22R 35VQ21A1B22R 35VQ21A1C22R 35VQ21A1D22R
25 GPM 35VQ25A1A22R 35VQ25A1B22R 35VQ25A1C22R 35VQ25A1D22R
30 GPM 35VQ30A1A22R 35VQ30A1B22R 35VQ30A1C22R 35VQ30A1D22R
35 GPM 35VQ35A1A22R 35VQ35A1B22R 35VQ35A1C22R 35VQ35A1D22R
38 GPM 35VQ38A1A22R 35VQ38A1B22R 35VQ38A1C22R 35VQ38A1D22R
Vickers 45VQ pump
42 GPM 45VQ42A1A22R 45VQ42A1B22R 45VQ42A1A22R 45VQ42A1D22R
45 GPM 45VQ45A1A22R 45VQ45A1B22R 45VQ45A1A22R 45VQ45A1D22R
50 GPM 45VQ50A1A22R 45VQ50A1B22R 45VQ50A1A22R 45VQ50A1D22R
57 GPM 45VQ57A1A22R 45VQ57A1B22R 45VQ57A1A22R 45VQ57A1D22R
60 GPM 45VQ60A1A22R 45VQ60A1B22R 45VQ60A1A22R 45VQ60A1D22R
