Hydraulic pump test-bed is designed and manufactured according to the national and industrial testing standards, which is suitable for the vane pump, gear pump, piston pump test of performance in single, double and multi-link of motor. This test-bed is a must test equipment for enterprises of hydraulic pump production, application, maintenance or re-manufacturing.

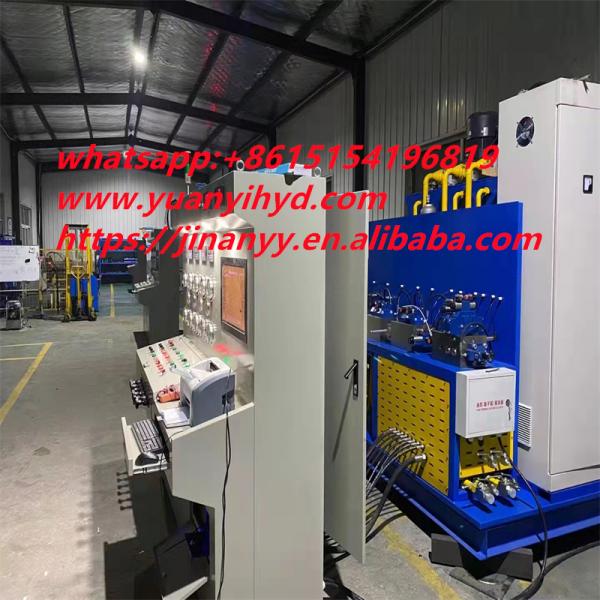

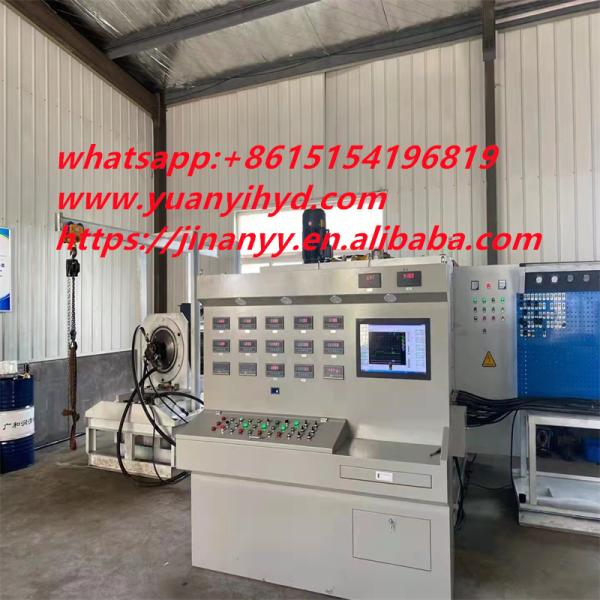

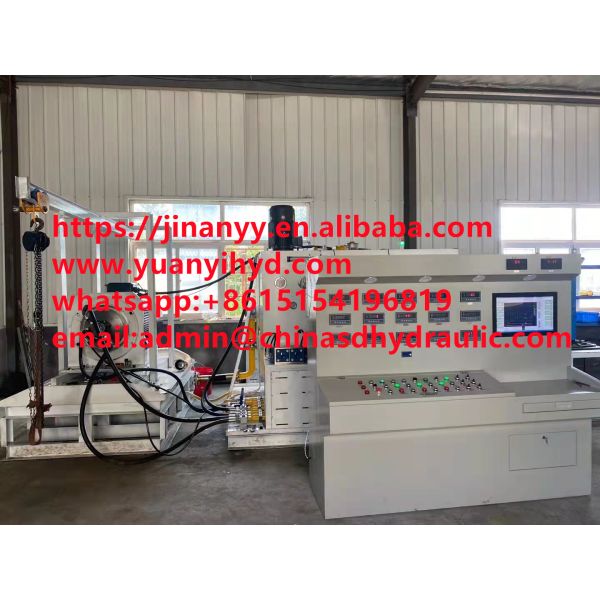

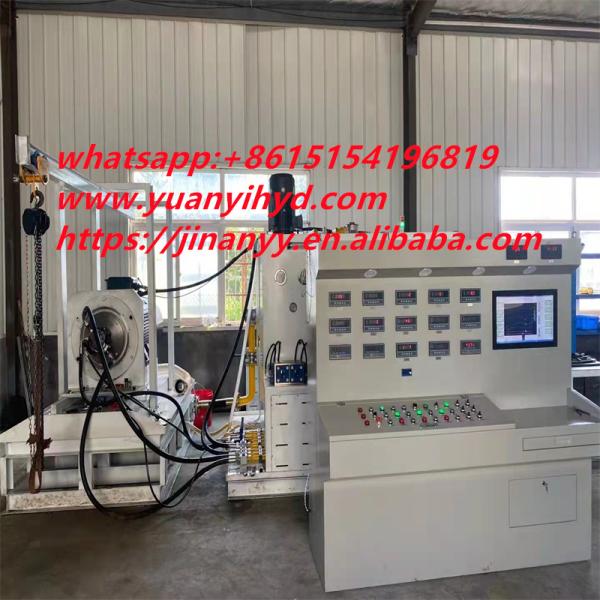

Fully automatic computer acquisition hydraulic pump test bed electrical control adopts high voltage independent type, frequency converter and high voltage part independent placed behind the bench, operation panel and the instrument layout is concise and easy, data acquisition interface is fully functional.
The control part of the electronic control system is based on PLC, collecting the state signal of the hydraulic system, receiving operation instructions and setting information of the parameters.Control mode breakups and automatic mode.The data acquisition system is based on the data sharing of the industrial control machine and the PLC, and the data collected by the PLC is analyzed and processed.Data acquisition software is test condition monitoring, data real-time display, test, process control, test curve drawing, test report generation, participants pump login information storage, fault alarm information display, test reports and test data management, and other functions.

Test project:
1. No-load running test;
2. Displacement verification test;
3. Efficiency test;
4. Pressure pendulum check;
5. Test of variable characteristics;

Technical parameters of test bench:
Maximum pressure: 35MPa, adjustable ratio
Maximum flow: 670L/min, flow capacity
Main motor power: 110kw-6
Tank volume: 1100L
Working medium: 46 # anti-wear hydraulic oil
Oil pollution degree: ISO 19/16
Test instrument precision: national standard B
Power supply: AC380V
Control cabinet power supply: AC220V
