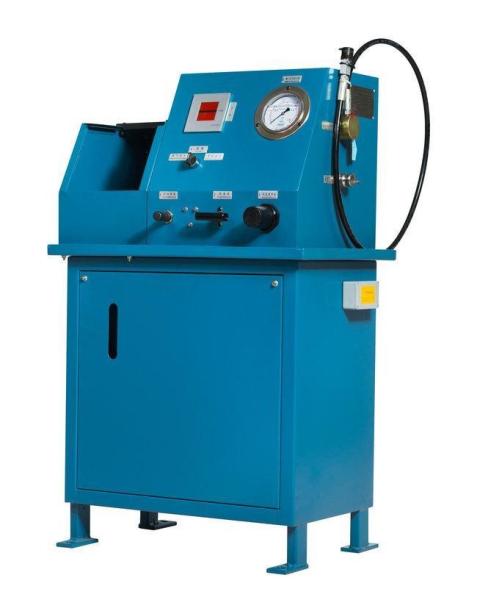

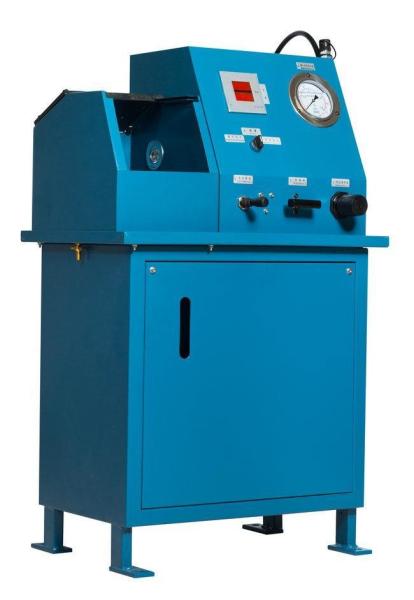

Marine Auxiliary Fuel Valve Test Device
Marine Auxiliary Fuel Valve Test Device
Marine Auxiliary Fuel Valve Test Device
Marine Auxiliary Fuel Valve Test Device
Specifications
Brand Name :
AI LE SEN
Model Number :
HDP1100-D2
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
D/P, T/T
Supply Ability :
100 Set Every month
Delivery Time :
In stock
Packaging Details :
Wooden crate
Product name :
FUEL VALVE TESTER
Model :
HDP1100-D2
Drive way :
Pneumatic
Display mode :
Digital Display
High pressure oil outlet :
ISO228/1-G1/4
OIL TANK CAPACITY :
8L
Description

MARINE FUEL VALVE TESTER HDP1100-D2 FOR ALL MC/ME/MC-C/ME-C/ME-B ENGINE TYPES

Product Brief

For:The pump unit, mainly used to measure its spray condition, is an essential test tool for high-power diesel engines.

1. It has the advantages of big power

2. Wide scope of application: coversLow Speed Diesel Engine.B＆W ALL MC/ME/MC-C/ME-C/ME-B35-98

3. Use digital acquisition system to be more accurate

4. Stainless steel shockproof pressure gauge

Technical parameter

Output pressure

Max.80MPa at 0.8MPa air input

Max. flow of fuel oil

0.4L/cycle at an air input of 0.4Mpa

Pumping speed

30cycle/Min at 0.4MPa air input (no output pressure)

Tank capacity

8L

Dimension

700x450x1120mm

Weight

77kg
Voltage 115~230VAC

Random configuration list

Name Quantity
Spare parts for fuel valve clamping 1 Set
Repair kits 1 Set
Air fitting 1 Set

Purchase Notes

Please provide diesel engine model

SPECIFICATION

The HDP1100-D2 he main feature is that the new pump is electronically controlled.

The pump unit is equipment with a digital display. It shows the working pressure, opening pressure and closing pressure with an accuracy of +/- 1bar.

Notice:The atomizing test cannot be executed.

Featuring

ALL MC/ME/MC-C/ME-C/ME-B ENGINE TYPES.
