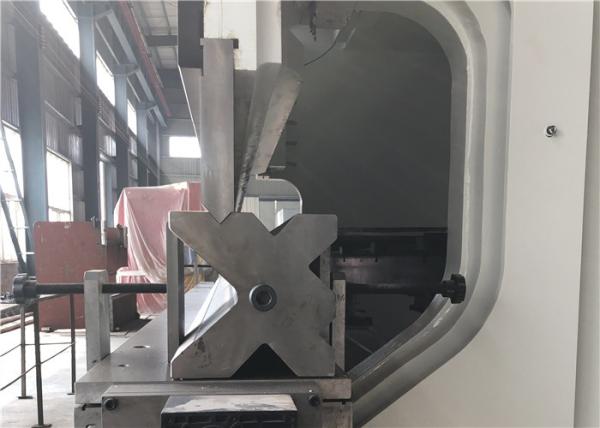

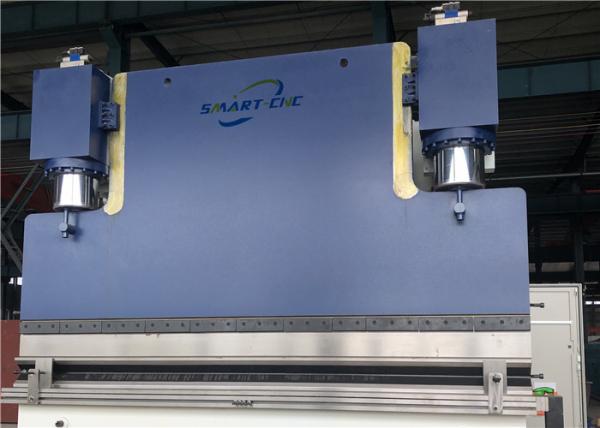

Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Stainless Steel 16mm Hydraulic 600 Ton NC Press Brake
Specifications
Brand Name :
SMART CNC
Model Number :
EB5-600/4000
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1 sets
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets/months
Delivery Time :
2 months
Packaging Details :
Wooden case
Condition :
New
Power :
Hydraulic
Automation :
Automatic
Color :
Customized
Nominal pressure (kn) :
6000
Length :
4000mm
Description

Hydraulic NC/CNC Press Brake 600Ton For Mild Steel And Stainless Steel 16mm

SPECIFICATION FEATURE:
All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
Torsion shaft forced synchronization of mechnaical limit stopper balance, with high precision.
Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of thesliding block, stable and reliable performance.

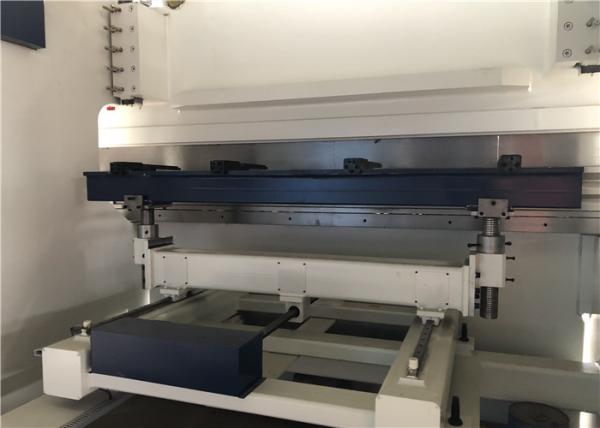

Rear stopper and the sliding block have electrical adjustment for their stroke, with manual fine tuning, and
digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with tilting warp offset mechanism.
For bending machine from 250 t up synchronization mechanism of mechanical or electrical hydraulic transmission is fitted, lower working table is fitted with warp offset mechnaism. Multi machine combined operation is possible

No Name EB5-600/4000
1 Nominal pressure 6000 KN
2 Working table length 4000 mm
3 Distance between uprights 3100 mm
4 Ram stroke 300 mm
5 Max.opening height 650mm
6 Throat depth 500 mm
7 Approaching speed 80 mm/s
8 Working speed 8-12 mm/s
9 Returning speed 60 mm/s
10 Main Motor power 37kw
11 Overall dim. (L*W*H) 4500*3000*3600mm
12 Weight 37,500 KGS

Q : Are you factory or manufacture?

A : YES.We are group factories agent exporting company.We have more than 10 directly factories

Q : What's your delivery time?
A : 30 days for machine and 20 days for tools and blades,and spare parts after confirmed order with payment

Q : What's kinds of shipping you choose after order?
A : Usually we choose FCL,Or LCL by sea.
We also can supply door to door shipping service by air or intermational express.

Q : Which kinds of Payment and MOQ?
A : We can accept TT,LC or Trade assurance.MOQ:1 set for machine order

Q : What's your packing?
A : Fumigation-free plywood case for small machine in LCL Shipment by sea,and blades and tools and spar parts.
If FCL shipping by sea we just professional fixed in container without cover.

Q : What's your Warranty Time?
A : THREE Year Warranty for machine,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free.

Q : Can you support overseas commissioning or traning service?
A : YES.We CAN.But the buyer need to afford this cost,tickets and foods,hotel etc.
