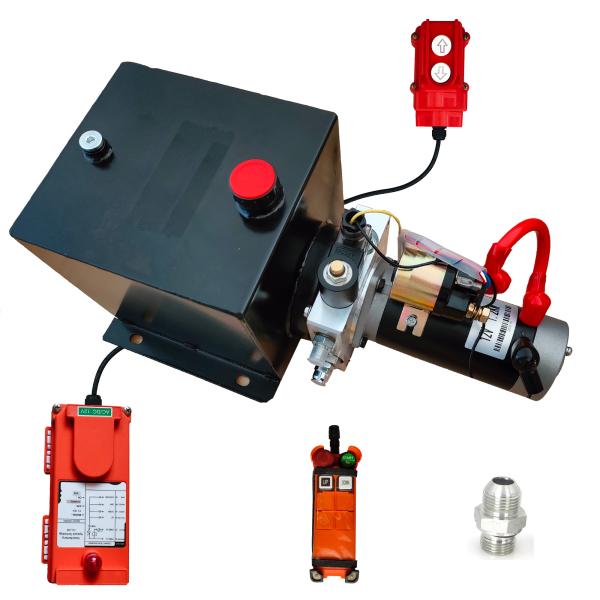

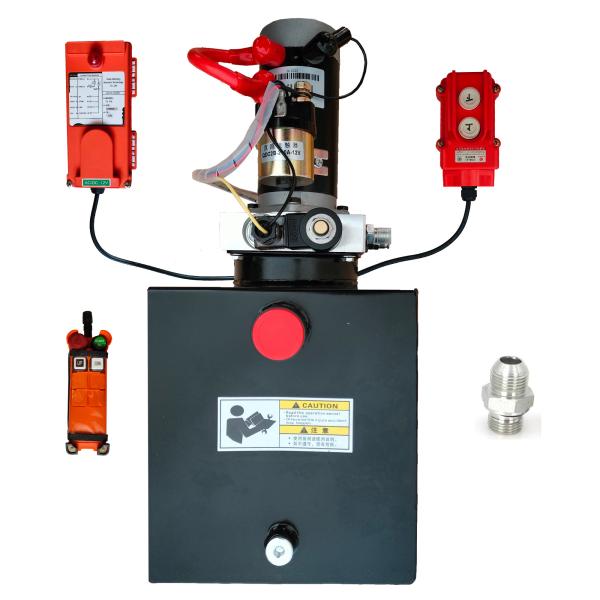

8 Quart Single Acting 12v Dc Hydraulic Power Pack For Dump Trailer Car Lifting
8 Quart Single Acting 12v Dc Hydraulic Power Pack For Dump Trailer Car Lifting
8 Quart Single Acting 12v Dc Hydraulic Power Pack For Dump Trailer Car Lifting
8 Quart Single Acting 12v Dc Hydraulic Power Pack For Dump Trailer Car Lifting
Specifications
Place of Origin :
China
Brand Name :
RenHeng
MOQ :
1
Packaging Details :
carton
Delivery Time :
5-15 work days
Payment Terms :
L/C,T/T
Supply Ability :
200pcs per month
Drive Mode :
Electric
Structure :
standard
Pump Type :
Gear Pump
Motor Type :
AC
Minimum Oeder Quantity :
1pcs
Mounting :
Horizontal & Vertical
Color :
Customerized
Odm :
yes
Description
  • 【Motor】The voltage is 12 volts. The power is 1.2KW.
  • 【Parameter】The displacement of the gear pump is 1.6ml/r. The pressure is 2200PSI and can be adjusted. The fuel tank is 8 Quart. The port is SAE # 6.
  • 【Design】It adopts a lightweight design and is more energy-efficient.It is fixed in six positions for greater stability.
  • 【Installation】 Easy to install, Great stability and long service life.
  • 【Quality】 Manufacturer, high-end motor.
  • 【Function】1.Wireless remote control. Control the distance by 30 meters. 2.Handle switch control.
  • Effortless Installation - This hydraulic power unit arrives fully assembled. The wiring is straightforward and accompanied by clear operating instructions. We even include extra connectors for easy replacement.

  • Introduction to Hydraulic Power Unit

    The hydraulic power unit is an organic combination of gear pump, motor, integrated valve block, oil tank and other components.

    Its working principle is to use the incompressibility of liquids and the pressure conductivity of liquids to achieve the movement of mechanical equipment. After forming high-pressure liquid through a gear pump. Liquid flows into the hydraulic control valve. The hydraulic control valve is responsible for controlling the hydraulic system to achieve power control of mechanical equipment.

    Hydraulic power unit / hydraulic pump technical parameters

  • Voltage: DC12V, 24V, 48V, 60V, 72V, AC110V, 220V
  • Power: 0.75-4KW
  • Flow rate: 0.26-5.5GPM, Port size: SAE # 6
  • Relief valve pressure: 2200PSI, adjustable.
  • Fuel tank capacity: 0.75-25Quart
  • Actions: single acting and double acting
  • Control: manual control and wireless remote control
  • Installation methods: vertical installation and horizontal installation
