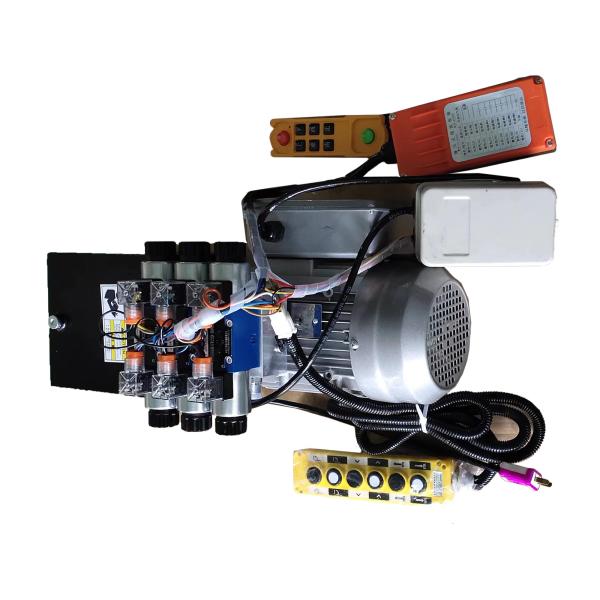

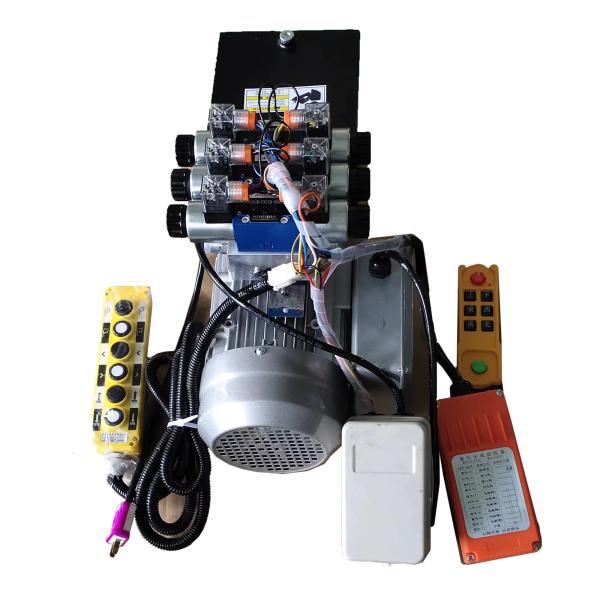

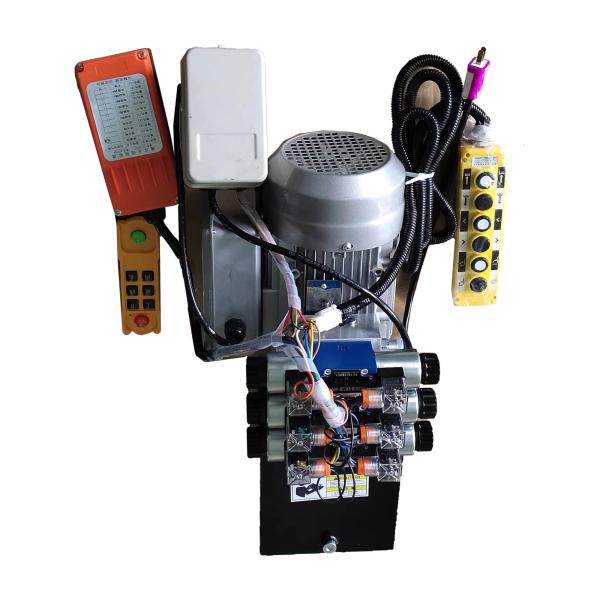

Manual Control AC Hydraulic Power Pack Pump Power Unit Customerized
Manual Control AC Hydraulic Power Pack Pump Power Unit Customerized
Manual Control AC Hydraulic Power Pack Pump Power Unit Customerized
Manual Control AC Hydraulic Power Pack Pump Power Unit Customerized
Manual Control AC Hydraulic Power Pack Pump Power Unit Customerized
Manual Control AC Hydraulic Power Pack Pump Power Unit Customerized
Specifications
Place of Origin :
China
Brand Name :
RenHeng
MOQ :
1
Packaging Details :
carton
Delivery Time :
5-15 work days
Payment Terms :
L/C,T/T
Supply Ability :
200pcs per month
Condition :
New
Operating Temperature :
0-60°C
Motor Type :
AC Motor
Color :
Customerized
Control Method :
Manual
Description
  • 【Motor】The voltage is 110,220,380 volts. The power is 1.1,2.2,3,4 KW.
  • 【Parameter】The displacement is 1.6,2.4,3.6,4.5 L/min. The pressure is 2200PSI and can be adjusted. The fuel tank is 8 Quart. The port is SAE # 6.
  • 【Design】It adopts a lightweight design and is more energy-efficient.It is fixed in eight positions for greater stability.
  • 【Installation】 Easy to install, Great stability and long service life.
  • 【Quality】 Manufacturer, high-end motor.
  • 【Function】1.Wireless remote control. Control the distance by 30 meters. 2.Handle switch control.

  • Introduction to Hydraulic Power Unit

    The hydraulic power unit is an organic combination of gear pump, motor, integrated valve block, oil tank and other components.

    Its working principle is to use the incompressibility of liquids and the pressure conductivity of liquids to achieve the movement of mechanical equipment. After forming high-pressure liquid through a gear pump. Liquid flows into the hydraulic control valve. The hydraulic control valve is responsible for controlling the hydraulic system to achieve power control of mechanical equipment.

    The hydraulic power unit has a wide range of applications in modern mechanical equipment and is known as the "heart" of modern machinery.

    Manufacturer's production

    We are a manufacturer of power units. We can directly control product quality. We can provide sufficient production, multiple specifications, support customization.

    Hydraulic power unit / hydraulic pump technical parameters

  • Voltage: DC12V, 24V, 48V, 60V, 72V, AC110V, 220V
  • Power: 0.75-4KW
  • Flow rate: 0.26-5.5GPM, Port size: SAE # 6
  • Relief valve pressure: 2200PSI, adjustable.
  • Fuel tank capacity: 0.75-25Quart
  • Actions: single acting and double acting
  • Control: manual control and wireless remote control
  • Installation methods: vertical installation and horizontal installation
