24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
Specifications
MOQ :
1
Supply Ability :
200pcs per month
Delivery Time :
5-15 work days
Packaging Details :
carton
Price :
Contact us
Place of Origin :
China
Brand Name :
RenHeng
Payment Terms :
L/C,T/T
Operation mode :
hydraulic
Motor type :
Horizontal & Vertical
Control :
Manual control
Tank shape :
Cylindrical
System Pressure :
2200psi
Usage :
Pallet Jack Use
Description

  • Hydraulic Station 24V DC Control 1.2 KW 2200PSI Lightweight Hydraulic Pump For Pallet Jack Use

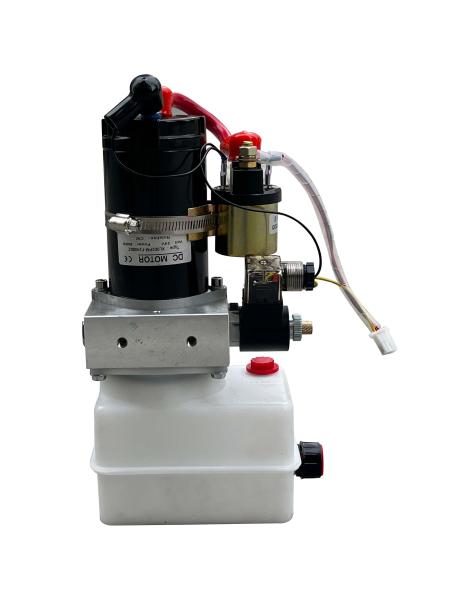

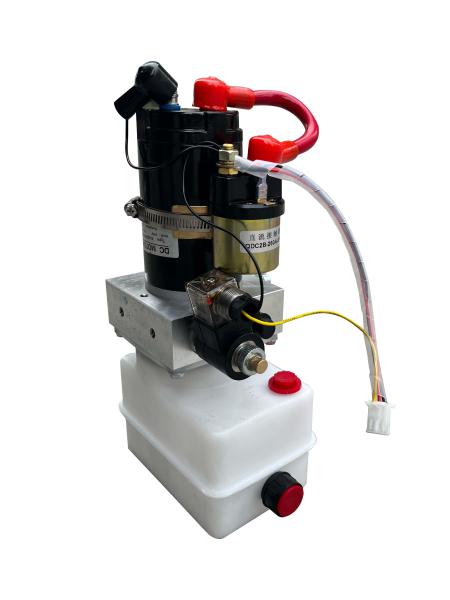

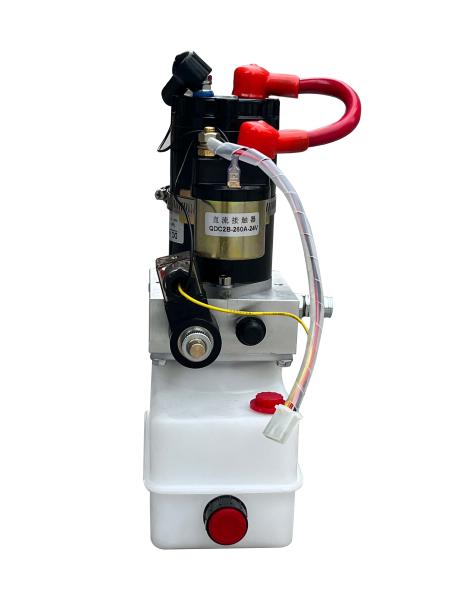

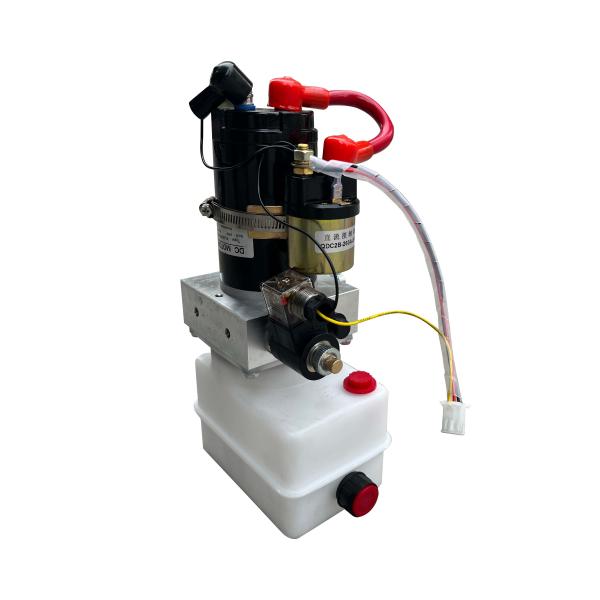

1. Production details: This hydraulic power unit is a single-acting operation one, which has a 8 quart plastic tank and designed with a 24VDC motor that can provide strong power for Pallet Jack use.

2. Easy to use: This hydraulic power unit has been fully assembled in advance. and wiring is simple but reliable, and additional SAE#6 connectors included in the package.

3. Unique design: This hydraulic power unit adopts lightweight design, which is more environmentally friendly and energy-efficiently. and has a higher stability, greatly improve the service life.

4. Rapid response: This hydraulic power unit has a powerful motor and pump, which is quick to start and quick to output oil, without latency time.

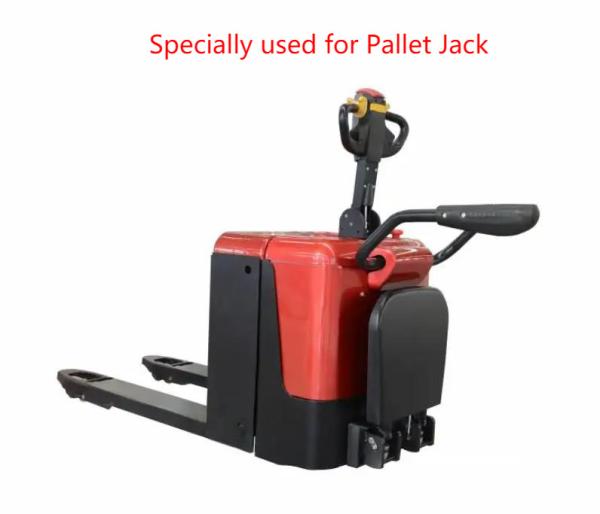

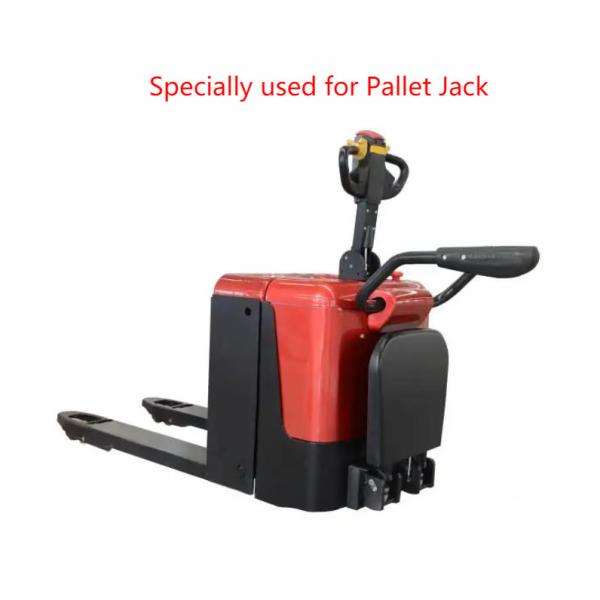

5. Wide application: This power unit is widely used in Pallet Jack, with high working efficiency.

  • Specification:
　 Description Specification Optional
1 Application Scenario Pallet Jack —
2 Operating Handle Yes —
Wireless Romote Control No Optional
3 Voltage/DC or AC 24VDC DC:24V, 48V, 60V, 72V;
Moter Power 1.2kW 0.75kW ~ 4.0kW, Customizable
4 Blocks 1 —
Operation Mode single-Acting —
5 Nominal Flow 0.26 ~ 5.5GPM
System Pressure 2200psi Adjustable
6 Tank Capacity 8 Quart 0.75 ~ 25Quart, Customizable
Tank Material Plastic Metal
Tank Shape Rectangular Cylindrical
Mount Position Vertical mount Horizontal mount
7 Connector Size SAE #6 —
Connector Spare Parts 2 —

  • Application:
  • 24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
