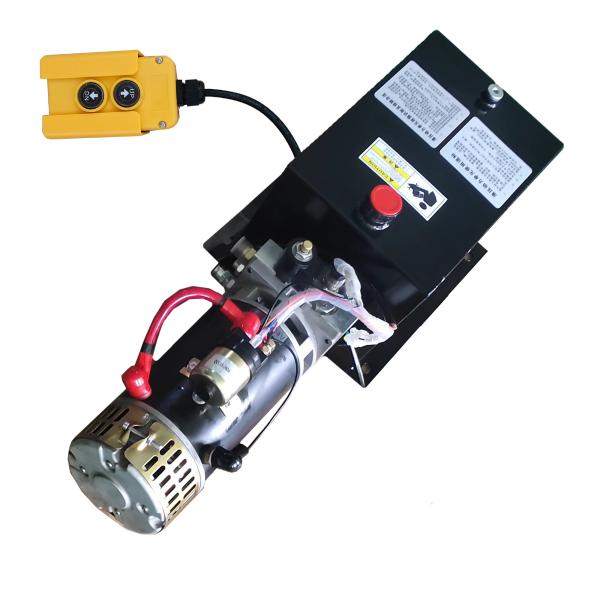

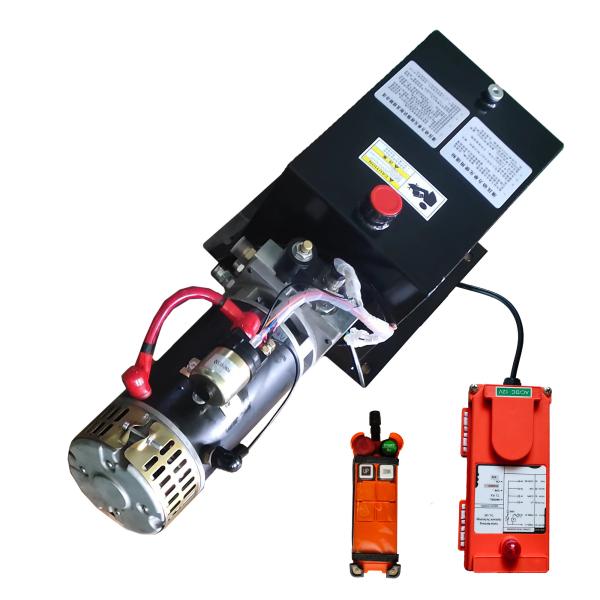

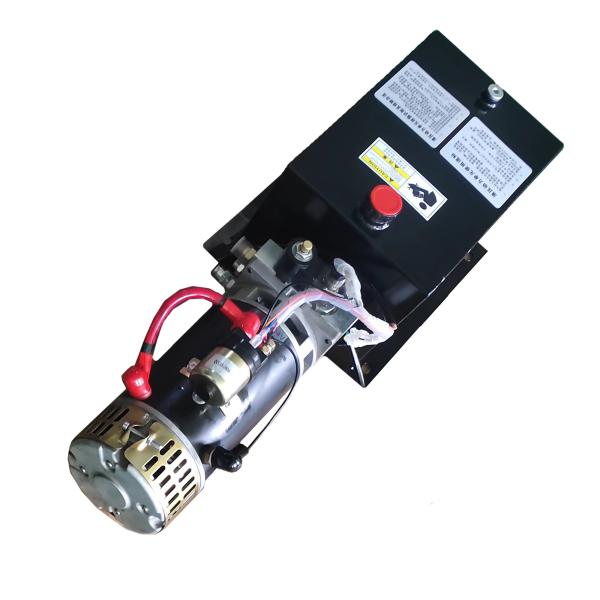

High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
High Pressure 2200PSI Single Acting Hydraulic Power Unit With Wireless Remote Control
Specifications
MOQ :
1
Price :
120-280
Place of Origin :
China
Brand Name :
RenHeng
Packaging Details :
carton
Delivery Time :
5-15 work days
Payment Terms :
L/C,T/T
Supply Ability :
200pcs per month
Oil Port :
NPTF/SAE
Action :
Single Acting
Cylinder :
double acting hydraulic oil cylinder
Materail :
Stainless Steel
Pressure :
high pressure
Description
  • 【Parameter】The displacement of the gear pump is 1.6ml/r. The pressure is 2200PSI and can be adjusted. The fuel tank is 8 Quart.
  • 【Design】It adopts a lightweight design and is more energy-efficient.It is fixed in six positions for greater stability.
  • 【Function】1.Wireless remote control. Control the distance by 30 meters. 2.Handle switch control.
  • 【Quality】 Manufacturer, high-end motor.

Introduction to Hydraulic Power Unit

The hydraulic power unit is an organic combination of gear pump, motor, integrated valve block, oil tank and other components.

Its working principle is to use the incompressibility of liquids and the pressure conductivity of liquids to achieve the movement of mechanical equipment. After forming high-pressure liquid through a gear pump. Liquid flows into the hydraulic control valve. The hydraulic control valve is responsible for controlling the hydraulic system to achieve power control of mechanical equipment.

The hydraulic power unit has a wide range of applications in modern mechanical equipment and is known as the "heart" of modern machinery.

Manufacturer's production

We are a manufacturer of power units. We can directly control product quality. We can provide sufficient production, multiple specifications, support customization.

Hydraulic power unit / hydraulic pump technical parameters

  • Voltage: DC12V, 24V, 48V, 60V, 72V, AC110V, 220V
  • Power: 0.75-4KW
  • Flow rate: 0.26-5.5GPM, Port size: SAE # 6
  • Relief valve pressure: 2200PSI, adjustable.
  • Fuel tank capacity: 0.75-25Quart
  • Actions: single acting and double acting
  • Control: manual control and wireless remote control
  • Installation methods: vertical installation and horizontal installation
