Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Kobelco Excavator Swing Motor M2X63-16T for R130-5 DH150-7 R150-7
Specifications
Description

Hyundai excavator M2X63-16T R130-5 DH150-7 R150-7 swing motor assy 401-00003 401-00003A

PRODUCT DESCRIPTION
Model: R130-5 DH150-7 R150-7 Part number: 401-00003 401-00003A M2X63-16T
Brand: hyundai Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T,Tradeassurance
Delivery Time: 3-5 days (depend on order) Means of Transport: By Sea, Air or DHL/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

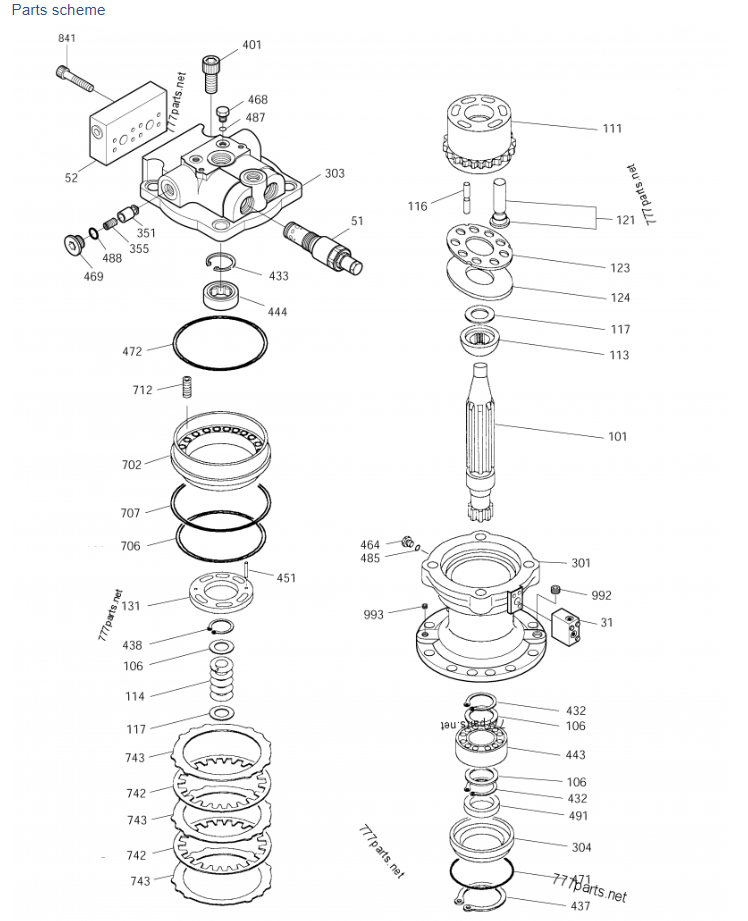

List of spare parts

# Part No Part Name Comment Qty. Price request
- 401-00003 SWING MOTOR 29 kg 1
- 401-00003A SWING MOTOR 1
- 401-00003B SWING MOTOR 43 kg 1
31 717022 VALVE, BRAKE(4BAR) 1 kg 1
31 710413 VALVE, BRAKE 1
51 232712 RELIEF VALVE 2
52 717326 SWING REACTIONLESS VALVE 4 kg 1
101 115347B DRIVE SHAFT 1 kg 1
106 115349 SPACER 3
111 115355B BLOCK, CYLINDER 2 kg 1
113 122233B BUSH, SPHERICAL 1
114 214440A SPRING, CYL(=3553700519) 1
116 214439A ROD, PUSH 12
117 115353 SPACER F 2
121 705617 PISTON & SHOE ASS'Y 1 kg 1 SET
123 115354 RETAINER 1
124 115351D S/PLA=115351C, 3753700499 1
131 115359A PLATE, VALVE 1
301 119700C CASING D1 15 kg 1
303 115360B CASING, VALVE 10 kg 1
304 115348 FRONT COVER=3753700500 1
351 115361 PLUNGER 2
355 214444A SPRING 2
401 200716 BOLT, SOCKET M16X2.0X75 4
432 202604 RING, SNAP 2
433 115350 RING, SNAP 1
437 202584 RING, SNAP 1
438 202574 RING, SNAP(-42(R) 1
443 225679 BEARING, ROLLER 1
444 225678 BEARING, ROLLER 1
451 214442 PIN, SPRING 2
464 108844 PLUG, VP 1
468 108844 PLUG, VP 2
469 108889 PLUG, RO 2
471 206594 O-RING IBG80 1
472 214443 O-RING 1
485 201689 O-RING 1BP11 1
487 201689 O-RING 1BP11 2
488 201713 O-RING 1BP20 2
491 214436 SEAL, OIL 1
702 115358 BRAKE PIST(=3733700470) 1 kg 1
706 214434 O-RING 1
707 214435 O-RING 1
712 214445A SPRING, BRAKE 20
712 236560 SPRING, BRAKE 20
742 129468 PLATE, FRUC(=3743700436) 3
743 117975 PLATE, SEPARATION 4
841 232214 BOLT, SOCKET M18X1.25X55 2
992 208287 PLUG, PT OBP12 1
993 206699 PT PLUG 3/4 1

The Rotating Engine for Extreme Sites”
On 45° mining slopes, integrated wet brakes deliver 180kN holding force to prevent sliding. Zero-backpressure makeup valves enable instant cold starts (-30℃). Every degree of rotation defies gravity.
