Specifications
Description

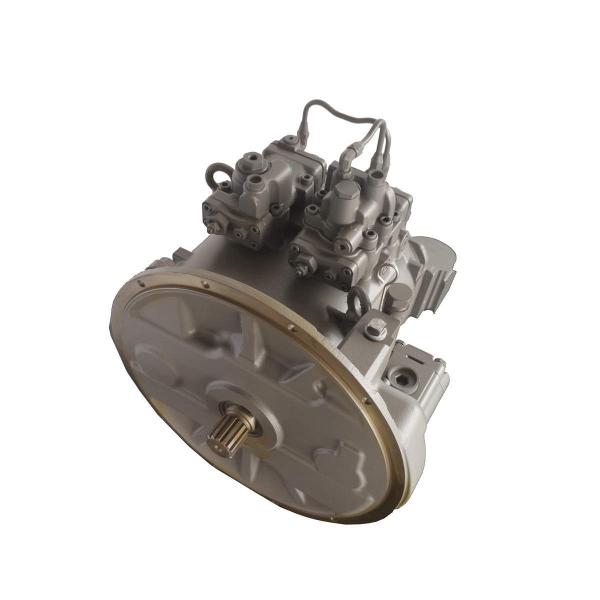

ZX200 HPV102 Excavator Main Pump 9191164 9195235 Hitachi Hydraulic Pump Assembly
The Belparts excavator hydraulic pump is a high-performance hydraulic power component specifically designed for various types of excavators. Incorporating advanced design concepts and manufacturing processes, it ensures stable and efficient hydraulic power output under various working conditions. Our hydraulic pump series covers the needs of excavators from small to large sizes, offering exceptional durability and reliability.
Product Specifications
Model: ZX200 Part Name: Hydraulic Main Pump
Part Number: 9191164 9195235 Place of Origin: Other Country
Condition: Original & OEM Warranty: 6 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C, T/T, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL
Guarantee: We will check and send detailed pictures to buyers for confirmation
List of Spare Parts
# Part No Part Name Qty.
9191164 PUMP DEVICE (FOR ASSEMBLY OF MACHINE) 1
9195235 PUMP DEVICE (FOR TRANSPORTATION) 1
01 1027184 . CASING; GEAR 1
03 3063840 . GEAR; PILOT 1
04 3055594 . SHAFT; GEAR 1
08 958740 . BRG.; BALL 2
09 962002 . RING; RETAINING 1
10 991725 . RING; RETAINING 1
30 3063842 . GEAR 1
31 3063843 . GEAR 1
32 4274552 . RING; RETAINING 2
34 4099290 . PIN; SPRING 2
43 4310055 . SEAL; OIL 1
44 991725 . RING; RETAINING 1
61 4438059 . GAUGE; LEVEL 1
62 9743977 . PIPE 1
63 9742779 . PACKING 1
64 M340816 . BOLT; SOCKET 2
68 4265372 . SENSOR; REVOL. 1
69 4306888 . O-RING 1
70 A590106 . WASHER; PLANE 1
71 M340616 . BOLT; SOCKET 1
86 4234782 . PLUG 1
87 4092534 . PLUG 1
87A 4509180 .. O-RING 1
103 . PUMP; UNIT 1
112 . NAME-PLATE 1
113 M492564 . SCREW; DRIVE 2
120 4276918 . PUMP; GEAR 1
121 M341030 . BOLT; SOCKET 2
122 984054 . WASHER; SPRING 2
123 4114402 . WASHER 2
127 4369148 . PIPE; E 1
130 4293950 . ELBOW; S 2
130A 957366 .. O-RING 1
133 4416605 . COUPLING 1
133A 4463992 .. HUB 1
133B 4334899 .. SCREW; SET 2
133C 4101345 .. PIN; SPRING 4
133D 4463993 .. INSERT 4
133E 4334894 .. BOLT; SOCKET 4
133F 4463994 .. ELEMENT 1
136 8058352 . PACKING 1
137 J901645 . BOLT 6
138 A590916 . WASHER; SPRING 6
200 4451036 KIT; SEAL 1
The gear pump is mostly used as an auxiliary pump in the excavator hydraulic system, and its principle is based on "volume change due to gear meshing". There is a pair of meshing driving gears and driven gears in the pump body, and a sealed working chamber is formed between the gears, the pump body, and the end cover. When the driving gear rotates under the drive of the engine, the driven gear is meshed and driven to rotate in the opposite direction. At this time, on the suction side of the gear (the side where the meshing teeth are gradually separated), the volume of the working chamber changes from small to large, forming a vacuum, and the hydraulic oil in the oil tank enters the working chamber through the suction port under the action of atmospheric pressure; as the gear continues to rotate, the sucked oil is brought to the discharge side (the side where the meshing teeth are gradually meshed), the volume of the working chamber changes from large to small, and the oil is squeezed and discharged from the pressure oil port, completing the cycle of "oil suction - oil discharge" and realizing the conversion of mechanical energy to hydraulic energy.
ZX200 HPV102 Excavator main pump 9191164 9195235 hitachi hydraulic pump assembly ZX200 HPV102 Excavator main pump 9191164 9195235 hitachi hydraulic pump assembly ZX200 HPV102 Excavator main pump 9191164 9195235 hitachi hydraulic pump assembly
Frequently Asked Questions
1. What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2. What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, the delivery time will be communicated in advance, usually 3-7 days.
3. What are your main products?
We are specialized in spare parts for excavator hydraulic system, such as travel motor, swing motor, travel gearbox, swing gearbox, gear parts, hydraulic pump, hydraulic parts, etc. If you need other excavator parts, we also can supply as your requirements.
