Specifications
Description

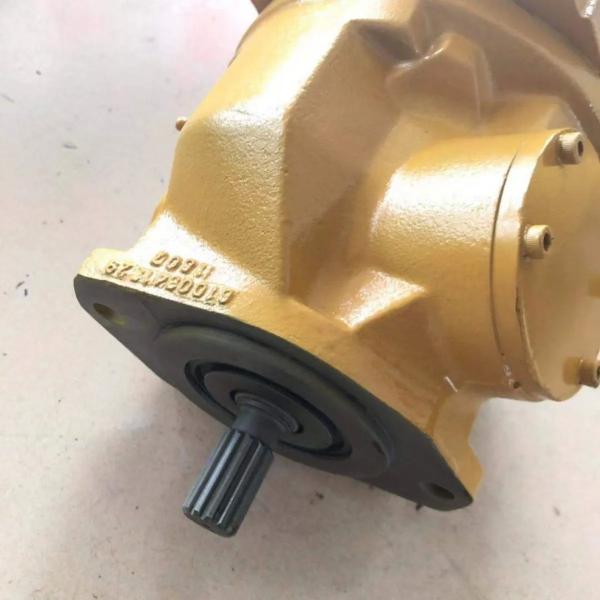

Excavator 423-0097 423-0097 02 AP2D25 High-pressure hydraulic pump for mini excavators for E305 E305-5 E306
Product Attributes
AttributeValue
Machine modelE305 E305-5 E306
Pump number423-0097 423-0097 02
Part numberAP2D25
Product nameExcavator main pump
HighlightE305 E305-5 E306 Excavator hydraulic pump replacement 423-0097 423-0097 02
Part name hydraulic pump assembly
Brandbelparts
Place of OriginGuangdong, China


The axial piston hydraulic pump is the core component of the main hydraulic system in medium and large excavators. Its design centers on the principle of "reciprocating movement of pistons to change volume". The cylinder block inside the pump is arranged coaxially with the drive shaft, and multiple piston holes are evenly distributed around the circumference of the cylinder block. Each piston in the hole is in contact with the swash plate through a slipper. When the engine drives the drive shaft to rotate, the cylinder block rotates synchronously. Under the combined action of the inclined thrust of the swash plate and the return spring, the piston makes a reciprocating linear movement along the piston hole: when the piston moves from the bottom to the top of the cylinder block, the sealed volume in the piston hole increases, creating a negative pressure, and low-pressure hydraulic oil is sucked from the oil tank through the suction valve; when the piston moves from the top to the bottom, the sealed volume shrinks, the oil is compressed, and the high-pressure oil is discharged through the pressure valve after the pressure rises, finally converting the rotational mechanical energy of the engine into the pressure energy of the hydraulic oil.

ModelPump number WeightSize
ЕС210K3V112DT-9N-14ТK3V112DT-9N-14Т ( ЕС210) CH134KG77*33*46
R210-7K3V112DT-9С-12ТK3V112DT-9С-12Т (R210-7) CH134KG77*33*46
JS220K3V112DTP-9С-14ТK3V112DTP-9С-14Т (JS220) CH139kg77*33*46
DX225K3V112DTP-9N-12ТK3V112DTP-9N-12Т (DX225) CH139kg77*33*46
S255K3V112DTP-HNOV-14TK3V112DTP-HNOV-14T(PTO) (S255) CH147KG77*33*46
S225LC-VK3V112DT-HNOV-12TK3V112DT-HNOV-12T (S225LC-V) CH134KG77*33*46
DH258-5-7K3V112DTP-HNOV-14TK3V112DTP-HNOV-14T(PTO) (DH258-5-7,S255LC-V,S225NLC-V) CH147KG70*45*46
ЕС140K3V63DT-9N-14ТK3V63DT-9N-14Т (ЕС140) CH98KG72*30*42
R130K3V63DT-9С-14ТK3V63DT-9С-14Т (R130,R140-7, JS130,JS160) CH98KG72*30*42
JS160K3V63DTP-9С-14ТK3V63DTP-9С-14Т (JS160) CH100kg72*30*42
DX300K5V140DTP-9N-17ТK5V140DTP-9N-17Т (DX300) CH139KG77*33*52
EC460K5V200DTH-9N-17ТK5V200DTH-9N-17Т (EC460,R480-9S) CH210KG92*33*51
R450-7K5V200DTH-9С-17ТK5V200DTH-9С-17Т (R450-7) CH210KG92*33*51
EC180K5V80DT-9NEC180 K5V80DT-9N 12Т CH110KG72*30*42
ZAX160K3V63DTP-9N-14ТZAX160 K3V63DTP-9N-14Т with PTO CH110KG70*45*46
JS160K3V63DTР-9С-14ТJS160 K3V63DTР-9С-14Т with PTO CH100KG72*30*42
Excavator 423-0097 423-0097 02 AP2D25 High-pressure hydraulic pump for mini excavators for E305 E305-5 E306
Frequently Asked Questions
1. What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2. What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3. What are your main products?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts, gear parts, etc. If you need other excavator parts, we also can supply as your requirements.
4. How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5. How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
