High Accuracy vertical Hydraulic Press Machine , 160 Ton Hydraulic Press Equipment
High Accuracy vertical Hydraulic Press Machine , 160 Ton Hydraulic Press Equipment
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 5000-10000 Per Unit
Payment Terms :
L/C, T/T
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
C-Type Frame
Drive :
Oil Hydraulic
Control :
PLC
Feature :
High Accuracy
Application :
Motors
Description

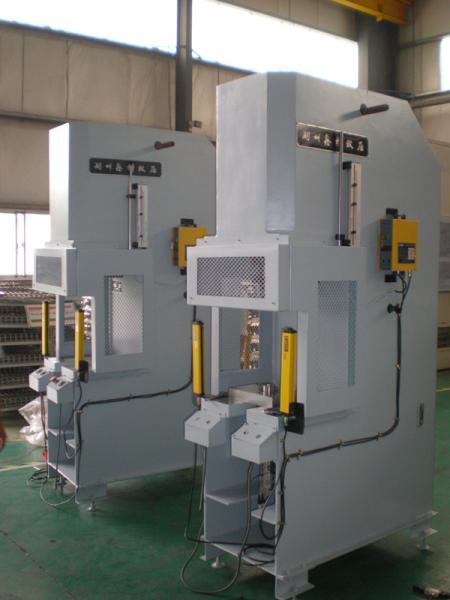

160T C-Frame Hydraulic Bearing Fitting Press

It is C type frame hydraulic press specialized in the leveling and press fitting of shafts, profiled parts, sleeve parts. It is also used for bending, stamping, drawing of metal sheet.

Operation mode: Manual, automatic

Application:

Widely applied to the industries of machine tools, combustion engines, textile machinery, shafts, bearings, and motors.

Technical Data:

Item Unit Y41-160
Nominal force kN 1600
Working pressure of medium MPa 25
Stroke of slider mm 500
Throat depth mm 325
Opening daylight Leveling mm 700
Press fitting mm 1000
Worktable size L.R Leveling mm 2000
Press fitting mm 750
F.B. mm 600
Worktable height above the floor Leveling mm 1000
Press fitting mm 700
Blanking hole size mm φ200
Speed of slider Descend mm/s 27
Return mm/s 80
Overall size of machine F.B. mm 2025
L.R. mm 2000
Height above the floor mm 2875
Motor power kW 11
Machine weight t 8
