Vehicle Brake Pad Automotive Hydraulic Press 630T Working Force Adjustable
Vehicle Brake Pad Automotive Hydraulic Press 630T Working Force Adjustable
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-100000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
15 Units Per Month
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
H-Frame
Drive :
Oil Hydraulic
Control :
PLC
Application :
Friction Materials in Automotive Industry
Description

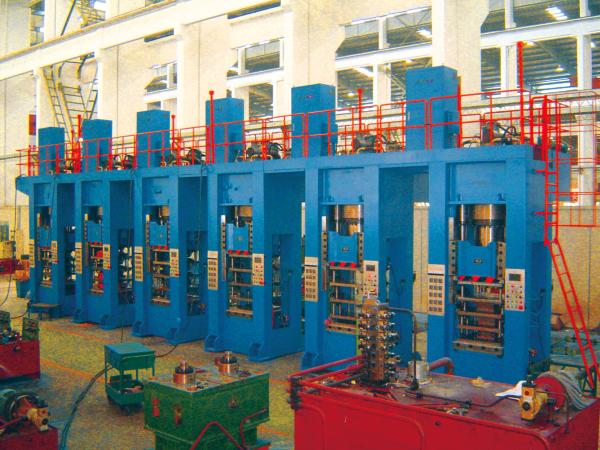

630T Vehicle Brake Pad Hydraulic Press

Features:

  1. Finite element analyzed straight sided frame or four columns frame, high rigidity and precision
  2. Latest closed-loop control technology, digital display, slider position, working force and speed can be preset
  3. Frequency conversion is used for saving electric power
  4. Intellectual temperature control system, accuracy is ±5℃, the temperature of each thermal component is real-time monitored
  5. Touch-screen, communication module is used
  6. Exhaust discharge system, multi-layer die base heating control system is used for better molding quality

Application:

Suitable for the production of brake block in the automotive industry

Accessories for option:

Mould heating system

Light curtain safety device

Intellectual temperature control system

Technical Data:

Item Unit Y79-630
Nominal force kN 6300
Return force kN 650
Ejection force kN 630
Ejection stroke kN 300
Working pressure of medium MPa 25
The opening daylight mm 1500
Stroke of slider mm 800
Size of worktable L.R. mm 1300
F.B. mm 900
Speed of slider Descend mm/s 120
Working mm/s 2/5
Exhausting mm/s 3-5
Return mm/s 60
Ejecting mm/s 90
Power Kw 15
Plunger pump YCY 　
Frame type 　 Straight-sided
