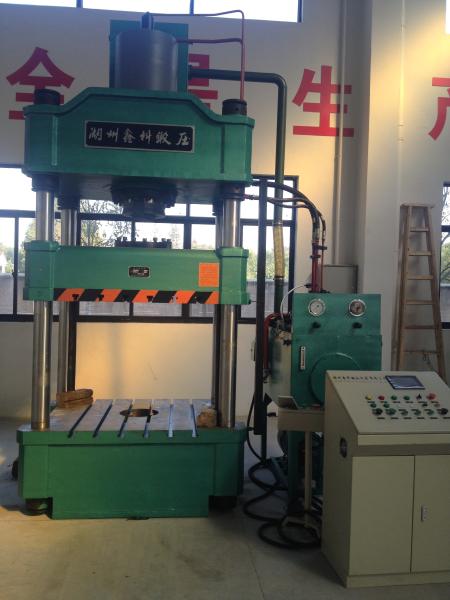

Thermoset Compression Molding Press For SMC Fiberglass Covers Cellar
Thermoset Compression Molding Press For SMC Fiberglass Covers Cellar
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
10 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Four Columns
Drive :
Oil Hydraulic
Control :
PLC
Application :
SMC, BMC Molding
Description

Y71 315T Servo Hydraulic Molding Press for Sheet Molding Composite

Features:

  1. Finite element analyzed straight sided frame or four columns frame
  2. Latest closed-loop proportional control technology, digital display, slider position, working force, and working speed can be preset.
  3. Frequency conversion technology

Application:

Suitable for the thermal molding of various kinds of plastic materials. e.g. SMC, BMC, DMC. GMTLFT-D in following industries:

  1. Aviation
  2. Traffic
  3. Shipbuilding
  4. Automotive
  5. Architecture
  6. Petrochemical
  7. Energy

Accessories for option:

Moveable worktable

Ejection device

Knockout core

Painting

Vacuum system

Heating system

Light curtain safety device

Technical Data:

Item Unit Y71-315
Nominal force kN 3150
Pre-pressing force kN 1000
Force of opening mould kN 630
Force of ejection kN 630
Size of worktable L.R. mm 1260
F.B. mm 1200
T-slot 　 28
The opening daylight mm 1250
Stroke of slider t 800
Ejection stroke mm/s 300
Pressure of medium Mpa 25
Descend speed mm 150
Pre-pressing speed mm/s 5/20
Working speed mm/s 2/7
Speed of opening mould mm/s 5/30
Stroke of slider mm/s 120
Slow ejection speed mm/s 5/30
Quick ejection speed mm/s 80
Frame type 　 Four-Column

Thermoset Compression Molding Press For SMC Fiberglass Covers Cellar
