Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling
Specifications
Brand Name :
Wanshida
Model Number :
Y83/T-63
Certification :
ISO9001,CE
Place of Origin :
Jiangsu,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
30 sets/month
Delivery Time :
30days
Packaging Details :
Sea Worthy
Product Name :
Hydraulic Metal Baler
Model :
Y83/T-63
Nominal Force(KN) :
630
Motor Power :
7.5 kW
Bale Section :
200 × 200 mm
Press Chamber Size (L×W×H) :
1000 × 600 × 500 mm
Operation Mode :
Manual valve control
Bale Discharge :
Horizontal push-out
Description
Y83/T-63 Hydraulic Metal Baler 63-Ton Press Force 200×200 mm Bale for Light Metal Scrap Recycling

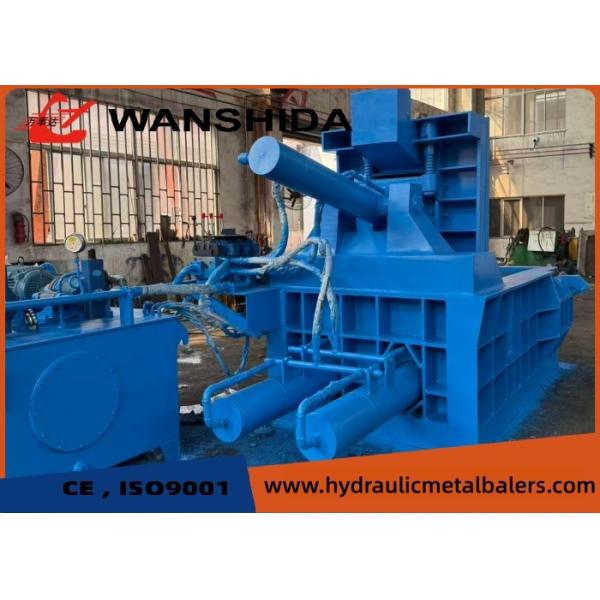

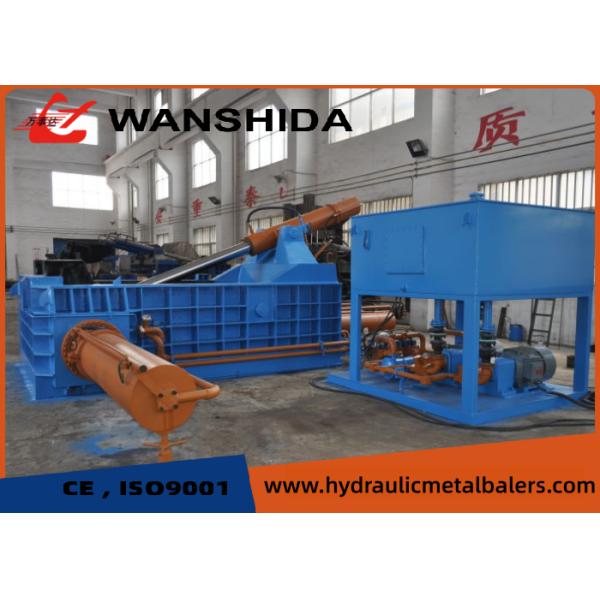

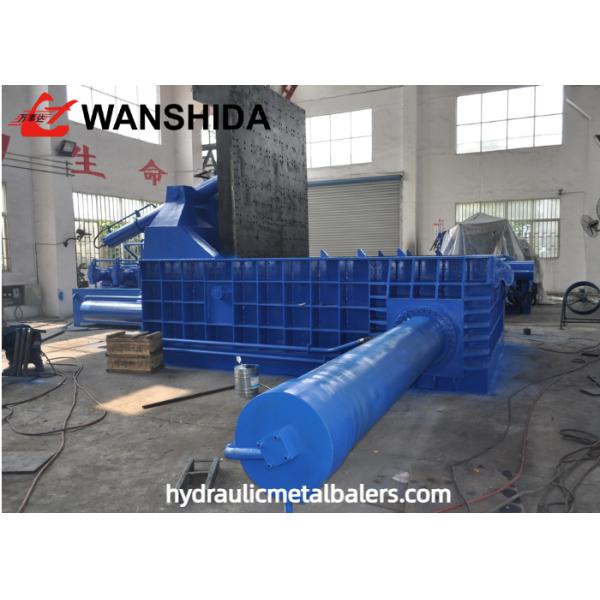

The Y83/T-63 Hydraulic Metal Baler is a compact hydraulic press designed for light metal scrap recycling and workshop-level scrap volume reduction.
With a 630 kN (63-ton) nominal pressing force and a standard 200×200 mm bale section, this machine efficiently compresses loose metal scrap into dense, stackable bales, improving storage efficiency and material handling.

This model adopts a horizontal push-out bale discharge structure, ensuring simple mechanical design, stable operation, and low maintenance cost.
Thanks to its compact chamber size and low installed power, the Y83/T-63 is especially suitable for facilities that require reliable metal baling without high energy consumption or complex automation systems.

Technical Parameters
No. Model Nominal Force Bale section Power Operation


Y83/T-63 630kN/63t 1000*600*500mm 200*200mm 7.5kW Manual Valve Control
Key Features
  • Compact Structure for Limited Space
    The optimized frame layout and compact chamber design allow installation in workshops or recycling areas with restricted floor space.
  • Efficient Compression for Light Scrap
    A 63-ton hydraulic force provides sufficient pressure to compact light steel scrap, aluminum offcuts, and mixed sheet metal waste into dense bales.
  • Stable Push-Out Discharge System
    The horizontal push-out mechanism ensures controlled bale unloading with minimal mechanical complexity and reduced failure points.
  • Low Power Consumption
    Equipped with a 7.5 kW motor, the machine delivers stable performance while keeping electricity consumption at a low level.
  • Simple Manual Control
    Manual valve operation provides intuitive control, easy operator training, and straightforward maintenance.
Frequently Asked Questions (FAQ)
  • Q1: What type of scrap is this model best suited for?

    This baler is designed for light to medium-density metal scrap such as steel offcuts, aluminum scrap, copper scrap, and sheet metal waste.

    Q2: Is the Y83/T-63 suitable for continuous daily operation?

    Yes. The reinforced structure and stable hydraulic system allow continuous operation within its designed capacity.

    Q3: How does the push-out bale discharge work?

    After compression, the bale is pushed out horizontally by a hydraulic cylinder, allowing smooth and controlled unloading.

    Q4: Is automation available on this model?

    The standard configuration uses manual valve control. Semi-automatic or PLC-assisted options may be available upon request.

    Q5: Can the chamber or bale size be customized?

    The standard bale section is 200×200 mm. Chamber and bale dimensions can be customized depending on material type and production requirements.

Application Fields

  • The Y83/T-63 Hydraulic Metal Baler is suitable for processing:

    • Light steel scrap and sheet metal offcuts

    • Aluminum scrap and profiles

    • Copper and non-ferrous metal residues

    • Small fabrication waste from workshops and factories

    It is commonly used in metal workshops, fabrication plants, and small to medium recycling facilities.

    Quality & Service

    • Manufactured under strict internal quality control procedures

    • One-year warranty for the complete machine

    • Long-term technical support and spare parts supply
