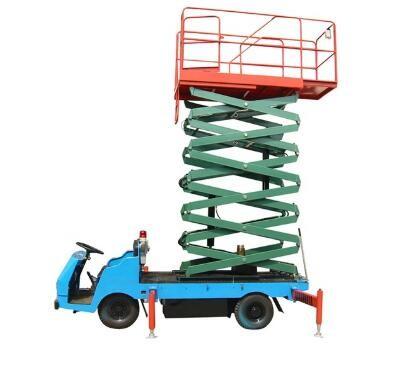

6M 450kg Portable Pneumatic Truck Mounted Scissor Lift

Quick Detail:

Description:

Truck-mounted Scissor Lifts are aerial working platform which combine with an automobile, the lifts are driven by DC or the engines of the vehicle The lifting platform is movable everywhere due to the vehicle can be driven as wishes. It is suitable for the aerial working for long distance and the frequently changing places.

The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.

Main Features:

• Power by the vehicle or battery , without the external power supply
• The control panels are available both on the platform and the pedestal
• Different models are available with the maximum working height at 6m to 16m
• Pointing control of lifting up and down.
• Manganese steel lifting arm in high strength with rectangle shape
• Anti-skid floor in platform
• The control panels are available on the platforms and ground.

Safety Precaution:

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform

Major Parameters:

• Model: SJDC0.45-6
• Loading Capacity 450kg
• Maximum Platform Height 6000mm
• Minimum Height 950mm
• Platform Size 1850*880mm
• Lifting Power 1.1kw
• Power Voltage 1phase/220V/50HZ
• Lifting Time 54s
• Cylinder Ф80(2Pcs)
• Gear Pump 6ml/r

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning , light replacement etc.

Why to choose our Truck-mounted Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
