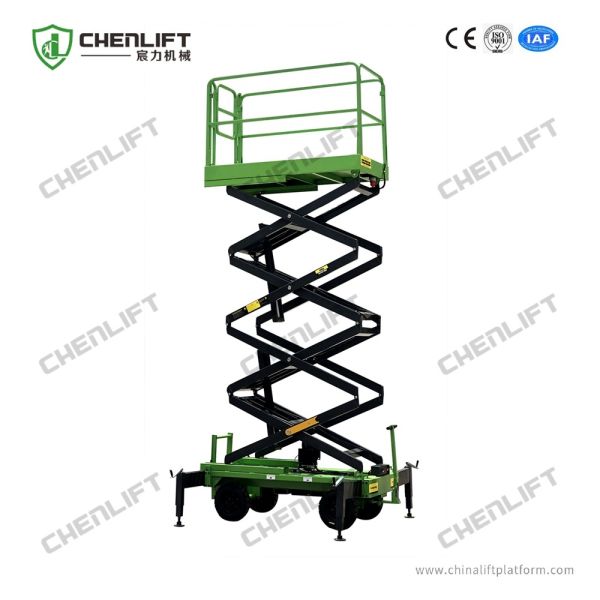

6 Meters Semi-Electric Mobile Scissor Lift Man Lifts in Green 1 Ton Capacity

Parameter:

Description:

Semi-Electric mobile scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.

This mobile scissor lift is easy to use. The control panels are available on the platforms and ground.

They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.

The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.

Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti skid floor in platform
4. The control panels are available on the platforms and ground
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails
7. Battery and battery charger in bulit
8. Optional extension platform

Major Parameters:

• Model: MK600T
• Loading Capacity 1000kg
• Maximum Platform Height 6000mm
• Maximum Working Height 8000mm
• Platform Size 1800*1000mm
• Lifting Power 2.2kw
• Power Voltage AC380V
• Lifting Time 80s
• Total Weight 950Kg
• Overall Size 1850*1240*1100mm

Configurations:

· Electric system: Schneider contactor, SANLICO button, CHNT electrical

· Hydraulic System: Hycman brand power pack, sealing

· Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B

· Platform Surface: Anti-skid checkered plate

· Tyre: 6inch and 8inch

· High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Safety Precautions​:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary lowering device
4. Hose burst valve safety
5. Rain-proof design electirc cabinet
6. Fold-able fence on the platform
7. Outrigger on the chassis for more stability​

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
