Specifications
Brand Name :
CHEN LIFT
Model Number :
MX1200S
Certification :
CE ISO9001:2008 IPAF member
Place of Origin :
Original of China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 units/ month
Delivery Time :
30 day after receipt of deposit

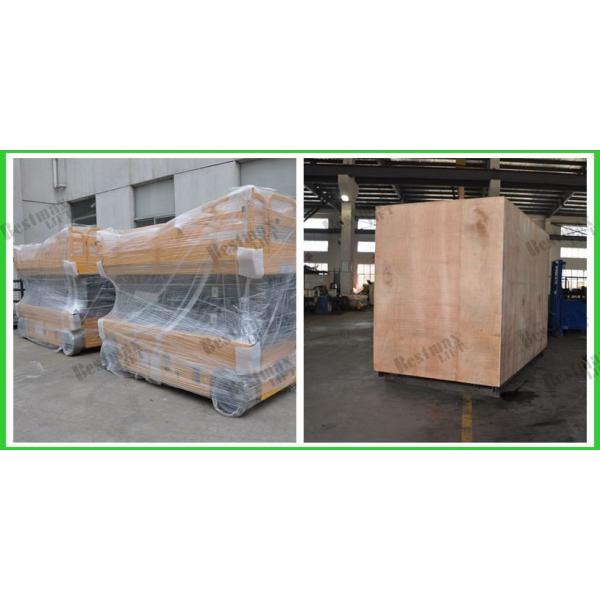

Packaging Details :
Wrapped in pallets/ wooden case
Loading Capacity :
230Kg
Platform size :
2.27*1.12m
Platform Height :
11.8m
Working Height :
13.8m
Exension load capacity :
113kg
Extension Length :
0.90m
Lift/Drive Motor :
24V/3.3kw
Overall Size :
2.43* 1.15*2.03m
Weight :
2820kg
Description

14m Working Height CE Certified Self Propelled Scissor Lift with 230kg Load Capacity

Description:

1. Self propelled scissor lift, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.

2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk, easily moved, spacious working platforms, high working efficiency.

3. Scissor lift can be move while extended and controlled from platform by the operator.

4. Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site, elevator, and narrow corridor. Lift-down, turning, forward and backward movements can be easily operated by one person.

Specification
Model MX580S MX600SN MX800SN MX800S MX1000S MX1200S
Load 230 kg 230 kg 230 kg 450 kg 320 kg 230 kg
Extension Load 113 kg 113 kg 113 kg 113 kg 113 kg 113 kg
Platform Height 5.8 m 6 m 8 m 8 m 10 m 11.8 m
Working Height 7.8 m 8 m 10 m 10 m 12 m 13.8 m
Platform Size 1.67*0.74m 2.27*0.81m 2.27*0.81m 2.27*1.12m 2.27*1.12m 2.27*1.12m
Platform Extension Length 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m
Lift/Drive Motor 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/4.5 kw

Standard Configuration:

proportional control Auto-brake system

Auto-lock door on platform Extension Platform

Drivable when lifted Traceless tire

4 x 2 Driving Auxiliary lowering device

Emergency stop button Horn

Fault diagnosis system Tilting protection system

Action buzzer Time Recorder

Supporting bar Fork Lift Slot

Charging protection system strobe light

Detachable fence Automatic pothole protection

Optional Configuration:

  • Overload protection sensor with alarm
  • DC Power connection to the platform
  • Working light on the platform
  • Airway tube to the platform

14m Working Height CE Certified Self Propelled Scissor Lift With 230kg Load Capacity

14m Working Height CE Certified Self Propelled Scissor Lift With 230kg Load Capacity14m Working Height CE Certified Self Propelled Scissor Lift With 230kg Load Capacity

Why choose Our Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.

Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
