Specifications
Brand Name :
CHEN LIFT
Model Number :
MX580S
Certification :
CE ISO9001:2008 IPAF member
Place of Origin :
Original of China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets/ month
Delivery Time :
30 day after receipt of deposit
Packaging Details :
Wrapped in pallets/ wooden case
Model :
MX580S
Lift capacity :
230kg
Platform size :
1.64*0.75m
Extension Loading :
113kg
Total Weight :
1470kg
Material :
Q345 Steel
Driving :
Hydraulic motor
Description

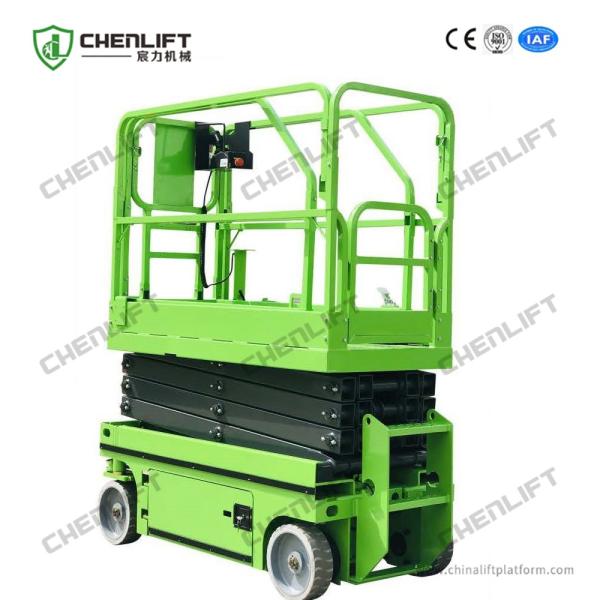

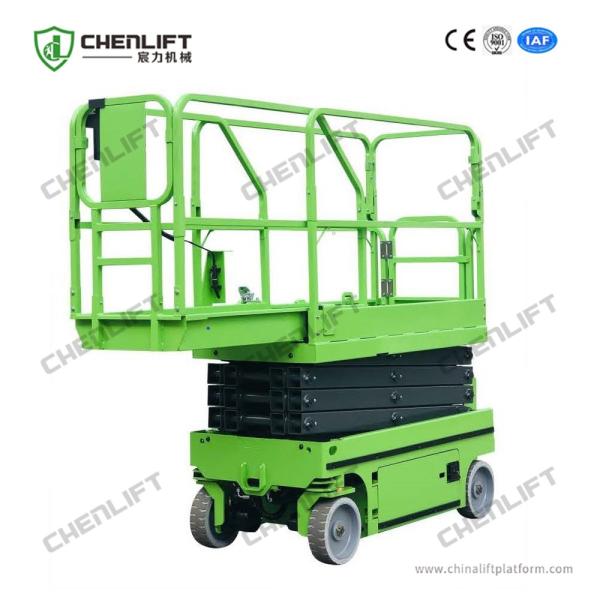

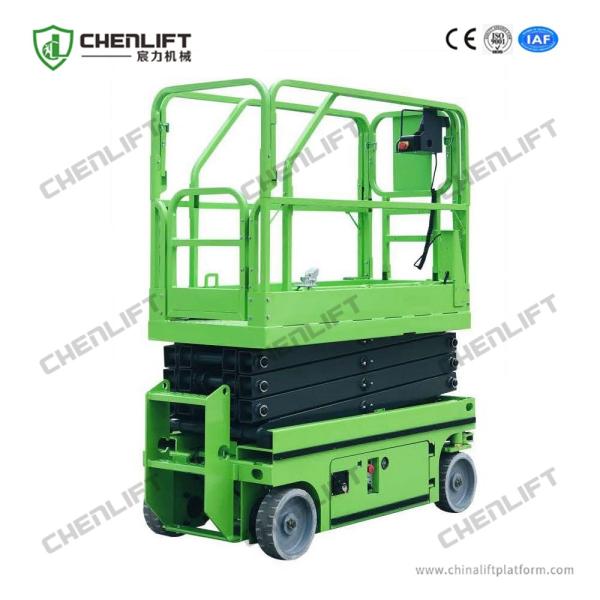

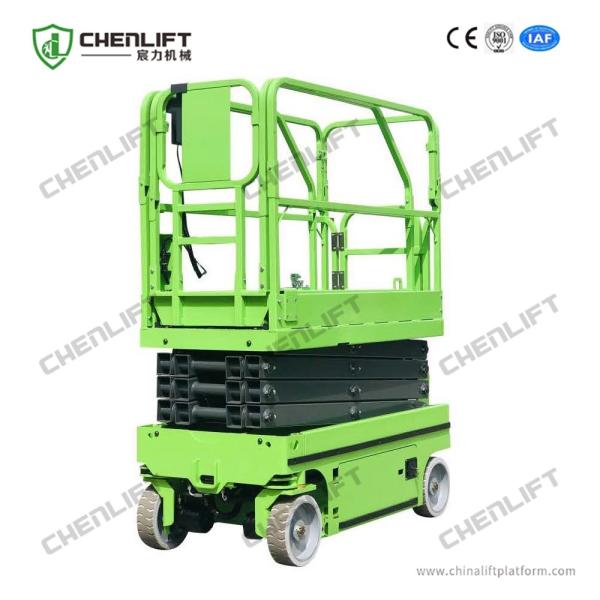

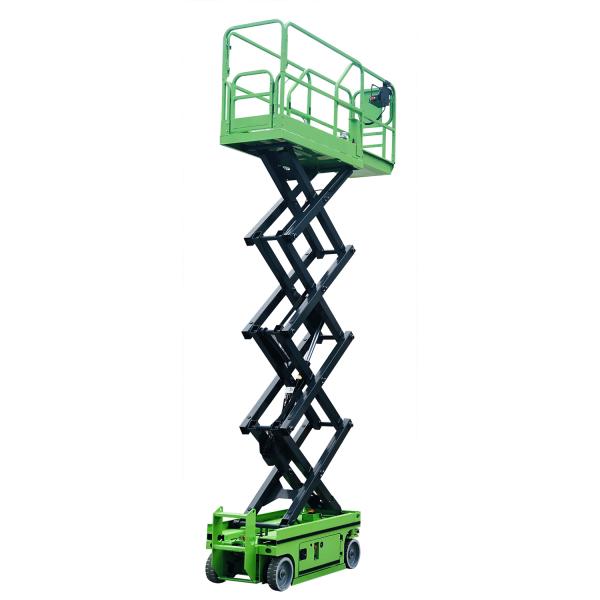

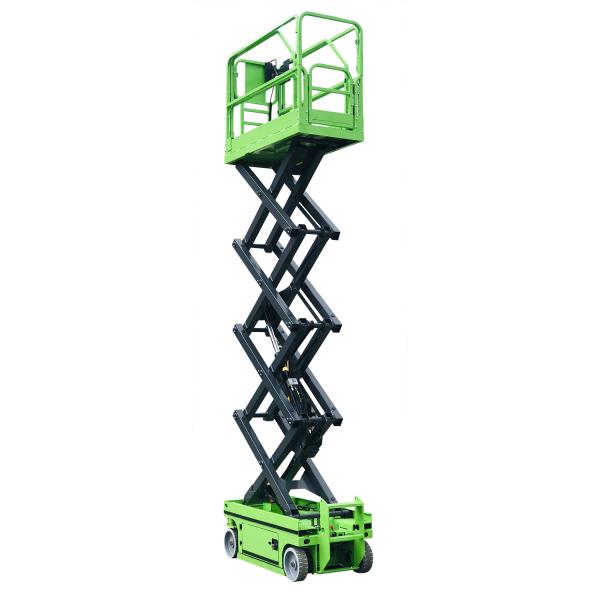

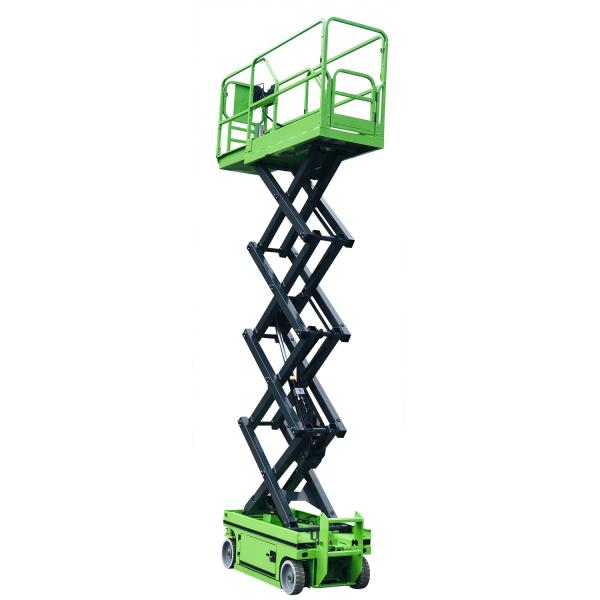

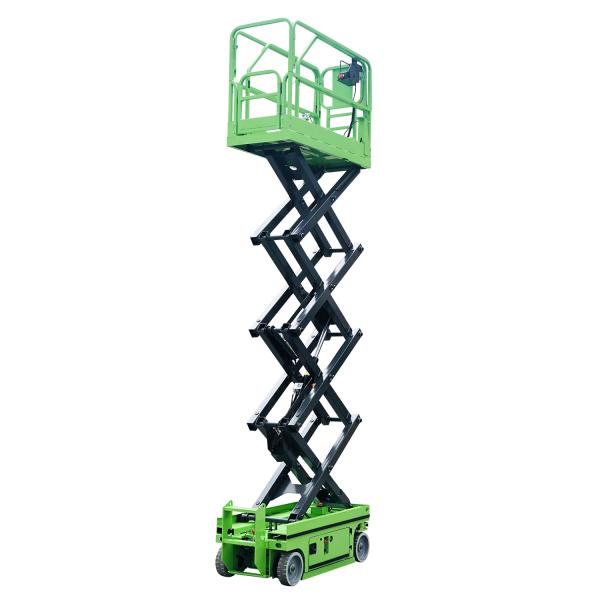

5.8 Meters Lifting Height Self Propelled Scissor Lift Aerial Work Platform

Description:

Self propelled scissor lift, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.

Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk, easily moved, spacious working platforms, high working efficiency.

Scissor lift can be move while extended and controlled from platform by the operator.

Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor. Lift-down, turning, forward and backward movements can be easily operated by one person.

Parameters

Model

MX580S

Load capacity

230kg

Extension load capacity

113kg

Max Worker number

2

Working height

7.8m

Platform floor height

5.8m

Measurement

 1.83*0.81*1.71m

Extension platform size

1.64*0.75m

Ground clearance(stowed)

0.1m

Ground clearance(raised)

0.019m
Wheel base 1.36m

Turning Radius(inside)

0m

Turning Radius(outside)

1.64m
Lifting / drive motor 24V/3.3kW
Travelling speed(stowed) 3.0km/h
Travelling speed(raised) 1.0km/h
Lifting/ lowering speed 18/22 sec
Batteries 4*6V/225Ah
Charger 24V/ 30A
Gradeability 25%
Max working slope 1.5°/3°
Tyre Size 305*100
Weight 1470kg

All Specification

Model MX580S MX600SN MX800SN MX800S MX1000S MX1200S
Load 230 kg 230 kg 230 kg 450 kg 320 kg 230 kg
Extension Load 113 kg 113 kg 113 kg 113 kg 113 kg 113 kg
Platform Height 5.8 m 6 m 8 m 8 m 10 m 11.8 m
Working Height 7.8 m 8 m 10 m 10 m 12 m 13.8 m
Platform Size 1.67*0.74m 2.27*0.81m 2.27*0.81m 2.27*1.12m 2.27*1.12m 2.27*1.12m
Platform Extension Length 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m
Lift/Drive Motor 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/4.5 kw

Safety Precaution

  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Pothole Protection
  • Automatic Braking System
  • Buzzer and Horn

Why choose CHEN LIFT Lift Self Propelled Scissor Lift?

· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty

Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
