Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Specifications
Brand Name :
CHENLIFT
Model Number :
MX1000S
Certification :
CE ISO9001:2008 IPAF member
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
30 sets per month
Delivery Time :
30days after the down payment
Packaging Details :
Packed with Pallet, Wrapped with Film
Paint :
Powder Coating
Platform height :
10m
Working height :
12m
Loading capacity :
320kg
Platform size :
2.27*1.12m
Lift/Drive Motor :
24V/ 3.3kw

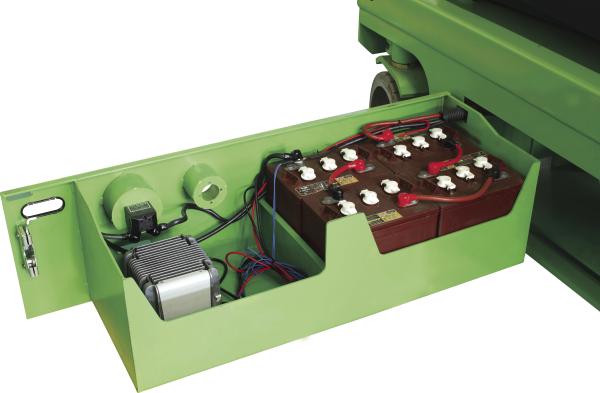

Power source :
4*6V/225Ah
Weight :
2750kg
Description

10m Self-propelled Scissor Lift with Hydrauli Motor Driving

Quick Detail:

Name

Fully Electrical Scissor Lift

Model

MX1000S

Loading Capacity

320Kg

Platform Height

10m

Ground clearance (m)

0.1

Extension Length

0.9m

Maximum Working Numbers

2 person

Extension Loading

113Kg

Moving Power

3.3Kw

Maximum Working Slope

2°/3°

Description:

This machine is used to lift people to the high places to work with hydraulic motor driving. Unlike an articulating lift that offers a degree of horizontal outreach, electric scissor lifts are a flat platform that travels straight up and down.

Main Features:

1. The structure of this machine is made up of high strength rectangular Manganese steel.

2. When you stop pressing the button, it will stop lifting/ descending.

3. The platform surface is anti-skid to ensure the safety of the workers.

4. Good sealing performance oil cylinders

5. Folding fence to let the machine pass height-restrict space

6. No need of outriggers, so that it can work in narrow space

Main Configurations

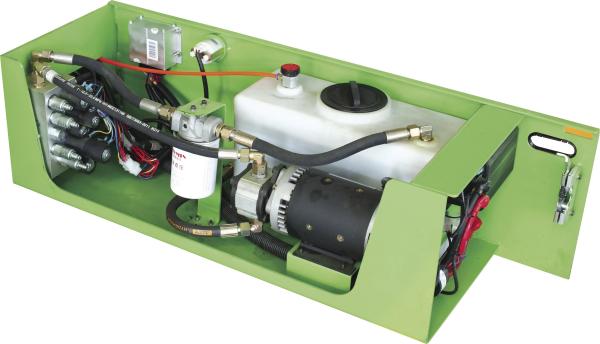

  1. Hydraulic Motor Driving

  2. Extension Platform

  3. Buzzer & Strobe Light

  4. Fork Lift Slots

Optional Configuration:

  • Over Load Protection Sensor Alarm

  • Working Light on the Platform

  • Airway Tube to the Platform

Applications:

Working Site: Library, Airport, Coach Station, Metro and Supermarket.
