Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Portable Manual Material Lift with Manual One Speed Winch
Specifications
Place of Origin :
China
Brand Name :
CHENLIFT
Model Number :
SLA
MOQ :
1
Price :
Negotiable
Packaging Details :
Wrapped in pallet or in wooden case
Delivery Time :
30day after down payment
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Certification :
CE
Description

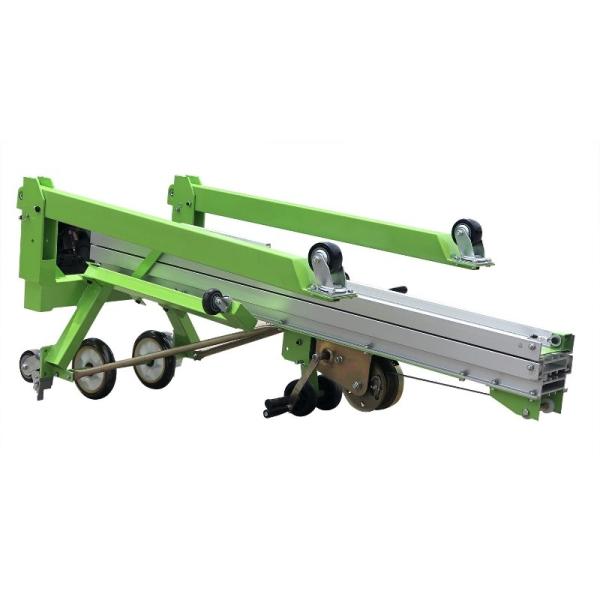

Manual Alloy Material Aluminum Lift

This material lift is a (no power) manually operated machine, it is designed into compact, lightweight structure, so it can be easily through standard doorway. The Material lift platform can be widely used in the construction, industry, storage, exhibition, stage construction, the advertising industry, central- air conditioning.

Advantages


Easy to operate
The material lift can be operated by one person for lifting and moving the goods.
Multiple optional parts
The material lift can be equipped with multiple forks and the lighthouse device (used for emergency lighting and other uses)

Lowest stowed height

The stowed height of the materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.

Specification

Model SLA-5 SLA-10 SLA-15 SLA-20 SLA-25
Standard forks-down 1.49 m 2.97 m 4.46 m 5.94 m 7.42 m
Standard forks-up 2 m 3.49 m 4.98 m 6.46 m 7.94 m
Flat forks 1.49 m 2.97 m 4.46 m --- ---
Load platform
Forks down		 1.49 m 2.97 m 4.46 m 5.94 m 7.42 m
Load platform
Forks up		 2 m 3.49 m 4.98 m 6.46 m 7.94 m
Stowed Size
(H* L*W)		 1.99* 0.74* 0.8 m 1.99* 0.74* 0.8 m 1.99* 0.74* 0.8 m 1.99* 0.74* 0.8 m 1.99* 0.79* 0.8 m
Working Length 1.51 m 1.51 m 1.88 m 2.08 m 2.08 m
Ground clearance-center 0.05 m 0.05 m 0.05 m 0.05 m 0.05 m
Load Height Minimum 0.15 m 0.15 m 0.15 m 0.15 m 0.15 m
Load Capacity
18 in (46cm) load center 454 kg 454 kg 363 kg 363 kg 295 kg
24 in (61cm) load center 454 kg 454 kg 363 kg 272 kg 204 kg
42 in (107cm) load center 159 kg 181 kg 227 kg 159 kg 113 kg
Weight
Weight 98 kg 118 kg 151 kg 184 kg 204 kg

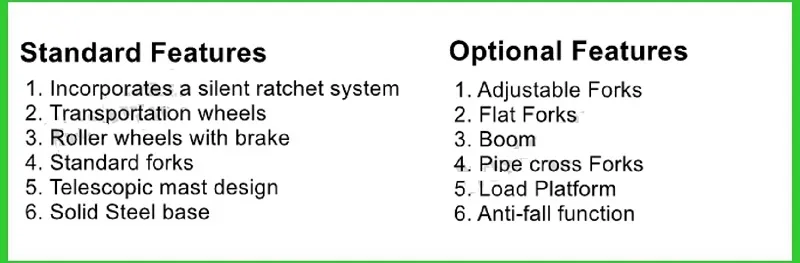

Features
Portable Manual Material Lift with Manual One Speed Winch

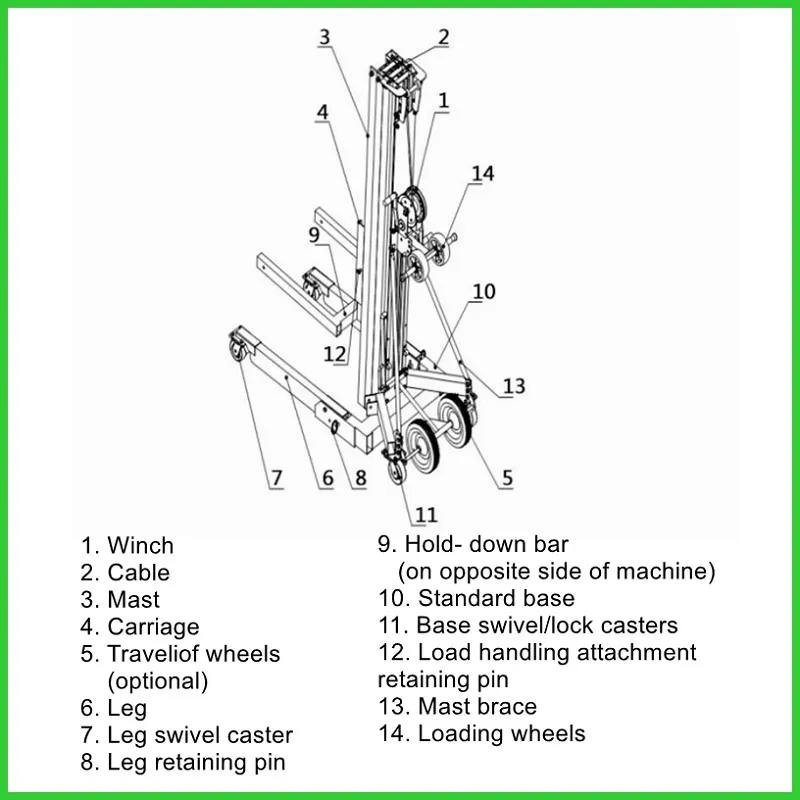

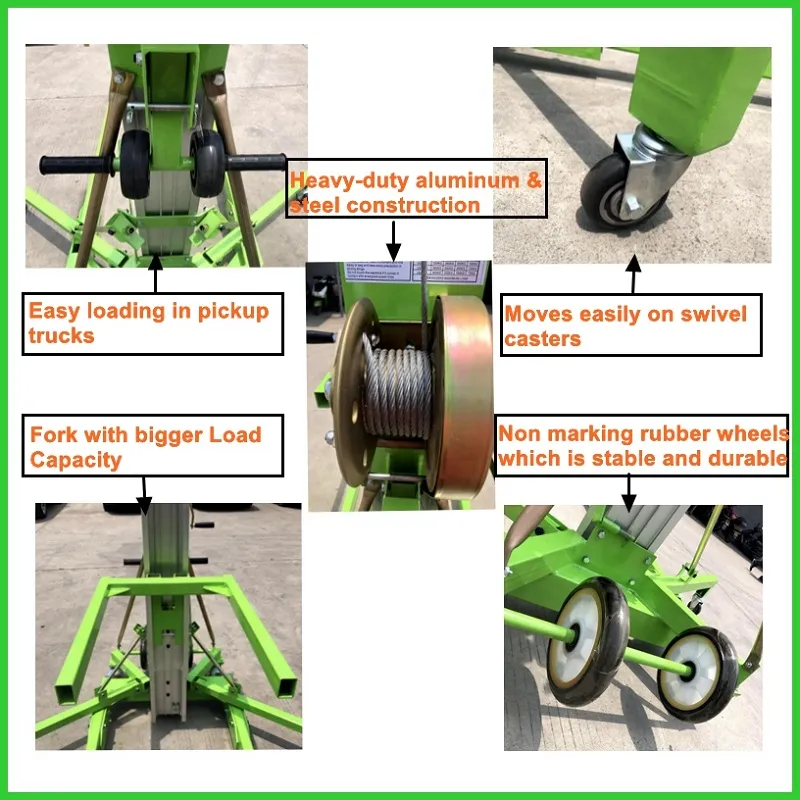

Product Details
Portable Manual Material Lift with Manual One Speed Winch

Portable Manual Material Lift with Manual One Speed Winch

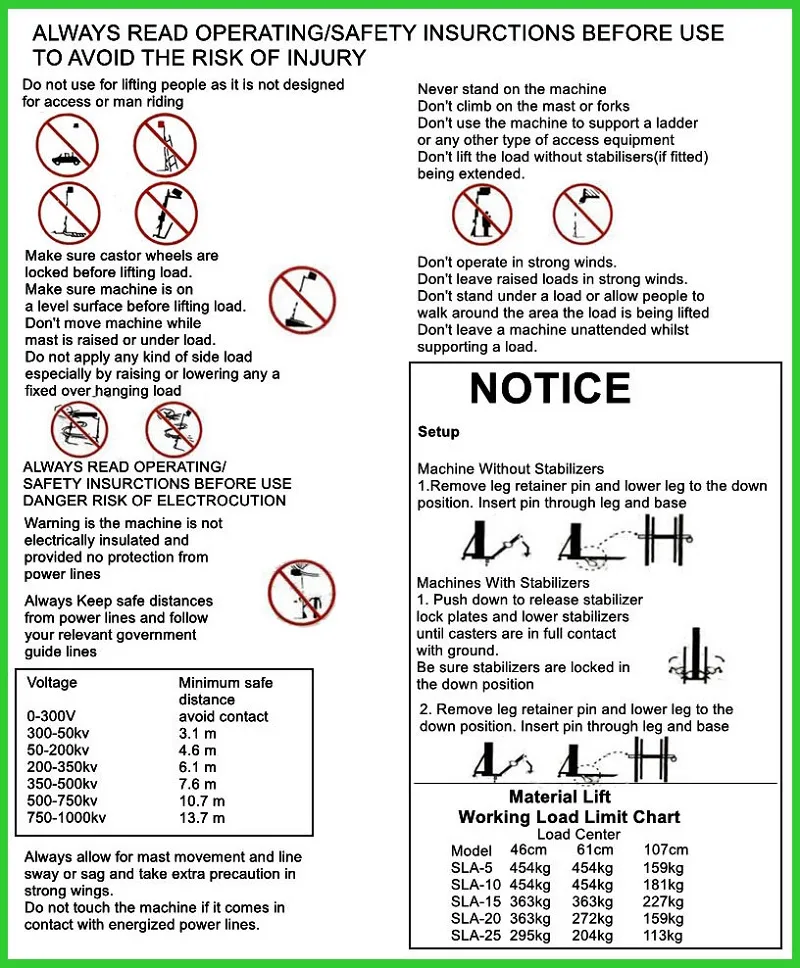

Operation

Portable Manual Material Lift with Manual One Speed Winch
