YD12-001 12T Pipe Bender Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

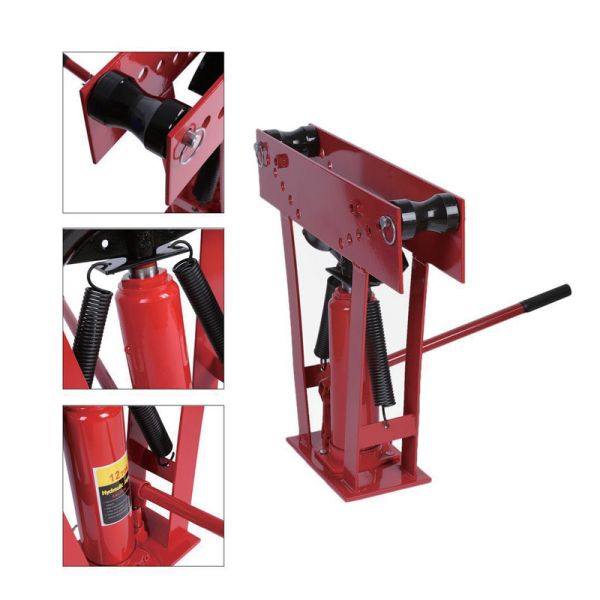

1. 12-Ton High Pressure Output, Easy Bending of Thick-Walled Pipes
   The equipment is equipped with a high-strength pressure system, with a rated output pressure of 12 tons, enabling wrinkle-free bending of thick-walled pipes (e.g., 2" aluminium pipes with 5mm wall thickness, 1" steel pipes with 3mm wall thickness):

• High Pressure for Multiple Materials: For hard-to-bend materials such as heavy-gauge galvanised pipes (commonly used in building water and electricity) and high-hardness steel pipes (industrial equipment pipelines), the 12-ton pressure acts evenly on the outer wall of the pipe, avoiding problems such as "pipe breakage and cracks" caused by traditional manual pipe benders, with a pipe bending qualification rate of over 98%.
• Stable Pressure Without Attenuation: The pressure system adopts a sealed hydraulic structure (for some models) or gear-driven pressure boosting (depending on the model). After 20 consecutive bending cycles, the pressure attenuation is ≤5%, ensuring the consistency of bending angles for pipes of the same batch and reducing subsequent installation errors.

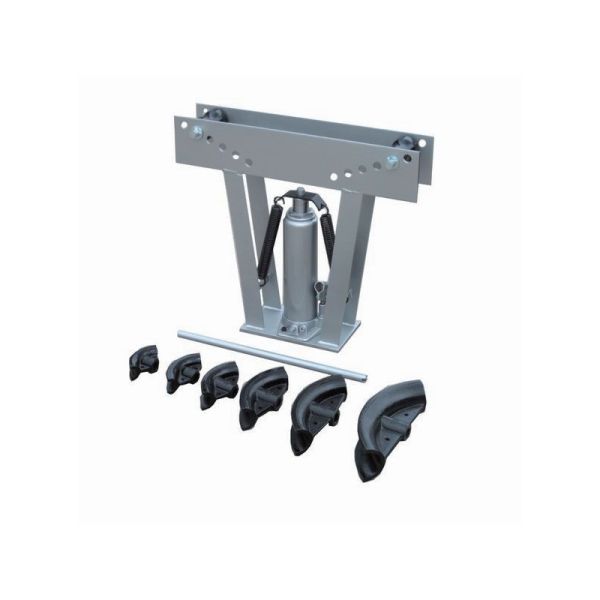

2. 6 Sets of Precision-Cast Dies, Covering Multiple Pipe Diameters
   Equipped with 6 sets of precision-cast alloy steel dies, covering common pipe diameters from 1/2" to 2", meeting multi-scenario needs:

• Precision Fit Without Gap: The inner hole accuracy of the die reaches ±0.1mm, fitting closely with pipes of the corresponding diameter. No "offset or wrinkling" occurs during bending. For example, when bending a 1" steel pipe, the roundness retention rate at the bending angle is ≥90%, meeting industrial pipe installation standards.
• Quick Disassembly and Replacement: The dies are connected to the workbench via a snap-on structure, requiring no tools for replacement. Disassembly and assembly can be completed with one hand, and switching from a 1/2" die to a 2" die takes only 30 seconds. Compared with traditional bolt-fixed dies, the die replacement efficiency is increased by 3 times. The dies are equipped with dedicated storage slots to prevent loss, adapting to the "alternating work with multiple pipe diameters" scenario.

3. 90° Adjustable Bending Angle + 127mm Long Stroke, Strong Scenario Adaptability

• Flexible Multi-Angle Adjustment: The bending angle can be set arbitrarily between 0° and 90°, and locked via the scale dial (accuracy ±1°) on the side of the workbench. For example, when a 45° angle is required for building water and electricity installation or a 60° angle for automotive modification, simply turn the adjustment knob to fix the angle, eliminating the need for repeated test bending and increasing operation efficiency by 50%.
• Long Stroke for Deep Bending: The 127mm ram stroke can cover the full-circumference bending of large-diameter pipes (e.g., 2" aluminium pipes), avoiding "incomplete bending angles and pipe jamming" caused by insufficient stroke, adapting to the "deep bending of thick-walled large-diameter pipes" demand.

4. Lightweight Design + Anti-Slip Details, Safe and Convenient Operation

• 36kg Lightweight for Easy Movement: With an equipment weight of only 36kg, it can be carried by an adult male alone, with no pressure to move from the warehouse to the construction workstation (20-meter distance). Compared with heavy pipe benders of the same tonnage (mostly over 50kg), the mobility is increased by 40%, adapting to "outdoor temporary construction and multi-station rotation" scenarios.
• Anti-Slip for Safety: The operating handle is equipped with an anti-slip rubber cover (friction coefficient ≥0.8), preventing slipping even if hands are stained with oil; the bottom of the machine body is equipped with 4 anti-slip foot pads, ensuring the equipment does not shift during bending and avoiding bending angle deviations caused by shaking, thus ensuring operation safety.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Building Water and Electricity Pipe Installation
   A decoration company conducts water and electricity transformation for an office building, requiring 100 1" heavy-gauge galvanised pipes to be bent at 45° for wall pipe laying. Workers use the YD12-001: Install the 1" precision die, adjust the bending angle to 45°, and the 12-ton pressure easily bends the galvanised pipes without wrinkles at the bending angle; the 36kg lightweight body can be moved between different floors according to the construction progress. The bending time for a single pipe is shortened from 5 minutes to 2 minutes, and 100 pipes are completed in only 3.5 hours, adapting to the "batch galvanised pipe bending" scenario.
2. Industrial Equipment Pipeline Maintenance
   A machinery factory repairs the cooling water pipe (1-1/2" steel pipe with 3mm wall thickness) of a 50-ton CNC machine tool, requiring the straight pipe to be bent at 90° to fit the equipment interface. Maintenance personnel use the YD12-001: Replace with the 1-1/2" die, set the bending angle to 90°, and after starting the equipment, the 12-ton pressure acts evenly on the steel pipe, completing one bending cycle in 20 seconds; the bending angle accuracy reaches ±1°, perfectly matching the equipment interface during installation without secondary adjustment, adapting to the "precision maintenance of industrial steel pipes" scenario.
3. Automotive Modification Pipeline Adaptation
   An automotive modification shop modifies the oil cooling pipeline (2" aluminium thick-walled pipe with 4mm wall thickness) for an off-road vehicle, requiring it to be bent at 60° to avoid chassis components. Technicians use the YD12-001: Install the dedicated die for 2" aluminium pipes, adjust the bending angle to 60°, and the 12-ton pressure acts on the aluminium pipe slowly to avoid cracking caused by excessive pressure; the roundness retention rate of the bent aluminium pipe is 92%, which does not affect the oil flow rate, adapting to the "precision bending of thick-walled aluminium pipes" scenario.
4. Home Decoration Water and Electricity Transformation
   A home decoration worker conducts kitchen water and electricity transformation for a commercial house, requiring 30 1/2" and 3/4" pipes (including PPR pipes and thin-walled steel pipes) to be bent at different angles. The YD12-001 is used: Quickly replace the corresponding die according to the pipe diameter, completing one die replacement in 30 seconds. Both the 1/2" pipe bent at 30° and the 3/4" pipe bent at 45° are accurately positioned; the equipment can be operated in the narrow kitchen space without large-scale equipment, adapting to the "multi-diameter work in small home decoration spaces" scenario.

IV. Frequently Asked Questions (FAQ)

Q1: Will using a 2" die to bend a steel pipe with 6mm wall thickness damage the die?

Q2: With a weight of 36kg, can female workers carry it alone from the warehouse to the construction workstation 25 meters away?

Q3: Wrinkles appear on the pipe during bending. What is the reason and how to solve it?

Q4: After 1 year of use, the bending angle accuracy decreases (deviation up to 5°). How to calibrate it?
