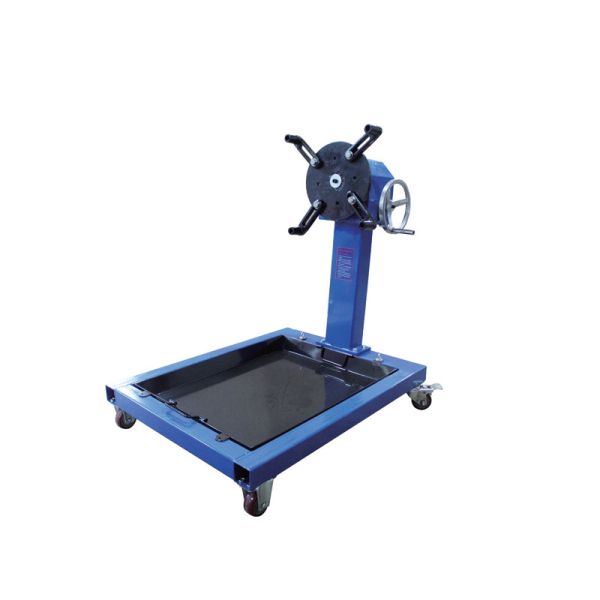

YD04-006 300kg Engine Stand with Oil Drip Tray Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 300kg High Load-Bearing + High-Grade Steel Structure, Stable Support for Small and Medium-Sized Components:The heavy-gauge tubular frame is made of Q235 low-carbon steel, with the main frame tube thickness of 4mm. The welded joints are fully welded, reinforced and polished, with a tensile strength of 375MPa. The maximum deformation of the frame is only 0.2mm under 300kg rated load, which can stably support 4-cylinder family car engines (about 150-250kg), light SUV 6-cylinder engines (about 250-300kg) and small transmissions (about 100-200kg); compared with ordinary stamping frames, the bending resistance is increased by 50%, no structural loosening during long-term use, and the service life is more than 8 years.
2. 680×520mm Oil Drip Tray, No Maintenance Cleaning Burden:Innovatively equipped with a large-capacity oil drip tray, with an area of 0.35㎡ (680×520mm) and a depth of about 50mm (referenced from similar products), which can hold more than 10L of waste oil — when disassembling the engine oil pan and replacing engine oil, the waste oil drips directly into the oil drip tray, avoiding pollution to the maintenance table and ground; the oil drip tray adopts a detachable design, which can be directly taken down to pour waste oil after maintenance, and reused after cleaning. Compared with traditional stands without oil drip trays, the subsequent cleaning time is reduced by 70%, especially suitable for maintenance scenarios with high cleaning requirements.
3. 360° Rotation + Gear Assistance, Labor-Saving Precise Angle Adjustment:The head supports 360° free rotation, combined with a gear-assisted adjustment mechanism, only 3kg thrust is needed to rotate a 300kg engine (10kg for ordinary stands), greatly reducing operating intensity; it can be accurately positioned to any maintenance angle (e.g., 30° tilt when disassembling valves, horizontal fixation when inspecting the timing chain), with an angle adjustment accuracy of ±1°, avoiding the problem of "rotation jamming and inaccurate positioning" of traditional stands, and maintenance efficiency is increased by 40%.
4. 4-Arm Adjustable + Industrial Castors, Multi-Adaptation and Easy Movement:The mounting head is equipped with 4 independent adjustable mounting arms, with an arm length adjustment range of 0-20cm. Each arm is equipped with multiple sets of bolt holes, which can be freely adapted according to the engine bolt hole positions (e.g., compatible with Toyota 1ZR-FE and Honda L15B engines), with an adaptation rate of more than 98%; the bottom is equipped with 4 industrial-grade steel castors (2 with brakes), the noise is ≤50 decibels when pushing, and it can be easily moved to any workstation in the maintenance workshop. After brake locking, the anti-slip coefficient is ≥0.9, with no sliding risk even when carrying fully loaded components.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Family Car Engine Maintenance in Auto Repair Shops:When repair shops perform engine maintenance for family cars (e.g., Toyota Corolla, Honda Civic), fix the engine on the stand, and the oil drip tray catches the waste oil generated during oil replacement to avoid polluting the workstation; rotate the 360° head to the horizontal angle, facilitating technicians to clean the oil pan and replace the oil filter. The 820mm center height is compatible with standing operations, no need to bend over, adapting to the needs of "efficient maintenance and clean operation".
2. Light SUV Engine Maintenance in Auto Maintenance Stores:When auto maintenance stores repair engines for light SUVs (e.g., Haval M6, Changan CS35), the 300kg load-bearing capacity fully covers the engine weight; rotate the engine to the upward cylinder block angle with gear assistance, the 4-arm adjustable mounting head is accurately fixed, and the oil drip tray collects waste oil and impurities generated during maintenance. After maintenance, only the oil drip tray needs to be cleaned, no large-area ground cleaning is required, adapting to the scenario of "precise maintenance and time-saving cleaning".
3. Power Component Maintenance in Motorcycle Repair Stations:When motorcycle repair stations maintain large-displacement motorcycle engines (e.g., Honda CB400 engine, about 120kg), the 300kg load-bearing margin of the stand is sufficient; the oil drip tray can catch waste oil and cleaning agents during maintenance, avoiding pollution to the motorcycle body; the 4-arm adjustable mounting head can reduce the spacing to adapt to the size of the motorcycle engine, and the castors are pushed to the maintenance table, facilitating technicians to disassemble and assemble components, adapting to the "motorcycle specialized maintenance" scenario.
4. Home Maintenance by Individual Auto Repair Enthusiasts:When individuals perform in-depth maintenance (e.g., cleaning engine carbon deposits, replacing water pumps) on their family cars, the 28kg lightweight design is convenient for single-person assembly; the oil drip tray avoids waste oil pollution to the garage ground, the 360° rotation can adjust the engine to waist height (about 950mm), no need to pad up or bend over, and the mounting arms can be fine-tuned to fix the engine, solving the pain point of "no professional cleaning tools for individual maintenance".

IV. Frequently Asked Questions (FAQ)

Q1:Can the 300kg load capacity adapt to a 280kg light SUV 6-cylinder engine?
